U6 Mesh Pro
U6 Mesh Pro
Integrated omni super antenna for extended range
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions

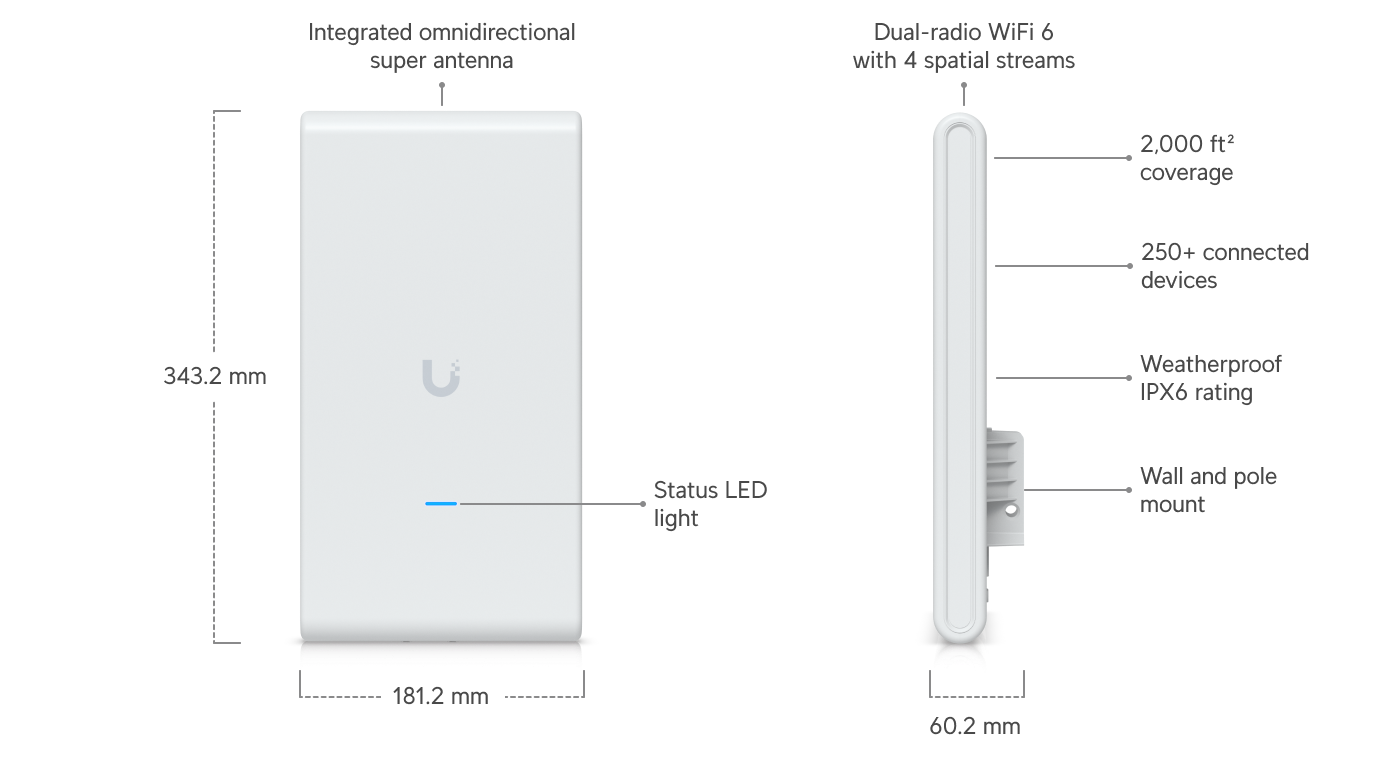

- 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
- WiFi Standard: WiFi 6
- Spatial Streams: 4
- Coverage Area: 185 m² (2,000 ft²)
- Max. Client Count: 250+
- Uplink: GbE
- Mounting: Wall, Pole (Mounts Included)
- Weatherproofing: IPX6
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 2.4 Gbps (BW160)
- 2.4 GHz: 573.5 Mbps (BW40)
- Antenna Gain
- 5 GHz: 8 dBi
- 2.4 GHz: 8 dBi
- Max. TX Power
- 5 GHz: 27 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features

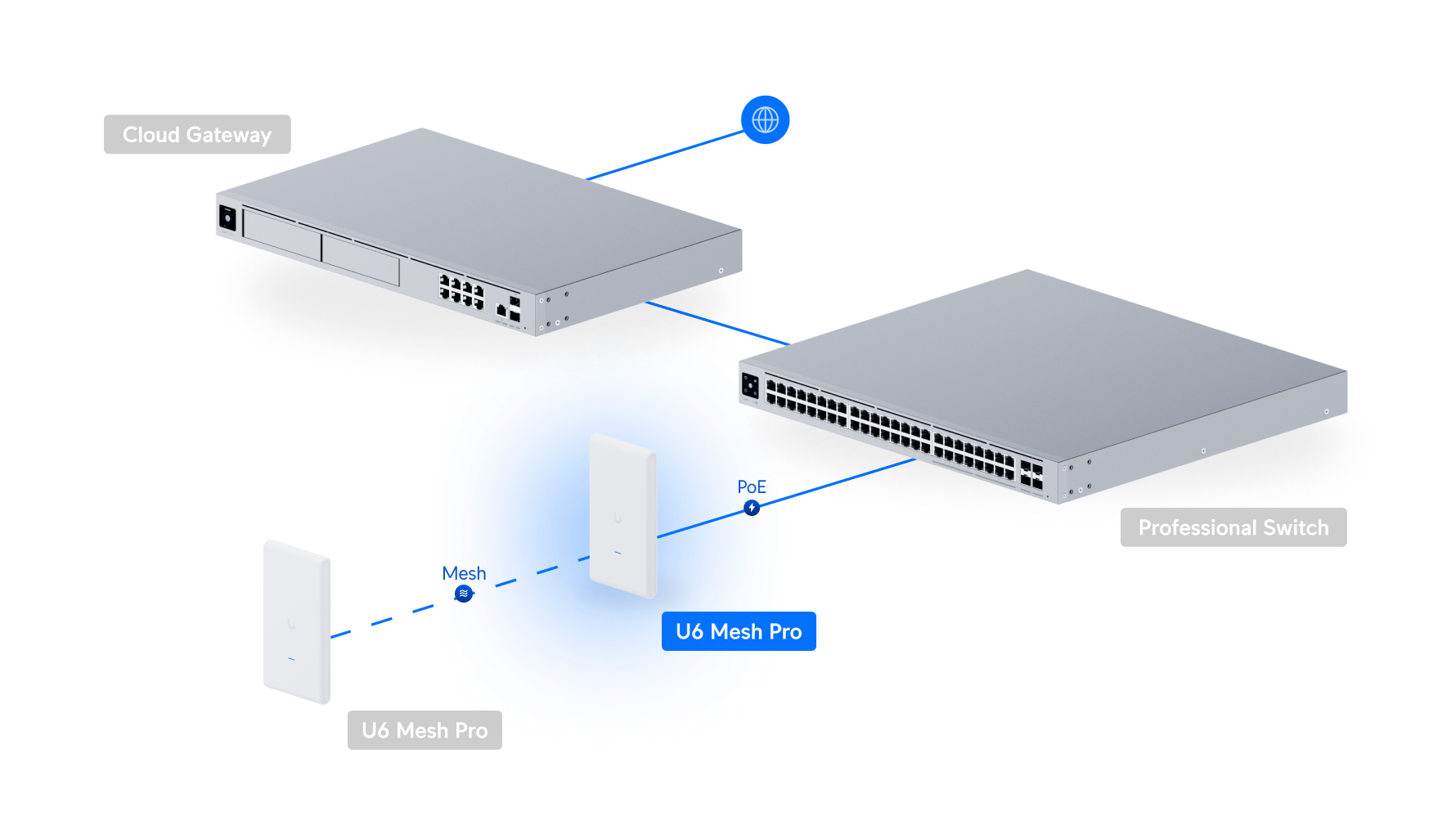

- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 9W
- Includes PoE Adapter: Yes
- Supported Voltage Range: 42.5–57V DC

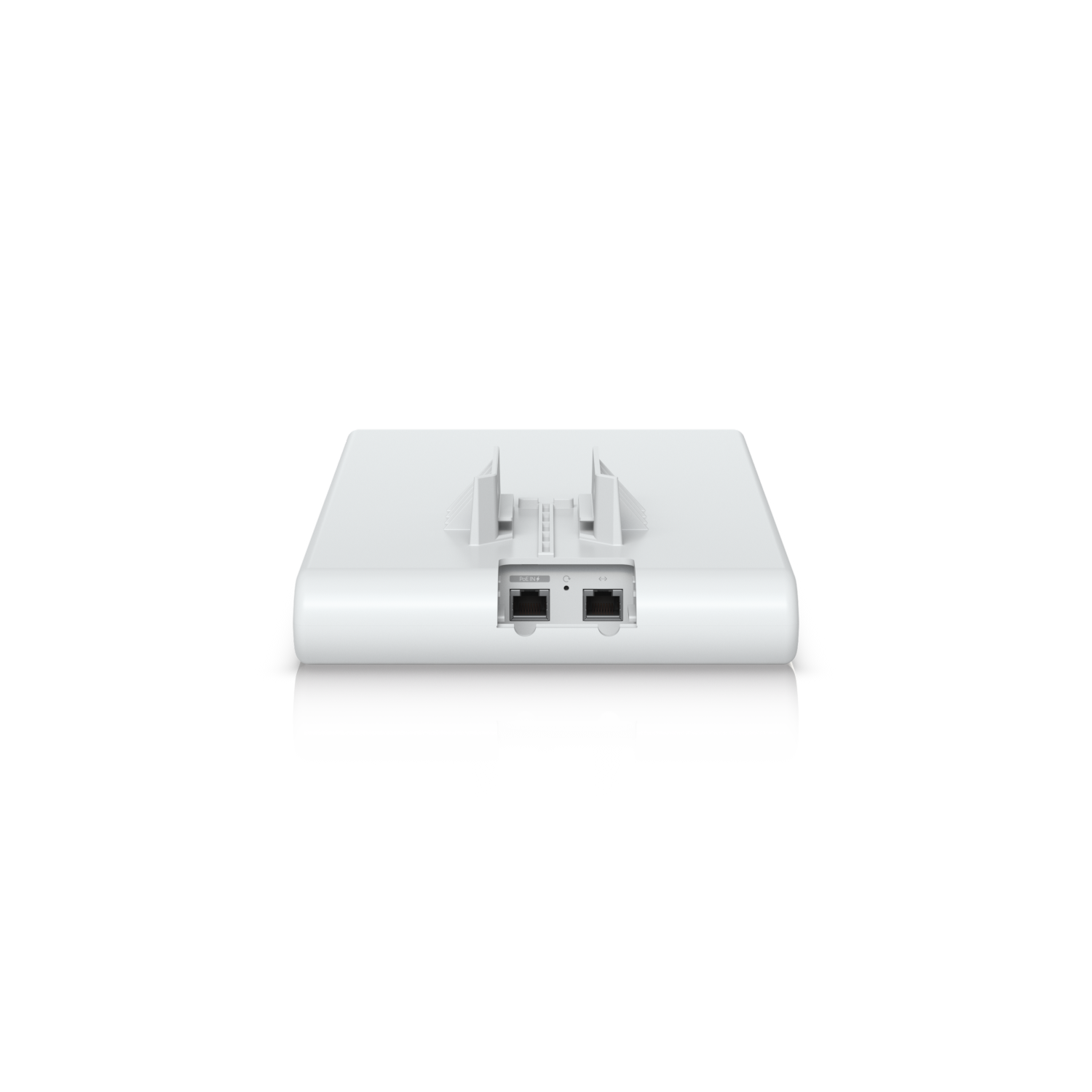

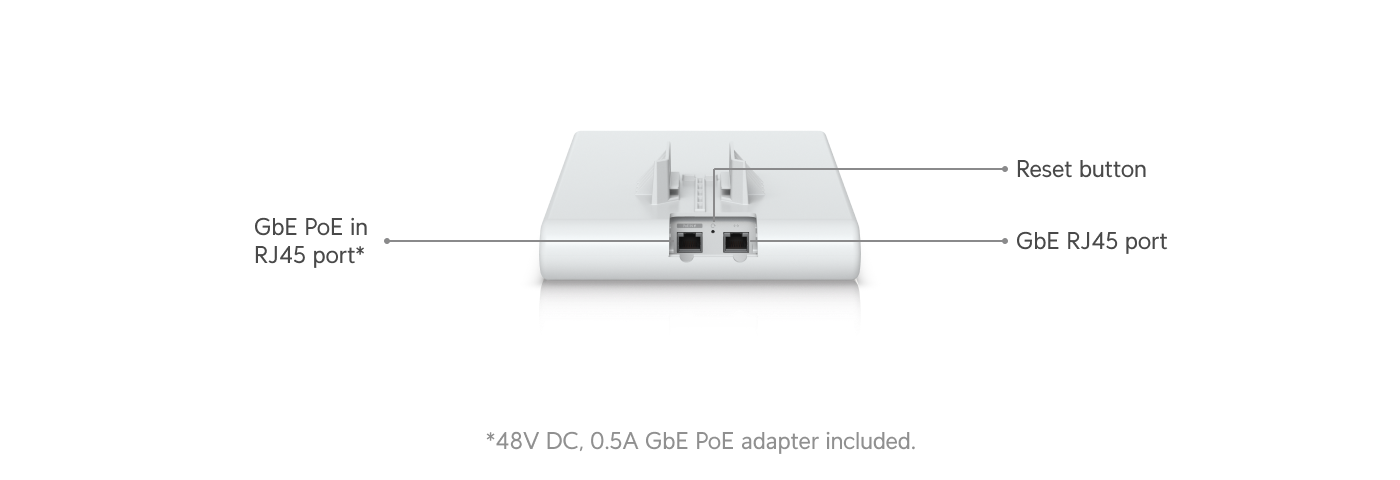

- Networking Interface: (2) GbE RJ45 ports
- Weight: 819 g (1.8 lb)
- Pole Mount Diameter: 1–2.5" (25–63.5 mm)
- Management: Ethernet, WiFi
- Enclosure Material: UV-stabilized polycarbonate
- Mount Material: Aluminum alloy, steel
- LEDs
- Channel Bandwidth: HT/VHT/HE 20/40/80/160 (MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Operating Frequency
- US/CA: 2400 - 2472 MHz
- U-NII-1: 5150 - 5250 MHz
- U-NII-2A: 5250 - 5350 MHz
- U-NII-2C: 5470 - 5725 MHz
- U-NII-3: 5725 - 5850 MHz
- Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 8.1.127 and later
