U7 Mesh
WiFi 7 AP with integrated long-range antenna system
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

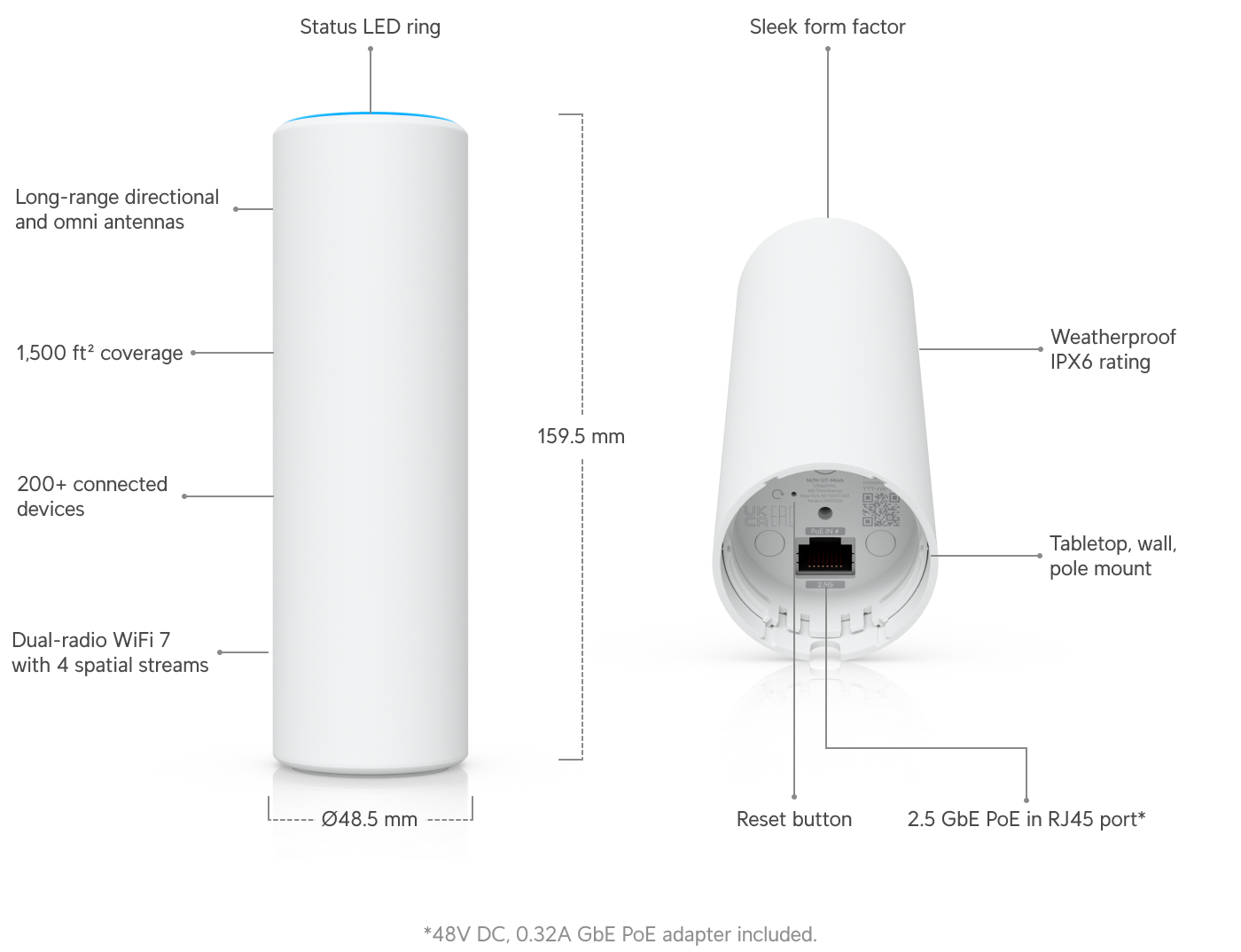

- Dimensions
- 48.5 x 159.5 mm (1.9 x 6.3")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 140 m² (1,500 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting: Wall, Pole, Table stand (Mounts included)
- Weatherproofing: IPX6 (Installed with the outdoor mount)
- Power Method: PoE
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: Omnidirectional: 6 dBi
- 5 GHz: Directional: 10 dBi
- 2.4 GHz: 3 dBi
- Max. TX Power
- 5 GHz: 24 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 13W
- Includes PoE Adapter: Yes
- Supported Voltage Range: 42.5–57V DC

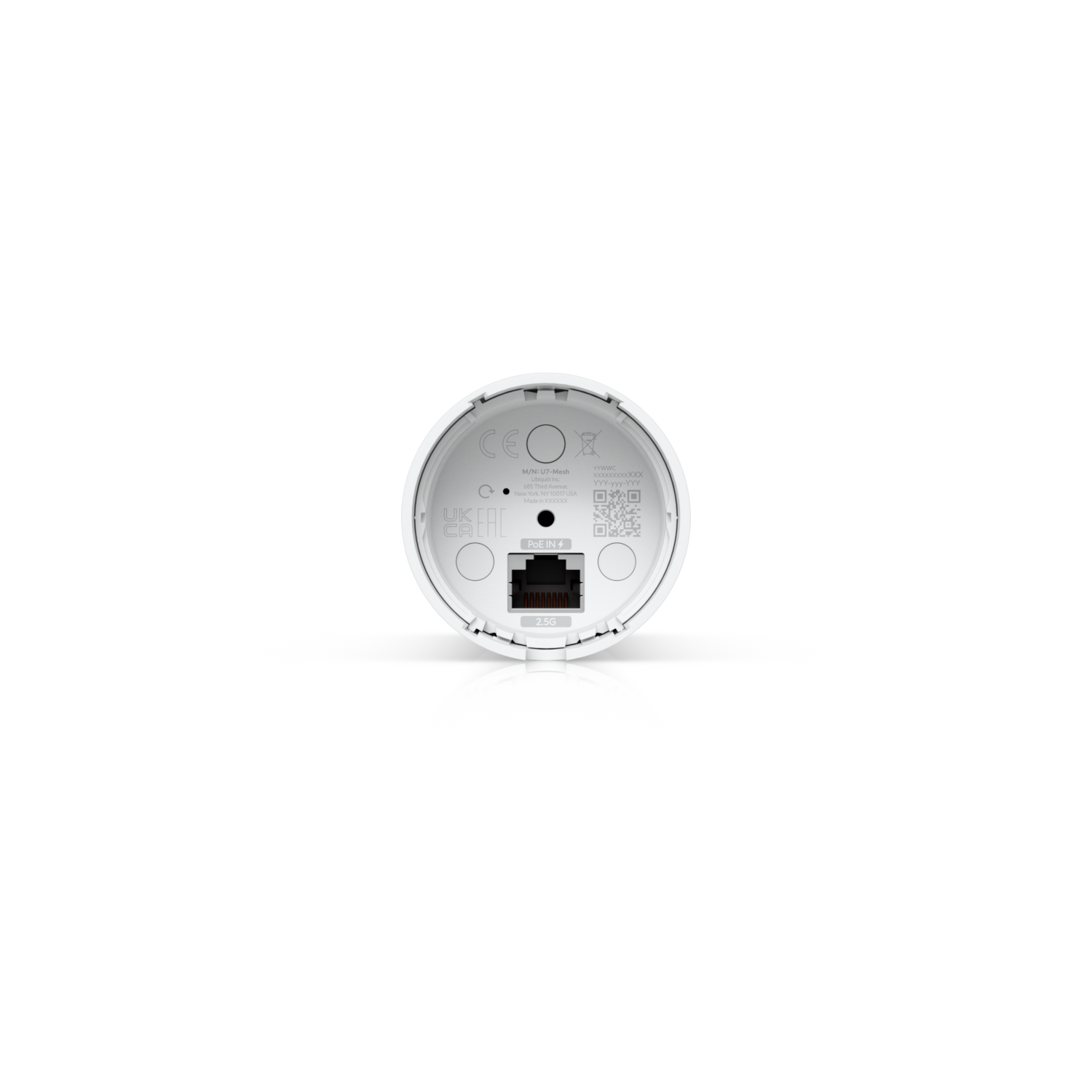

- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: 313 g (11 oz)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate
- Mount Material: UV-stabilized polycarbonate
- LEDs
- Channel Bandwidth: HT/VHT/HE/EHT 20/40/80/160/240 (MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 10.1.85 and later
- Mobile App: UniFi iOS version 10.32.1 and later
- Mobile App: Android version 10.35.1 and later
