U7 Outdoor
U7 Outdoor
Integrated directional super antenna for long-range coverage
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

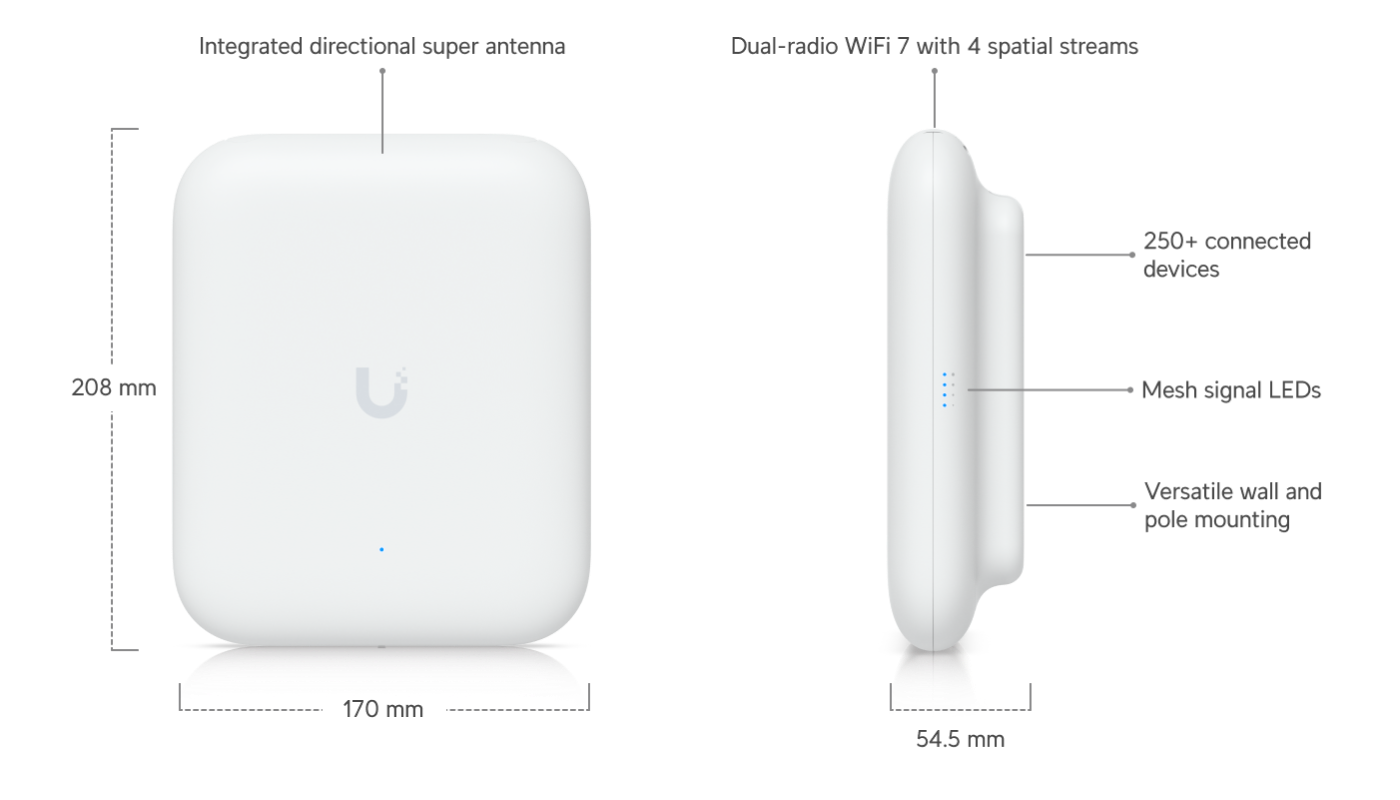

- Dimensions
- 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 250+
- Uplink: 2.5 GbE
- Mounting: Wall, Pole (Mounts Included)
- Weatherproofing: IPX6
- Power Method: PoE+
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: Directional internal: 12.5 dBi, 45° x 45°
- 5 GHz: External omni: 4 dBi, 360° x 30°
- 2.4 GHz: Directional internal: 8 dBi, 90° x 90°
- 2.4 GHz: External omni: 3 dBi, 360° x 30°
- Max. TX Power
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 19W
- Supported Voltage Range: 42.5–57V DC

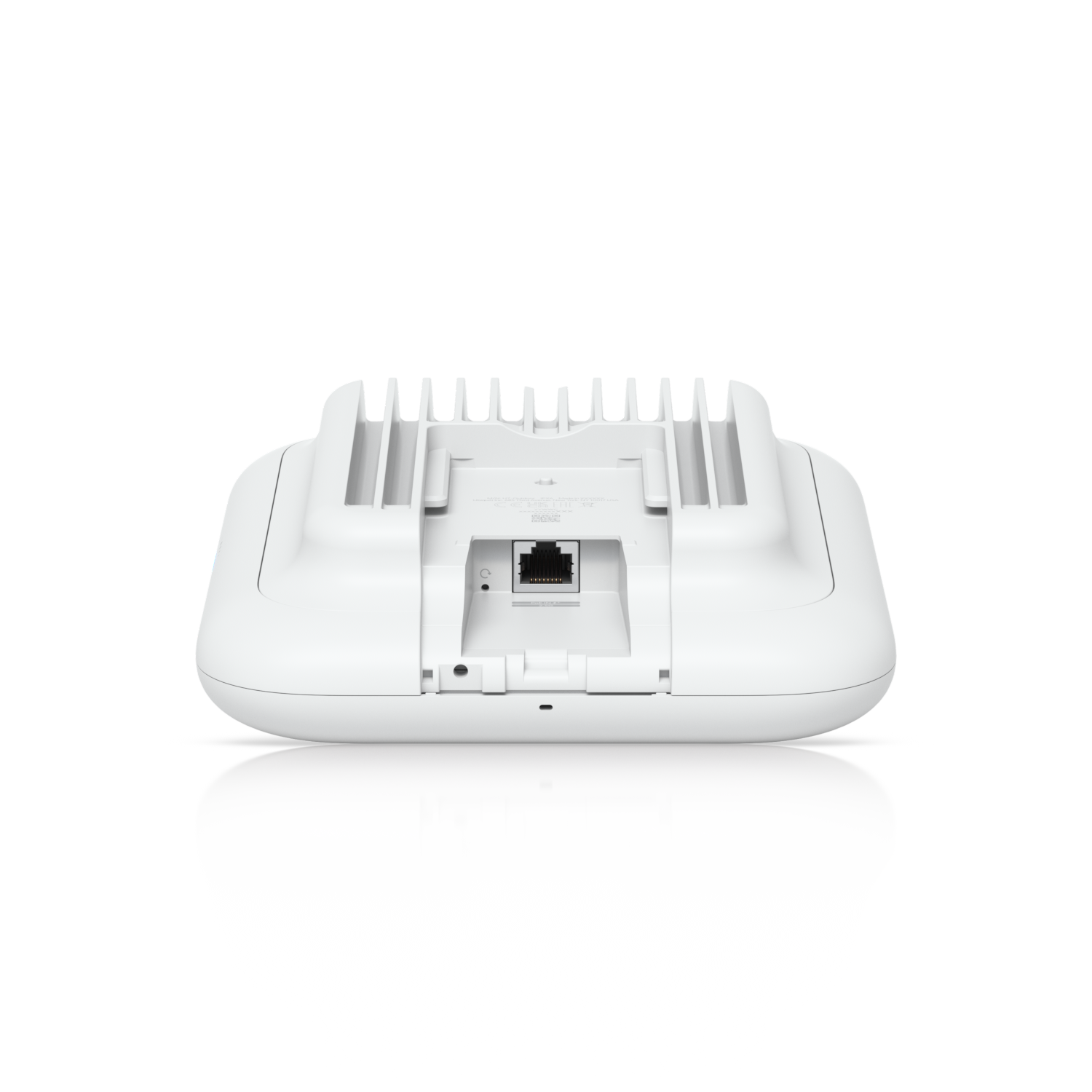

- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight: 1.2 kg (2.6 lb)
- Wind Loading: 74.6 N at 200 km/h

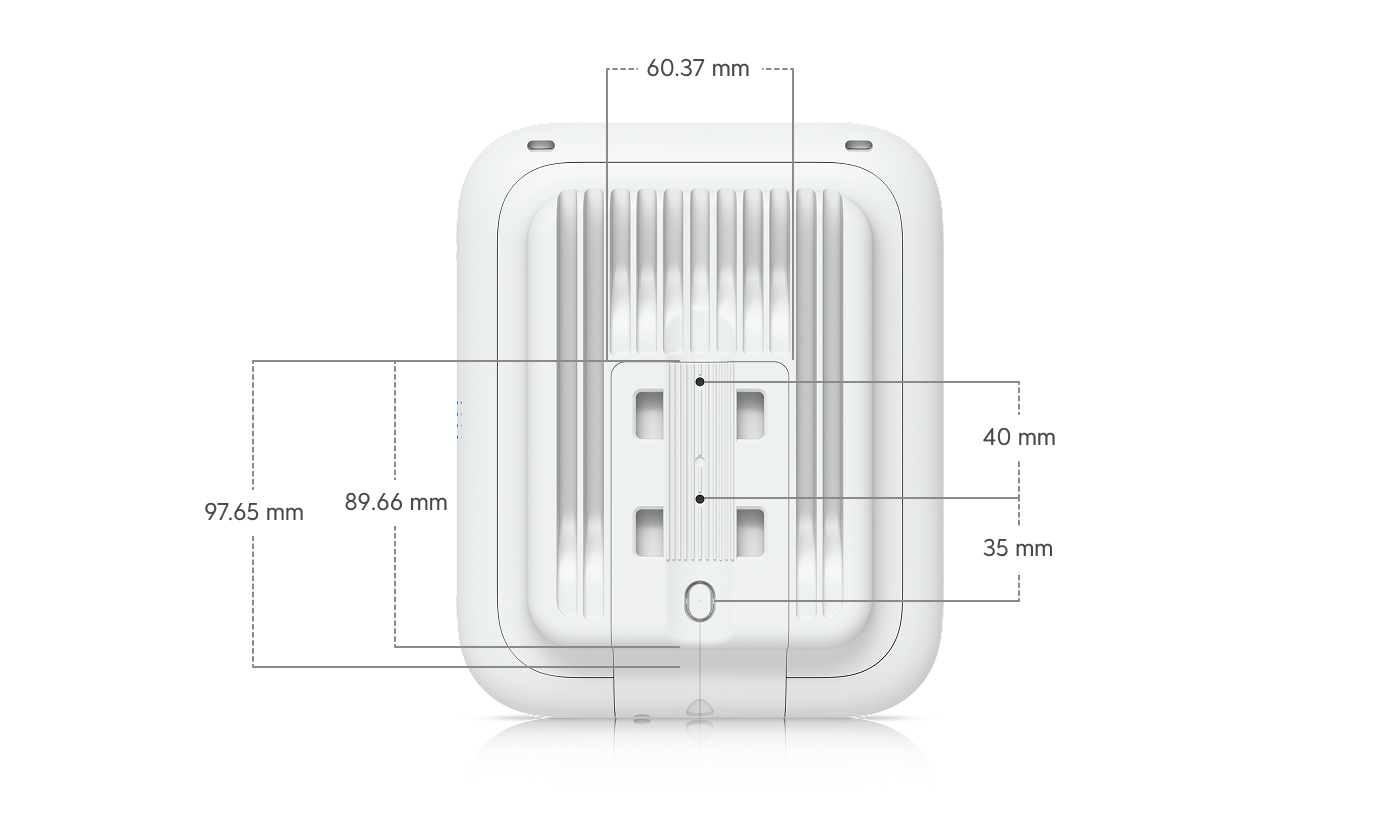

- Pole Mount Diameter: 1–2.36" (25–60 mm)
- Antennas
- (1) Directional internal antenna
- (2) External omni antennas

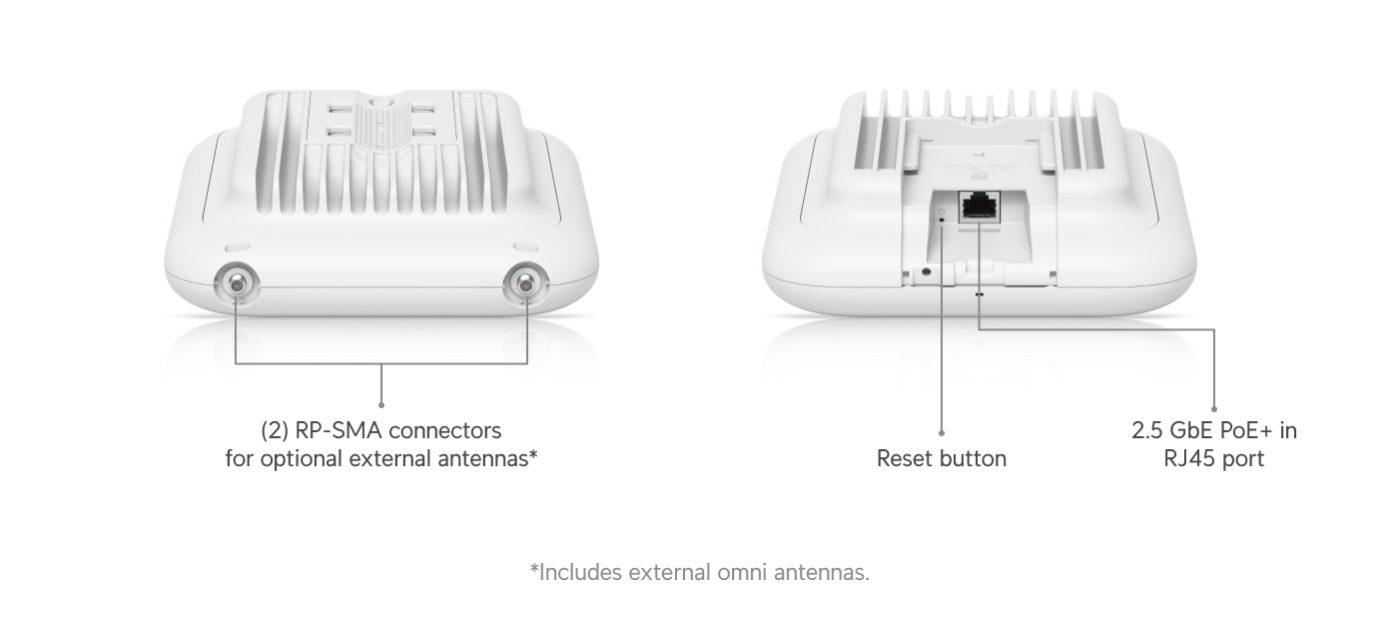

- (2) RP-SMA connectors for external antenna
- Antenna Beamwidth
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: Polycarbonate, SGCC steel
- LEDs
- Power: White/Blue
- System: White/Blue
- Mesh Signal: Blue
- Channel Bandwidth: HT/VHT/HE/EHT 20/40/80/160/240 (MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Operating Frequency
- US/CA: 2400 - 2472 MHz
- U-NII-1: 5150 - 5250 MHz
- U-NII-2A: 5250 - 5350 MHz
- U-NII-2C: 5470 - 5725 MHz
- U-NII-3: 5725 - 5850 MHz
- Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 8.2.93 and later
