U7 Pro Outdoor
U7 Pro Outdoor
Outdoor rugged IP67 design with extended-range AFC 6 GHz support
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- Dimensions
- Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
- With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
- WiFi Standard: WiFi 7
- Spatial Streams: 6
- Coverage Area: 465 m² (5,000 ft²)
- Max. Client Count: 300+
- Uplink: 2.5 GbE

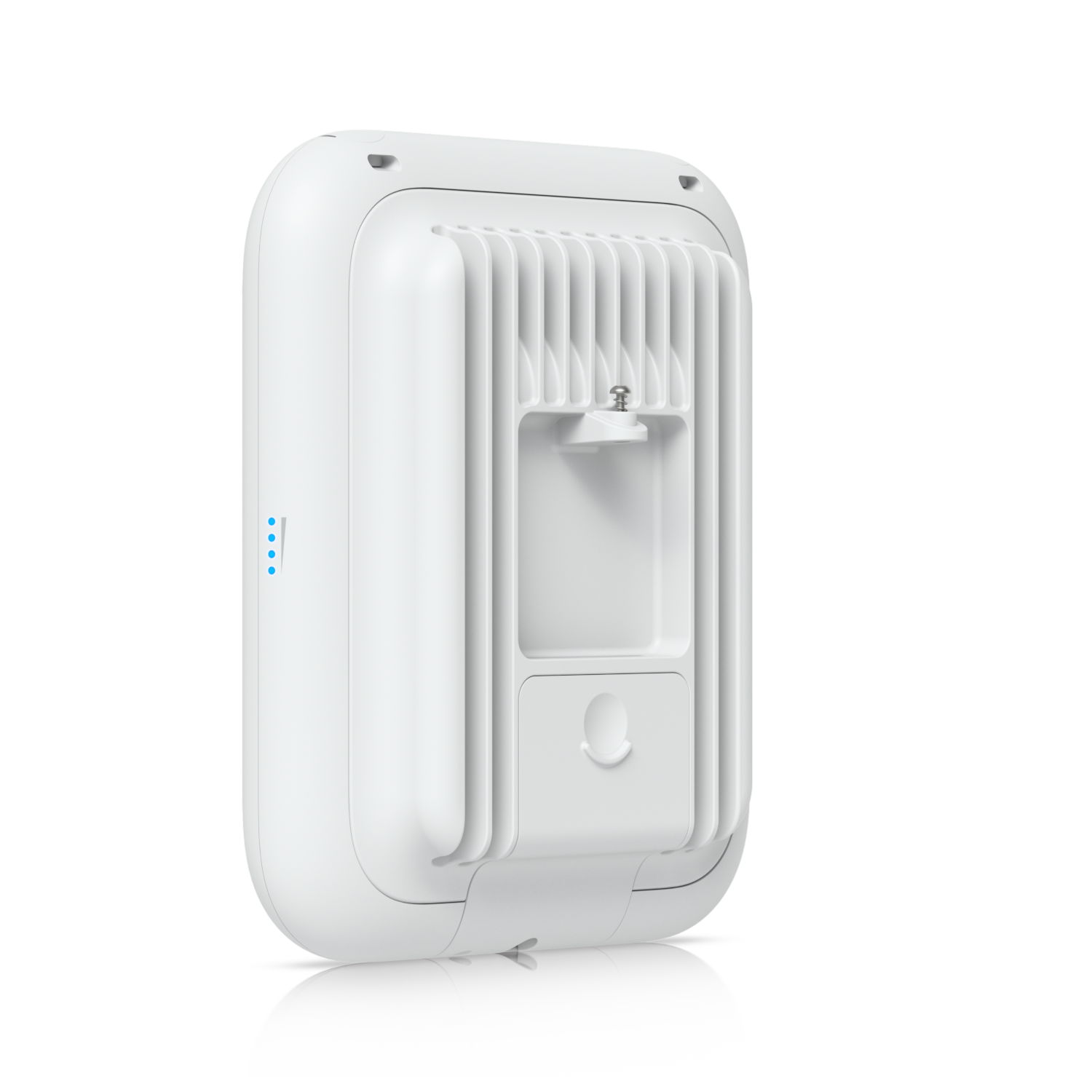

- Mounting: Wall, Pole (Mounts Included)
- Weatherproofing: IPX6, IP67 (With cable-gland door kit)
- Power Method: PoE+
- Performance
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: Directional internal: 10 dBi, 90° x 45°
- 5 GHz: Directional internal: 11 dBi, 90° x 45°
- 5 GHz: External omni: 8 dBi, 360° x 15°
- 2.4 GHz: Directional internal: 8 dBi, 90° x 90°
- 2.4 GHz: External omni: 6 dBi, 360° x 15°
- Max. TX Power
- 6 GHz: 26 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features

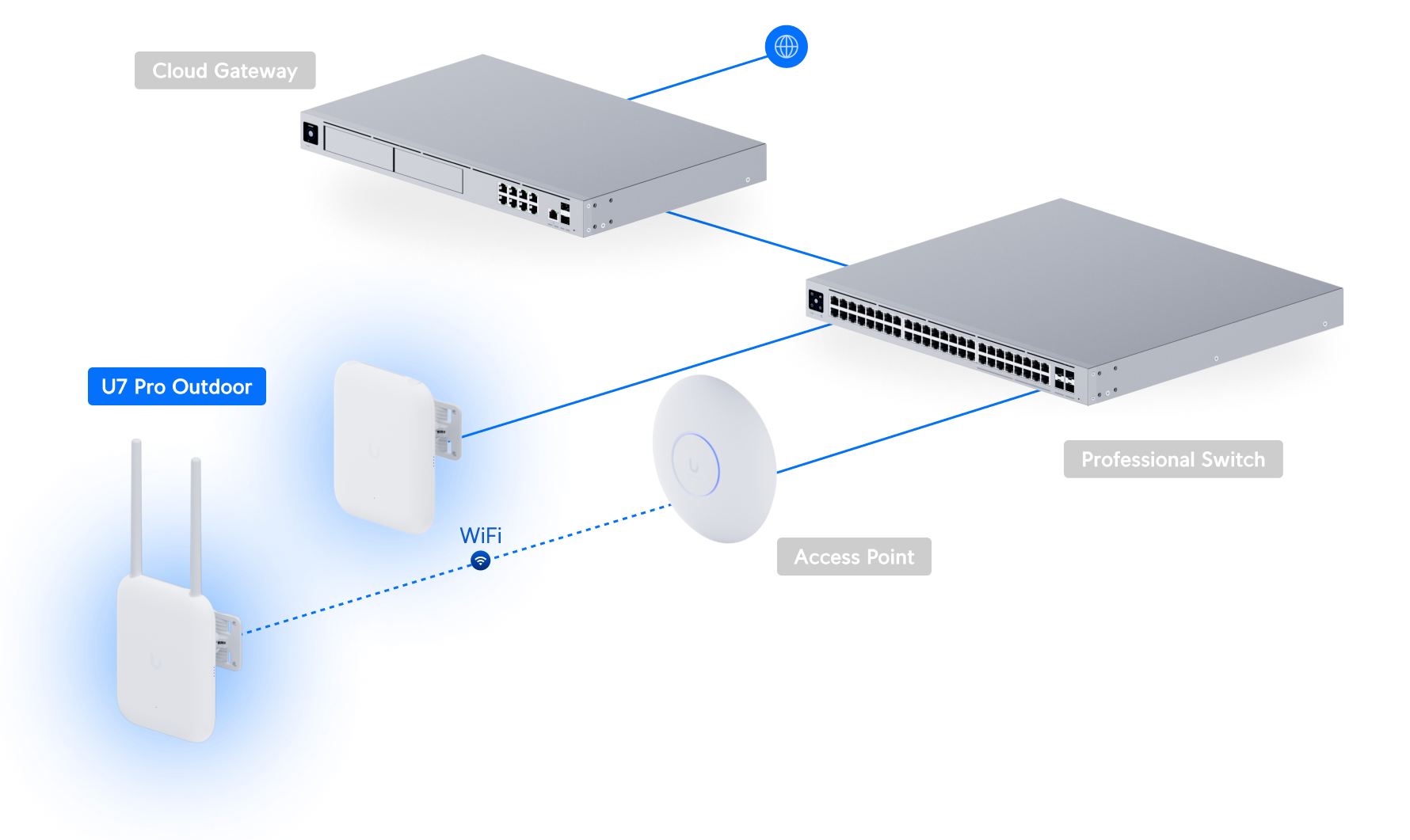

- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 21W
- Supported Voltage Range: 42.5–57V DC

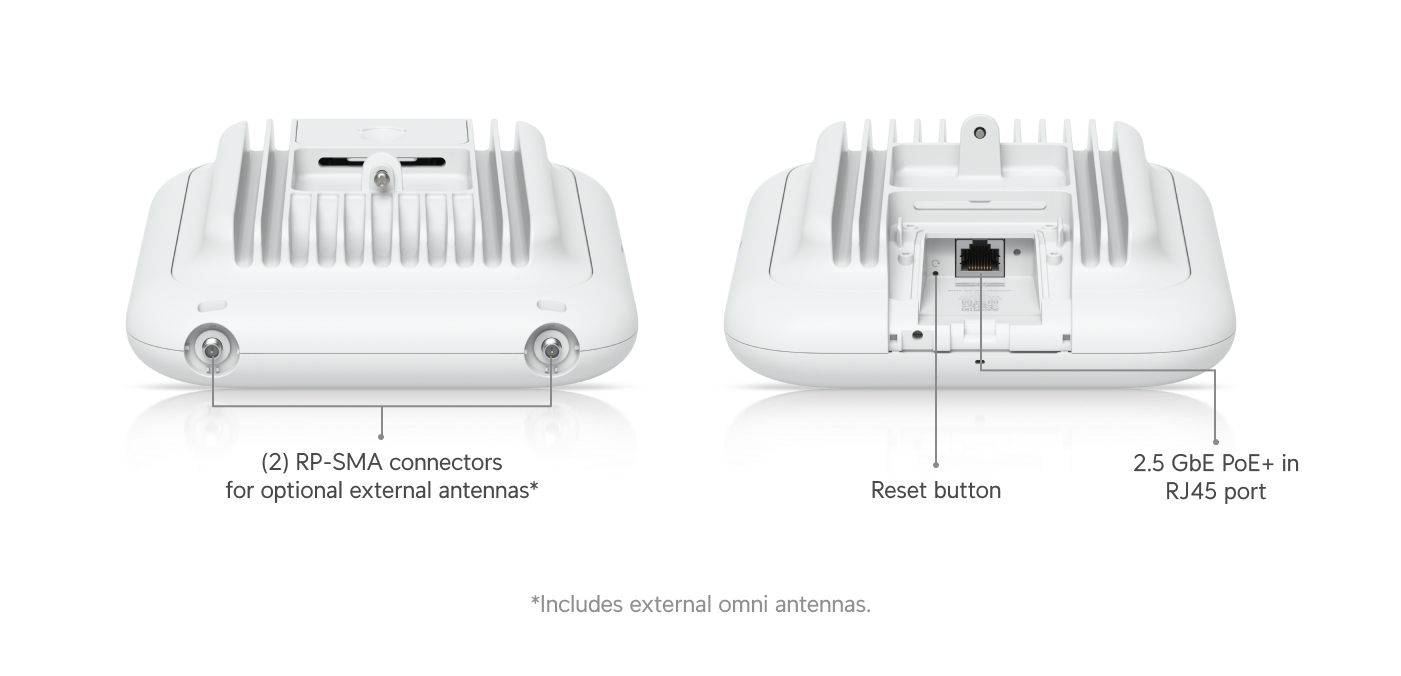

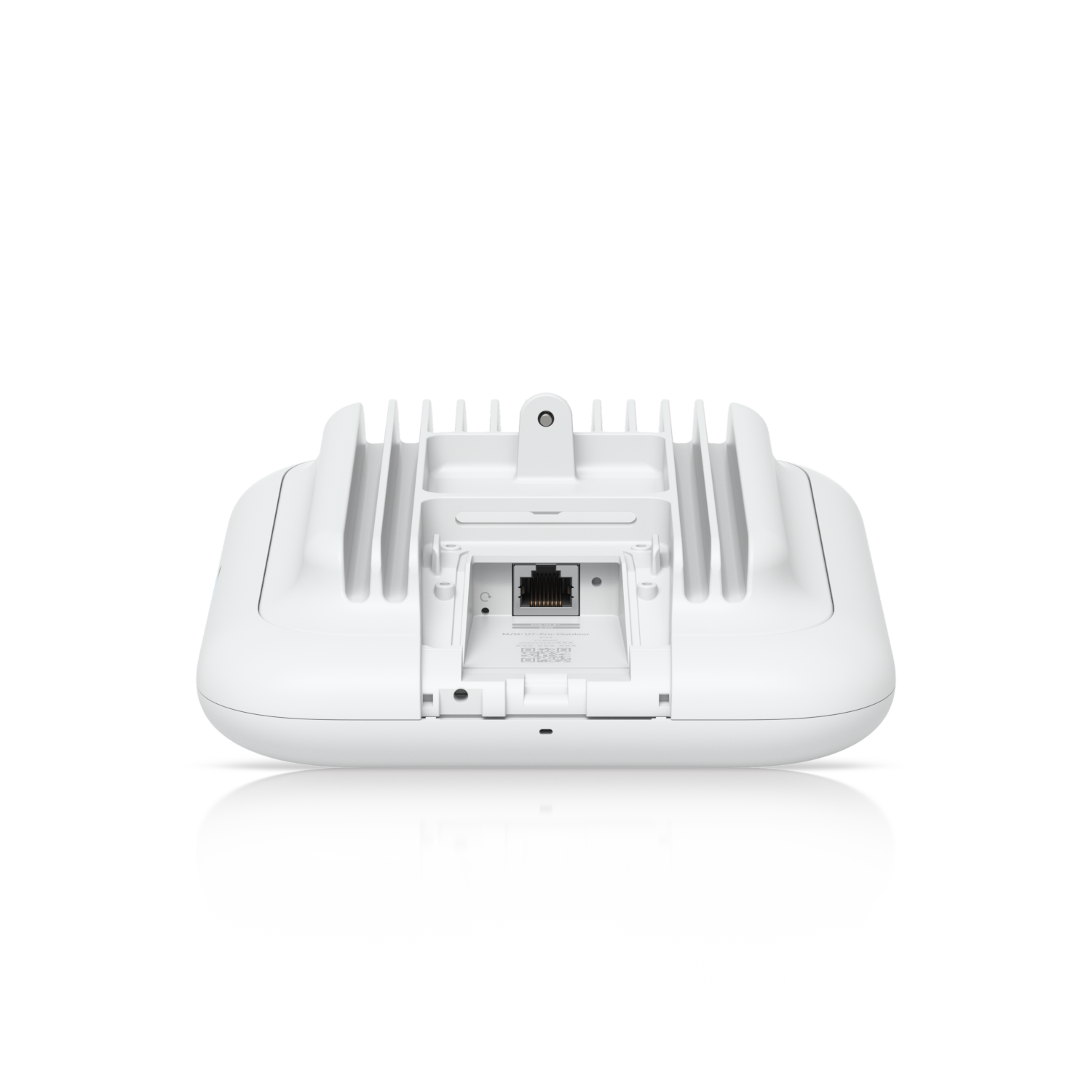

- Networking Interface: (1) 1/2.5 GbE RJ45 port
- Weight
- Device: 1.2 kg (2.6 lb)
- With mount: 1.33 kg (2.9 lb)
- Wind Loading: 74.6 N at 200 km/h
- Pole Mount Diameter: 1–2.5" (25–63.5 mm)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
- Mount Material: UV-stabilized polycarbonate
- LEDs
- Power: White/Blue
- Mesh signal: Blue
- NDAA Compliant: Yes
- Certifications: FCC, IC
- Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 9.0.114 and later
- Mobile App: iOS version 10.20.2 and later
- Mobile App: Android version 10.21.7 and later
