U6 Extender
U6 Extender
Easy-to-deploy WiFi 6 extender that plugs into a wall outlet
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

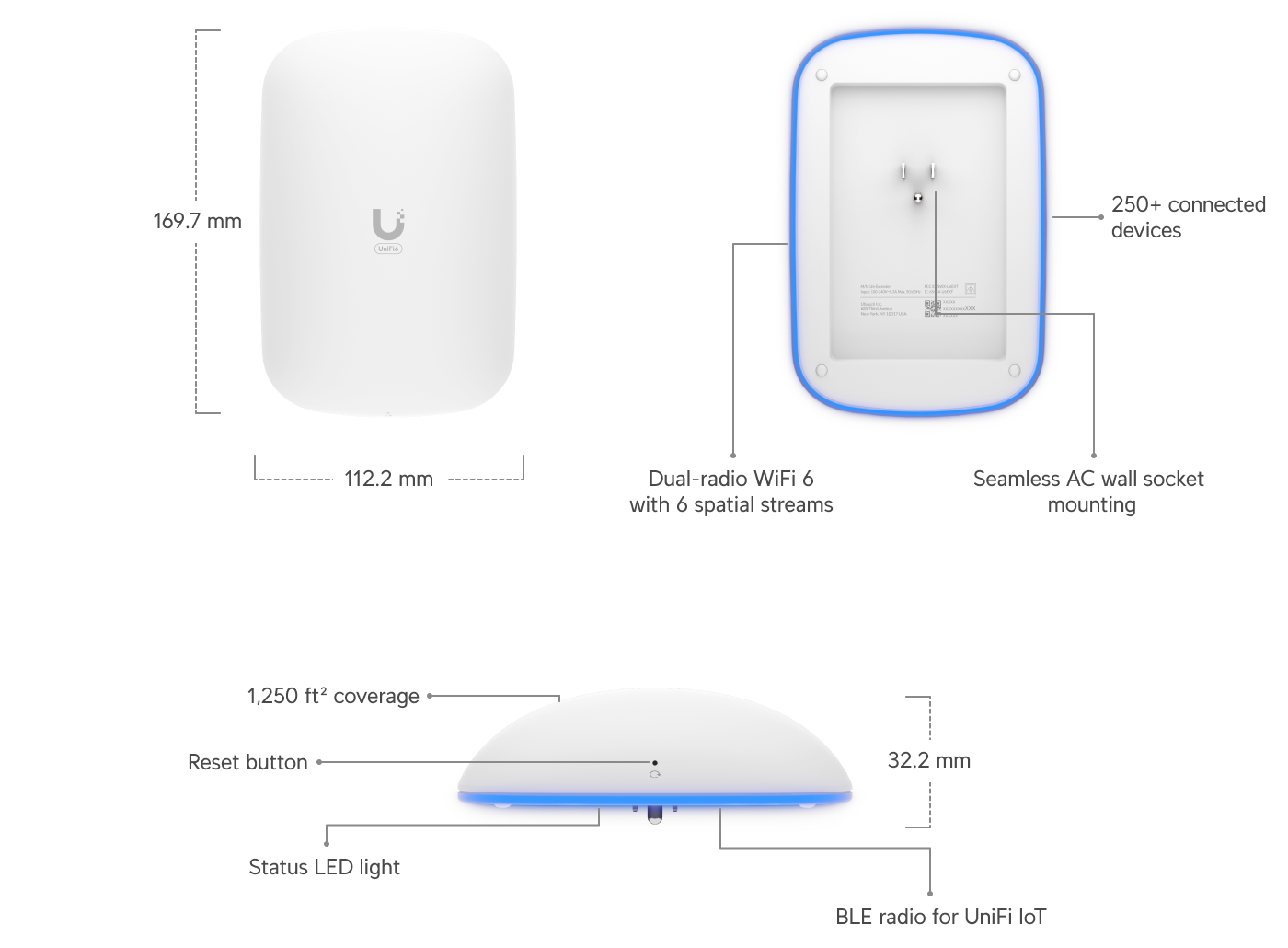

- Dimensions
- US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3")
- EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
- WiFi Standard: WiFi 6
- Spatial Streams: 6
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 250+

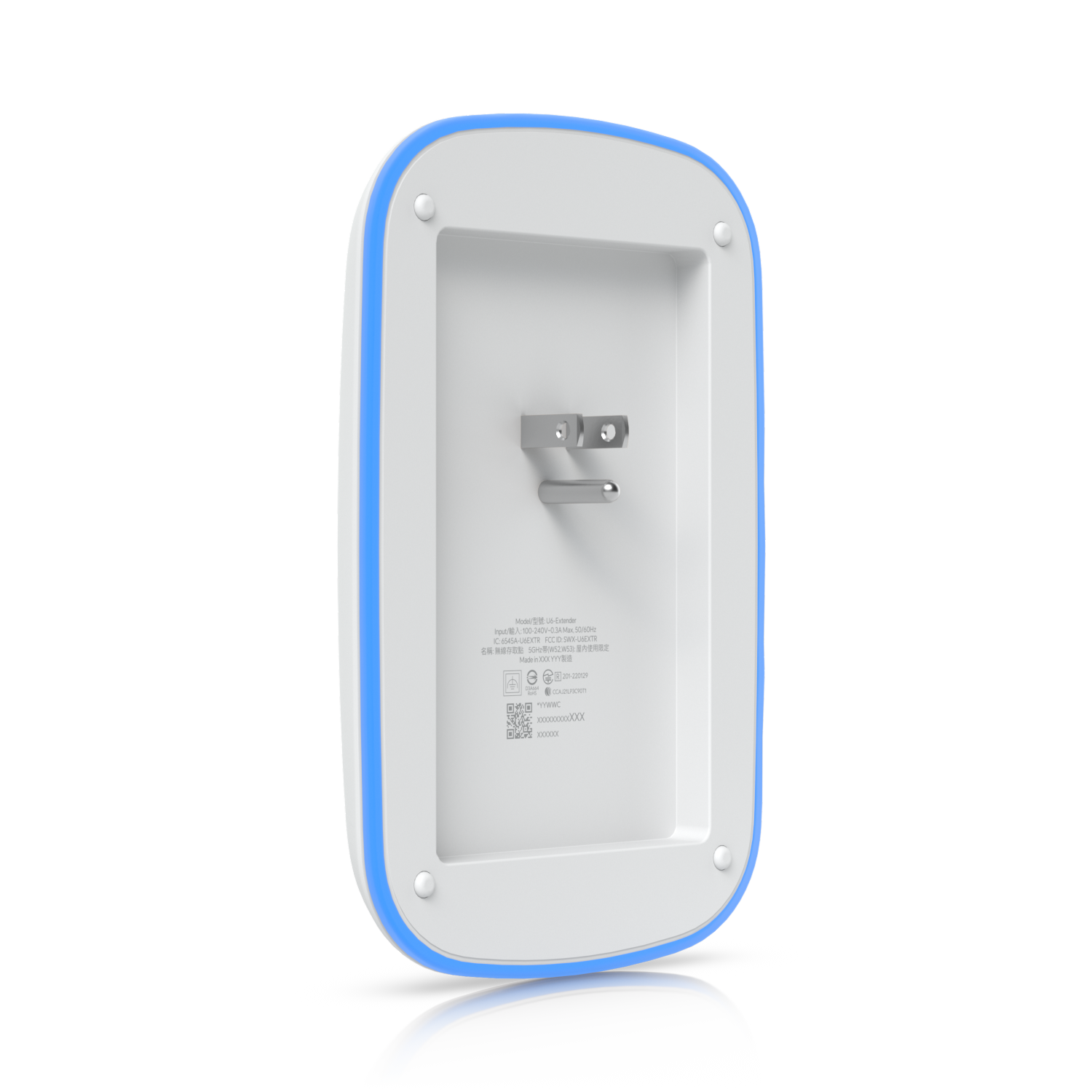

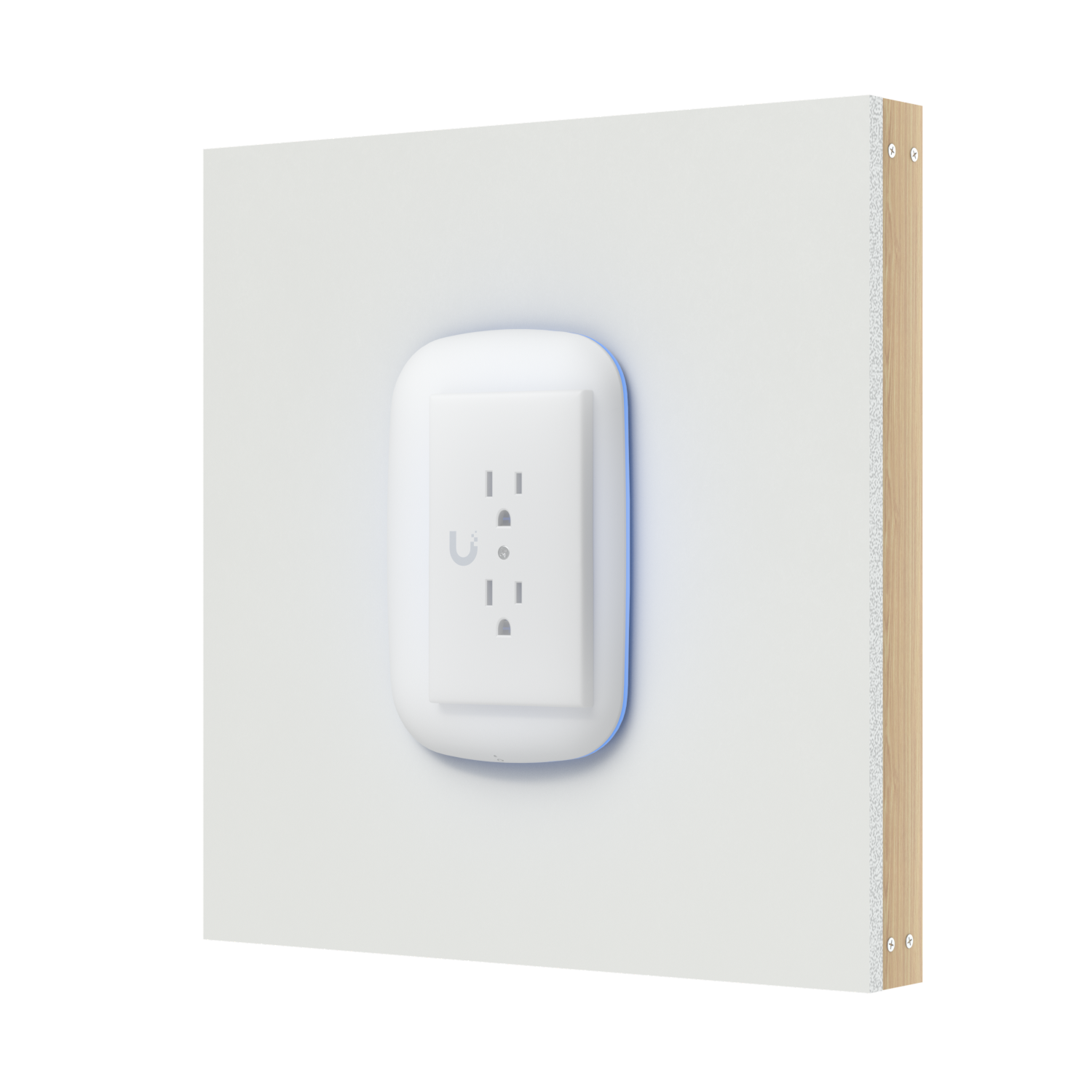

- Mounting: Wall (Wall Power Socket Included)
- Power Method: Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz
- Performance
- MIMO
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.8 Gbps (BW160)
- 2.4 GHz: 573.5 Mbps (BW40)
- Antenna Gain
- 5 GHz: 6 dBi
- 2.4 GHz: 5 dBi
- Max. TX Power
- 5 GHz: 26 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
- 802.11n: 6.5 Mbps to 600 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 11W
- Supported Voltage Range: 110–240V AC
- Weight
- US: 290 g (10.2 oz)
- EU: 340 g (12 oz)
- Management: Bluetooth
- Enclosure Material: Polycarbonate
- LEDs
- Channel Bandwidth: HT/VHT/HE 20/40/80/160 (MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Operating Frequency
- US/CA: 2400 - 2472 MHz
- U-NII-1: 5150 - 5250 MHz
- U-NII-2A: 5250 - 5350 MHz
- U-NII-2C: 5470 - 5725 MHz
- U-NII-3: 5725 - 5850 MHz
- Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz
- Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network Version 6.0.45 and later
Q: Is setup instant?
A: Yes.
