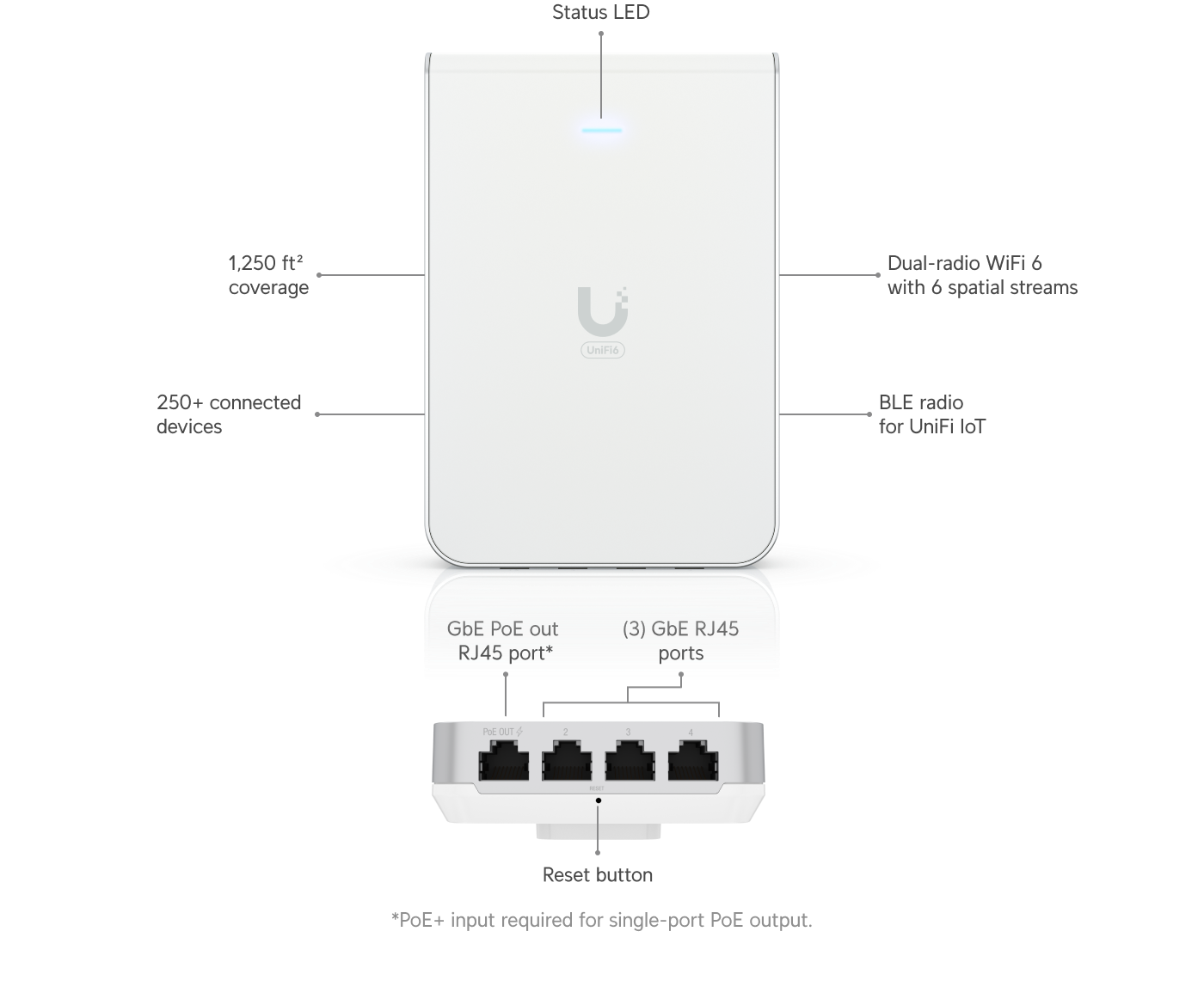

U6 In-Wall
U6 In-Wall
Low-profile WiFi 6 AP with a built-in PoE switch
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

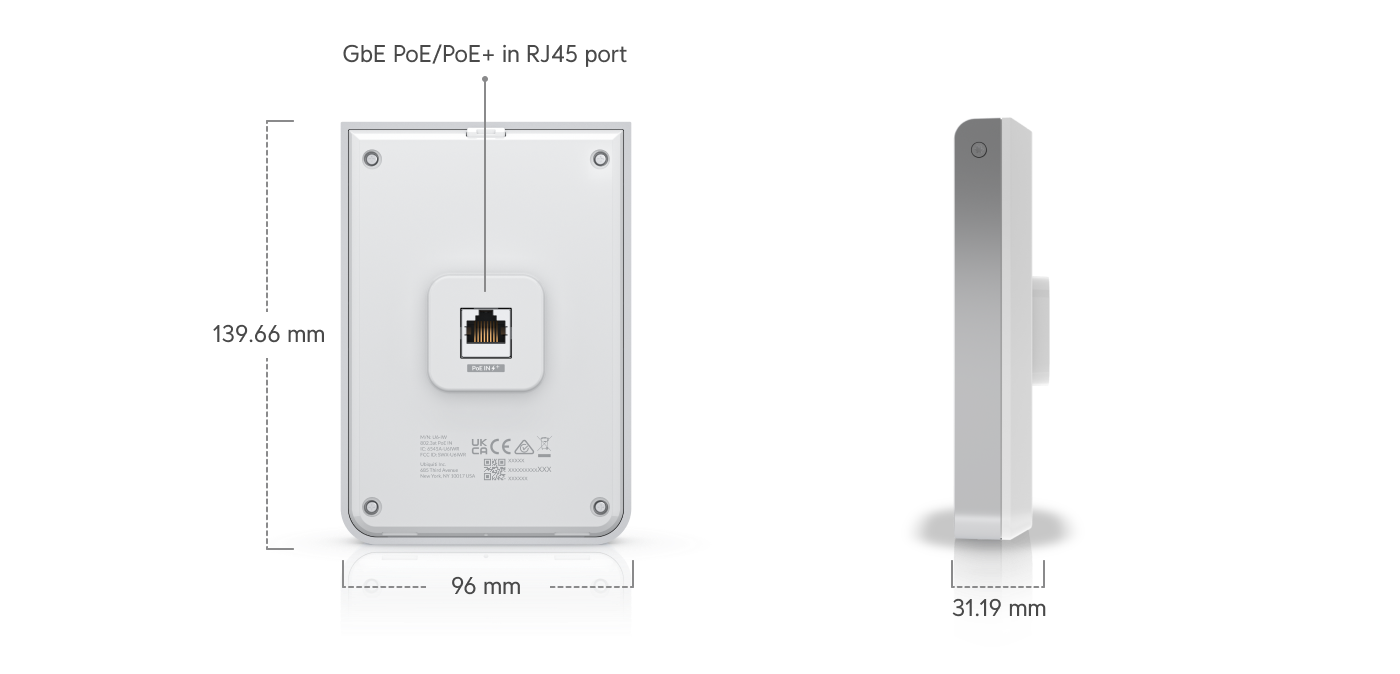

- Dimensions: 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3")
- WiFi Standard: WiFi 6
- Spatial Streams: 6
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 250+
- Uplink: GbE
- Mounting: Wall (Mount Included)
- Power Method: PoE
- PoE+: Required for PoE output
- Performance
- MIMO
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.8 Gbps (BW160)
- 2.4 GHz: 573.5 Mbps (BW40)
- Antenna Gain
- 5 GHz: 5.9 dBi
- 2.4 GHz: 5 dBi
- Max. TX Power
- 5 GHz: 26 dBm
- 2.4 GHz: 22 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
- 802.11n: 6.5 Mbps to 600 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 13W (Excluding PoE output)
- Networking Interface:
- (1) Data-in: GbE RJ45 port
- (4) Data-out: GbE RJ45 ports
- Weight: 460 g (1 lb)
- Management: Ethernet, Bluetooth

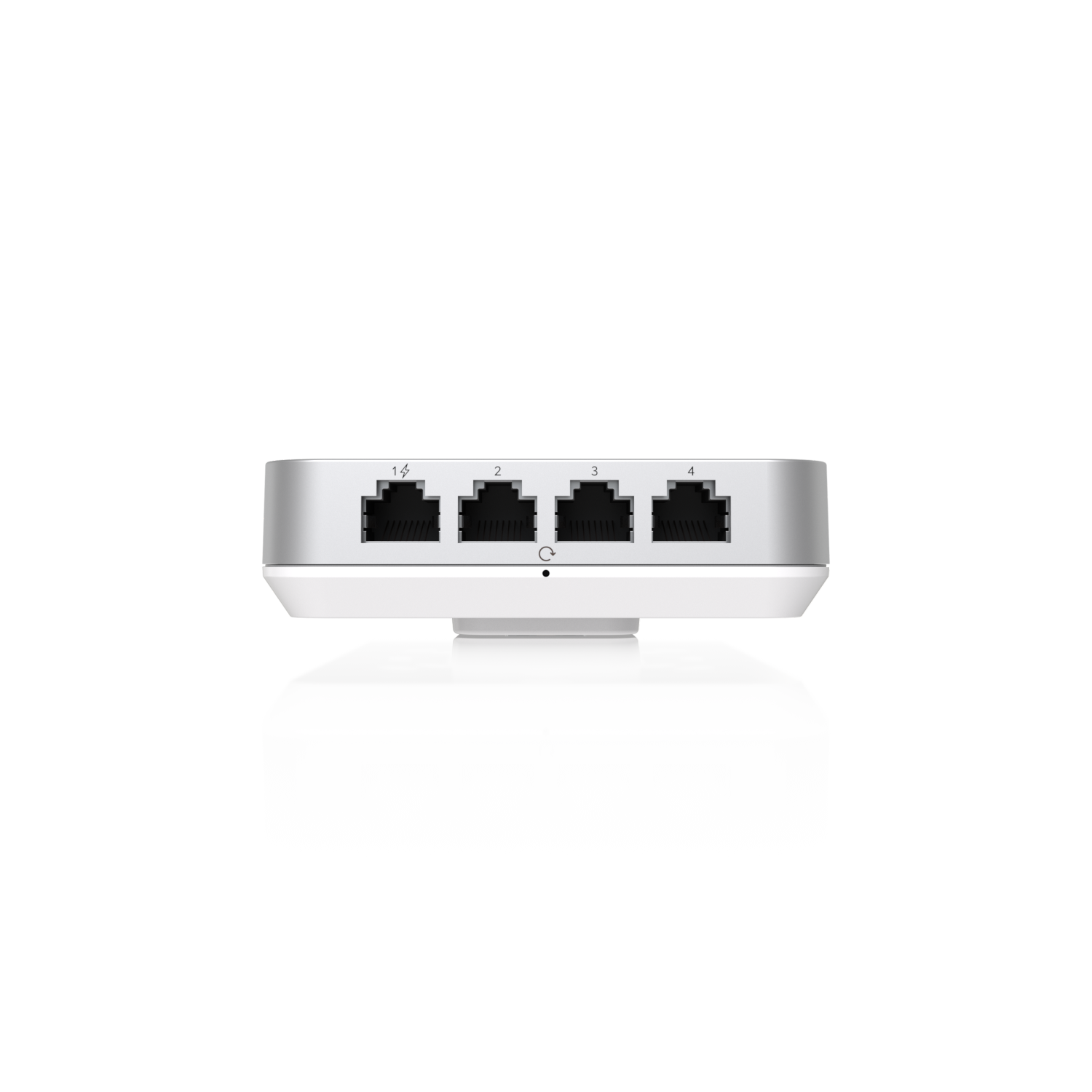

- Built-In Switch: (4) GbE ports with (1) PoE output
- Enclosure Material: Plastic, aluminum
- Mount Material: Aluminum
- LEDs: System (White/Blue)
- Channel Bandwidth: HT/VHT/HE (20–160 MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, SRRC, Anatel: 11546-22-08356
- Operating Frequency
- US/CA:
- 2400 - 2472 MHz
- 5150 - 5250 MHz
- 5250 - 5350 MHz
- 5470 - 5725 MHz
- 5725 - 5850 MHz
- Worldwide:
- 2400 - 2483.5 MHz
- 5150 - 5850 MHz
- Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 6.0.45 and later)
