U7 In-Wall
U7 In-Wall
WiFi 7 AP with integrated 2.5 GbE PoE switch
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

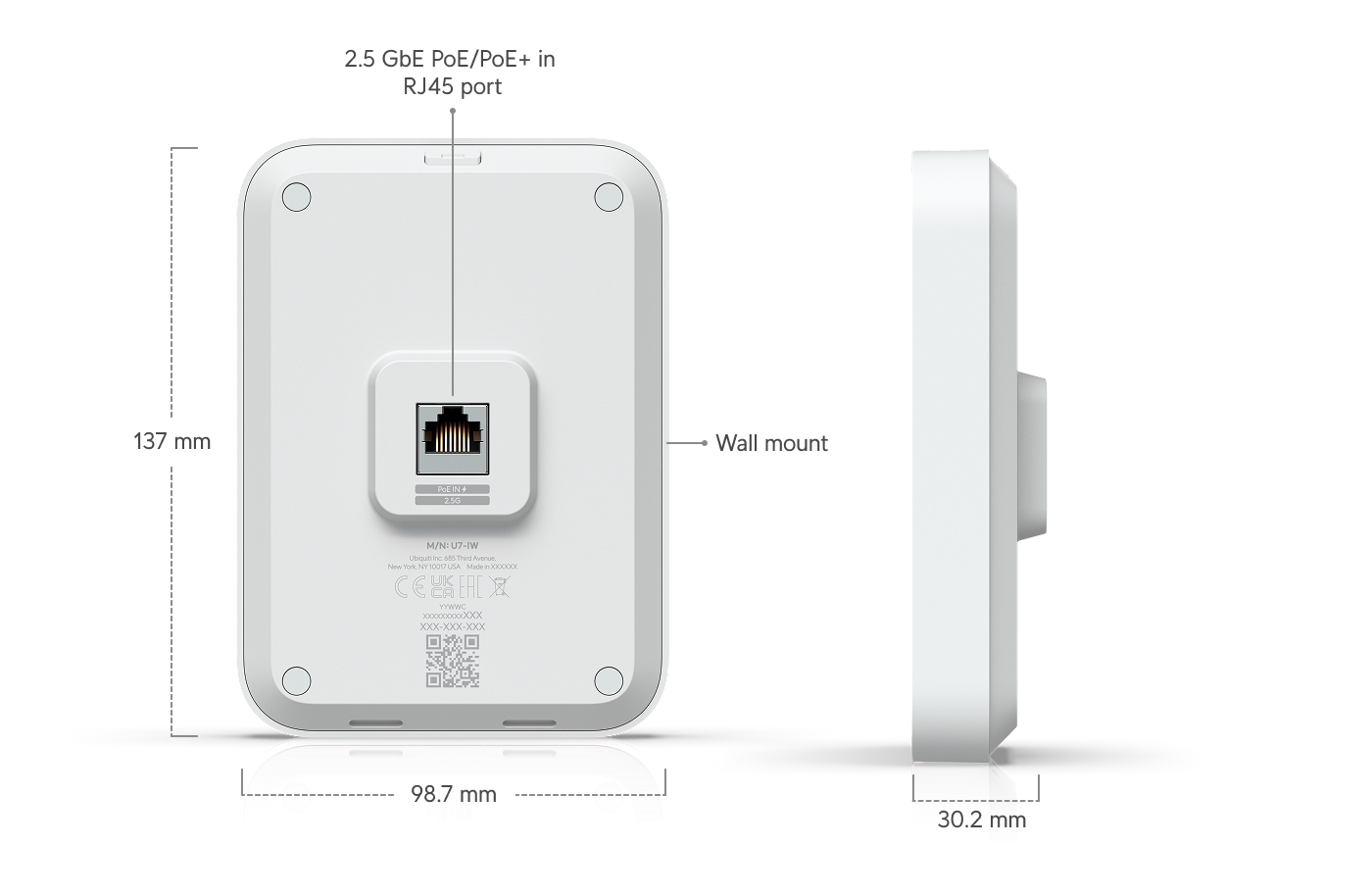

- Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting: Wall (Metal Wall Mount Included)
- Power Method: PoE
- PoE+: Required for PoE output
- Performance
- MIMO
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 5 GHz: 8 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 5 GHz: 24 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
- 802.11n: 6.5 Mbps to 300 Mbps
- Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
- Hardware
- Max. Power Consumption: 13W (Excluding PoE output)
- Supported Voltage Range: 42.5–57V DC
- Networking Interface: (3) 2.5 GbE RJ45 ports
- Weight: 400 g (14.1 oz)
- Management: Ethernet
- Built-In Switch:
- (1) PoE+ input
- (1) PoE output
- Enclosure Material: Polycarbonate, aluminum alloy
- Mount Material: Aluminum alloy
- LEDs: System (White/Blue)
- Channel Bandwidth: HT/VHT/HE/EHT (20–240 MHz)
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, SRRC, Anatel: 03909-25-08356
- Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Software
- Application Requirements: UniFi Network (Version 9.0.114 and later)
- Mobile App: iOS™ 10.20.2+ and Android™ 10.21.7+
