Flex Mini
Incredibly compact with PoE input support
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

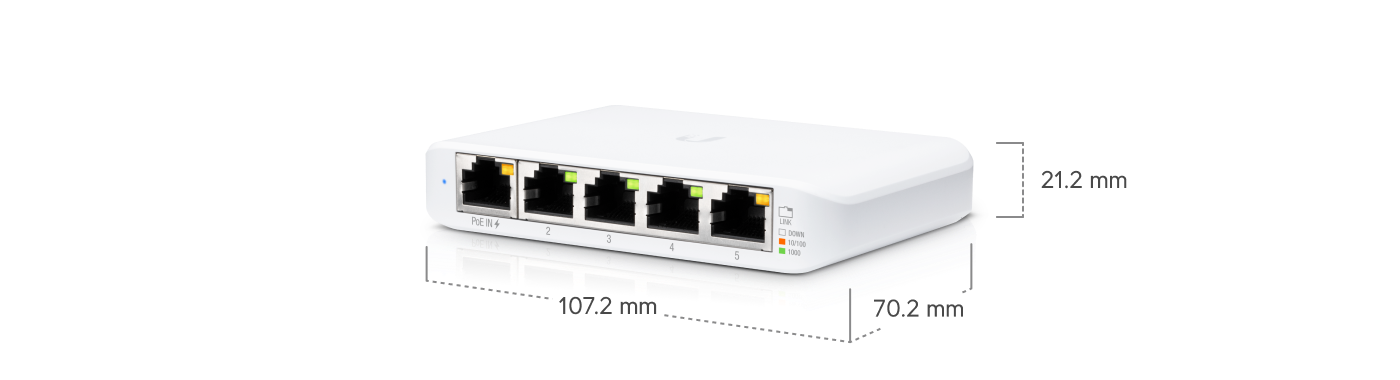

- Dimensions: 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")

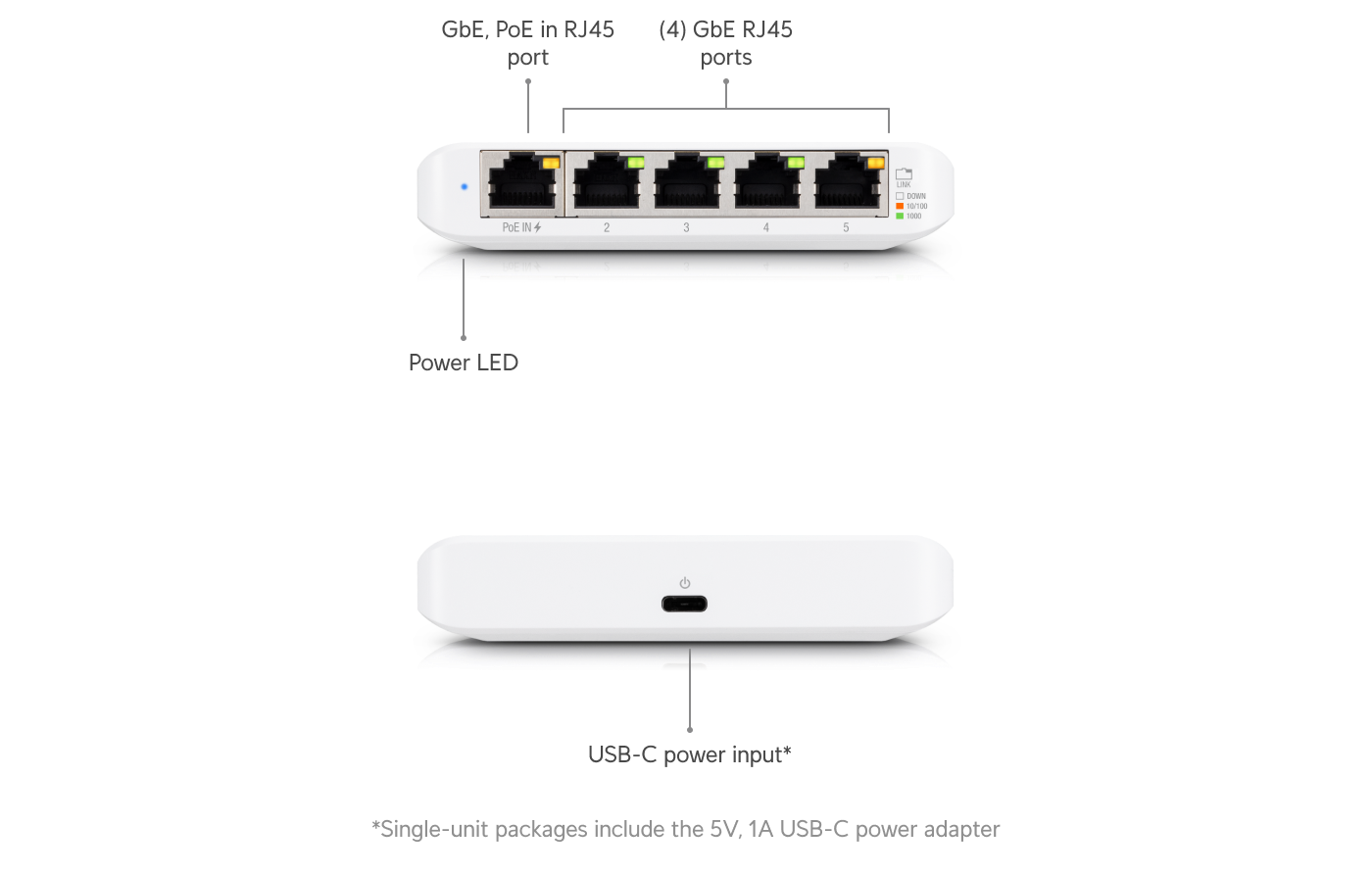

- Port Layout:
- 1 GbE RJ45: 5
- Speed: (1G/100M/10M)
- Form Factor: Compact desktop
- Performance:
- Switching Capacity: 10 Gbps
- Total Non-Blocking Throughput: 5 Gbps
- Forwarding Rate: 7 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 2,000
- Layer 2 Features:
- Egress Rate Limit
- Flow Control
- Storm Control
- Multicast & Broadcast Rate Limiting
- Port Isolation
- Port Mirroring
- Jumbo Frames
- Hardware:
- Max. Power Consumption: 2.5W
- Power Method:

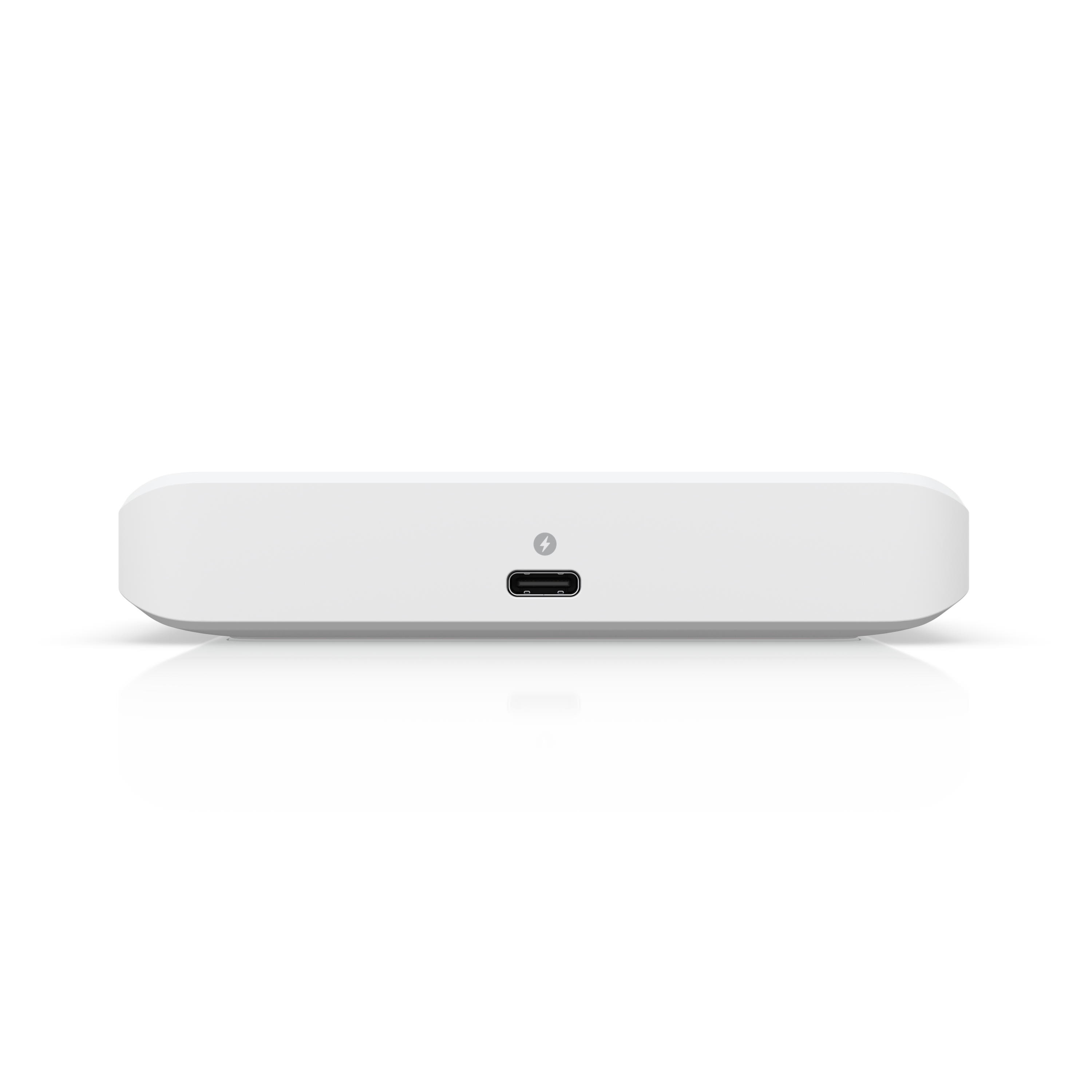

- (1) USB Type-C, 5V DC, 1A
- (1) PoE
- Power Input Method:
- Power Supply: AC/DC, external, 5W
- Supported Voltage Range:
- 4.8—5.2V DC/USB
- 44V—57V PoE
- Management: Ethernet
- Heat Dissipation: 6.8 BTU/hr
- Weight: 150 g (5.3 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant : Yes
- Certifications: CE, FCC, IC, Anatel: 14501-20-08356
- Software:
- Application Requirements: UniFi Network (Version 5.12.5 and later)
Q: Is setup instant?
A: Yes.
