Overview

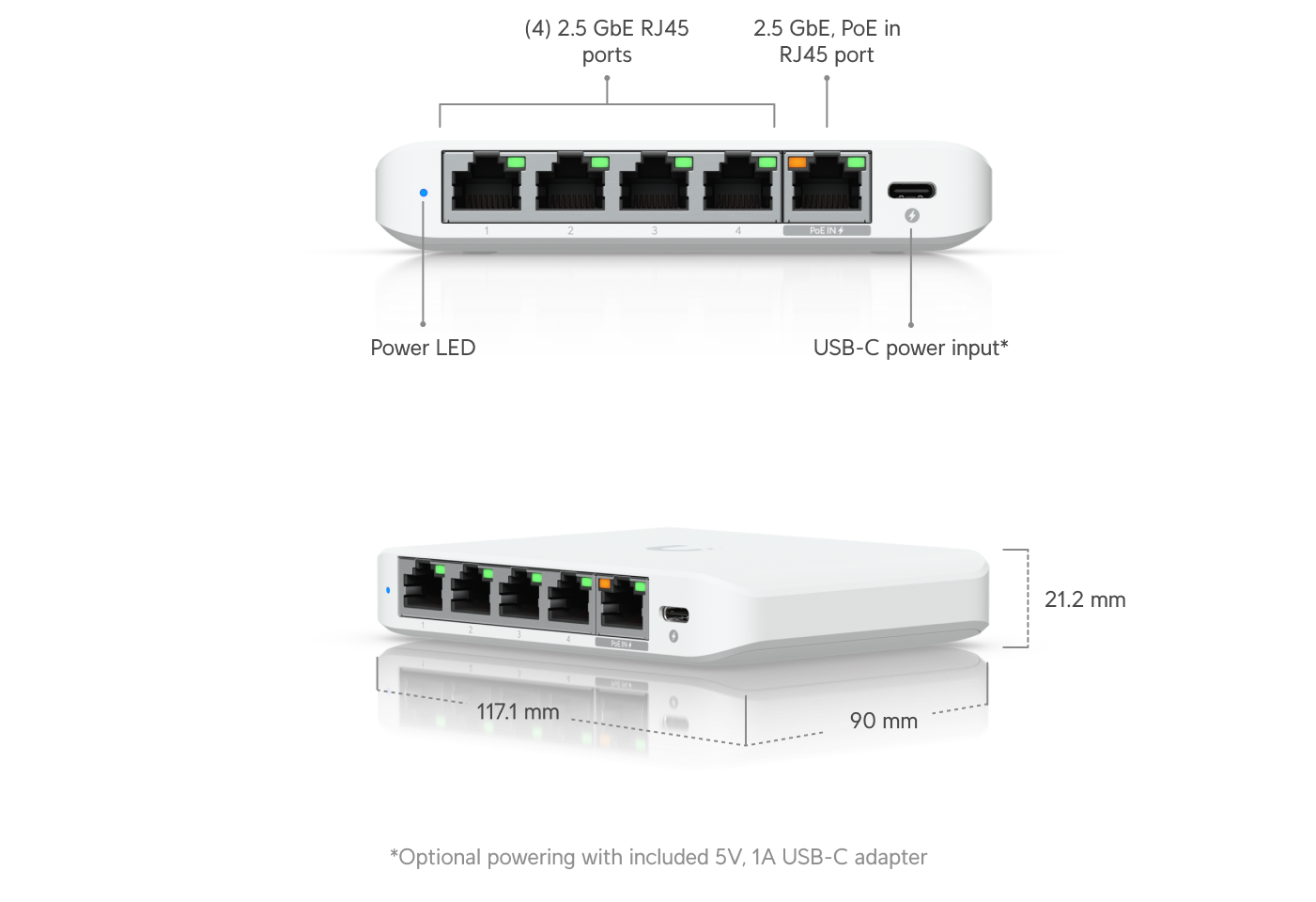

Dimensions: 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")
Port Layout:
- ? 2.5 GbE RJ45: 5
- ? Speed: (2.5G/1G/100M/10M)
Form Factor: Compact desktop
Performance:
- Switching Capacity: 25 Gbps
- Total Non-Blocking Throughput: 12.5 Gbps
- Forwarding Rate: 19 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
Layer 2 Features:
- STP & RSTP
- Egress Rate Limit
- Flow Control
- Storm Control
- Multicast & Broadcast Rate Limiting
- Port Isolation
- Port Mirroring
- Jumbo Frames
- Loop Protection
Hardware:
- Max. Power Consumption:
  - 5W (AC/DC input)
  - 6.4W (PoE input)
- Power Method:
  - (1) USB Type-C, 5V DC, 1A
  - (1) PoE
- Power Input Method:
  - USB Input
  - PoE
- Power Supply: AC/DC, external, 5W
- Supported Voltage Range:
  - 4.8—5.2V DC/USB
  - 44V—57V PoE
- Management: Ethernet
- Weight: 206 g (7.3 oz)
- Enclosure Material: Polycarbonate
- Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- ? NDAA Compliant
- Certifications: CE, FCC, IC, Anatel
Software:
- Application Requirements: UniFi Network (Version 8.6.9 and later)

Q: Is setup instant?
A: Yes.

Flex Mini 2.5G
