Overview

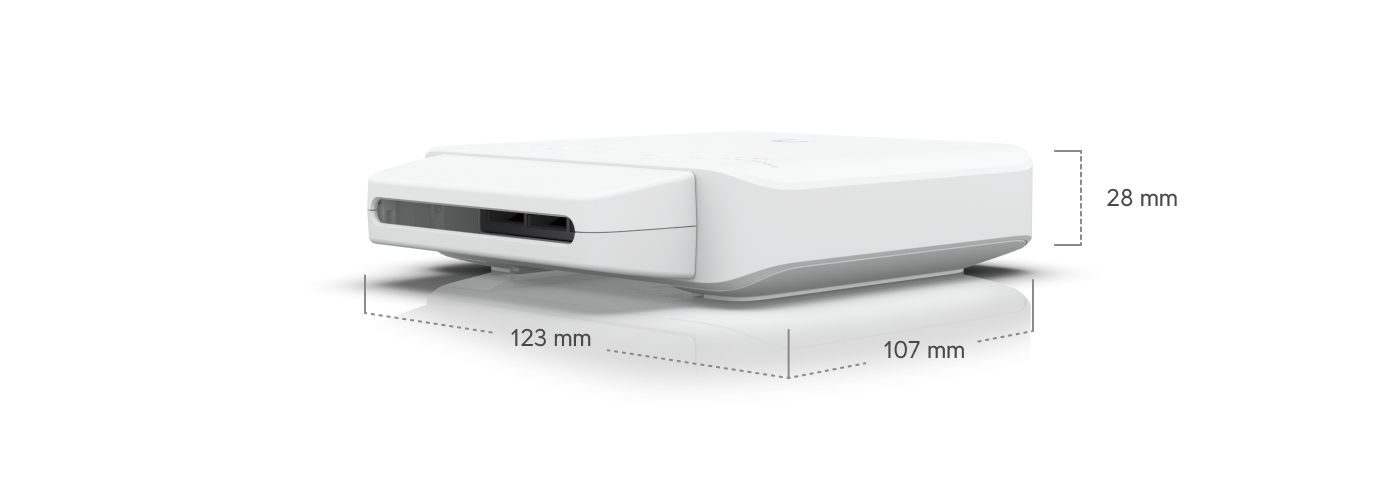

Dimensions: 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")

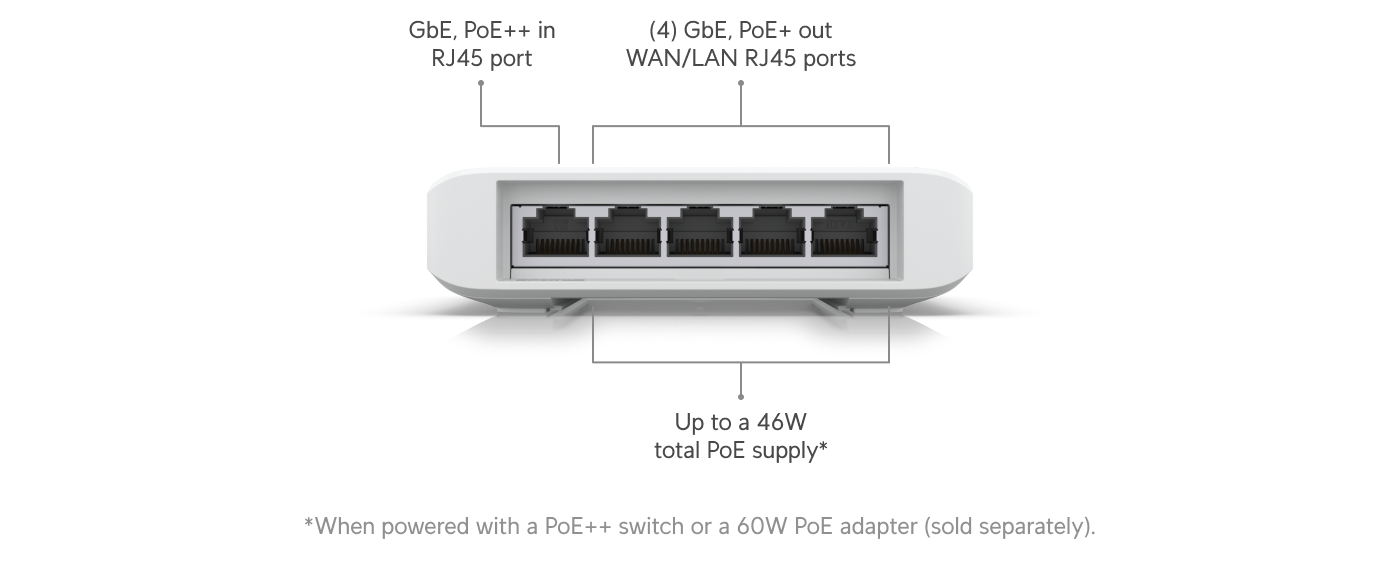

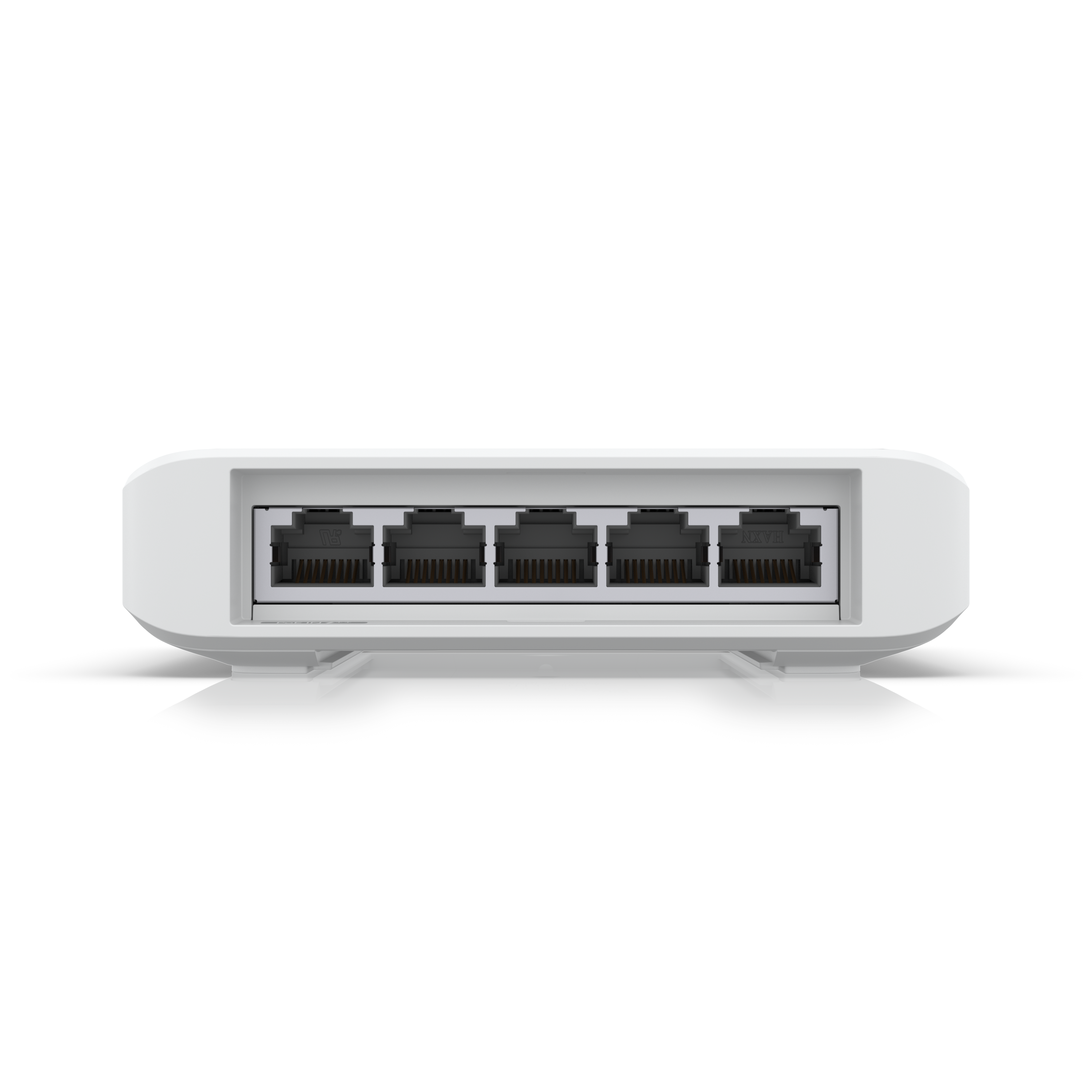

Port Layout:
- 1 GbE RJ45: 5 (4 PoE+; 1 PoE++)
- Speed: (1G/100M/10M)
Max. PoE Output: Up to PoE+
Total PoE Availability:
- PoE++ / 60W PoE adapter input: 46W
- PoE+ input: 20W
- PoE input: 8W
Form Factor: Compact desktop, wall, pole
Performance:
- Switching Capacity: 10 Gbps
- Total Non-Blocking Throughput: 5 Gbps
- Forwarding Rate: 7 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 2,000
Layer 2 Features:
- Egress Rate Limit
- Flow Control
- Port Isolation
- Port Mirroring
- Jumbo Frames
Hardware:
- PoE Ports:
  - PoE+: 4
  - PoE++: 1
- Max. PoE Wattage per Port (PoE+): 25W
- Max. Power Consumption:
  - 5W (Excluding PoE Output)
  - 51W (Including PoE Output)
- Power Method: PoE++
- Power Input Method: PoE
- Supported Voltage Range: 50–57V PoE
- Management: Ethernet
- Heat Dissipation: 17.1 BTU/hr (Excluding PoE Output)
- ? Outdoor Ready
- Weight: 230 g (8.1 oz)
- ESD Protection: Air/contact: ± 16kV
- Ambient Operating Temperature:
  - 46W PoE output: -40 to 55° C (-40 to 131° F)
  - 25W PoE output: -40 to 65° C (-40 to 149° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- ? NDAA Compliant
- Certifications: CE, FCC, IC, Anatel: 14502-20-08356
Software:
- Application Requirements: UniFi Network (Version 5.10.3 and later)

Q: Is setup instant?
A: Yes.
