Flex 10 GbE
Flex 10 GbE
10 GbE speeds with PoE input support
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

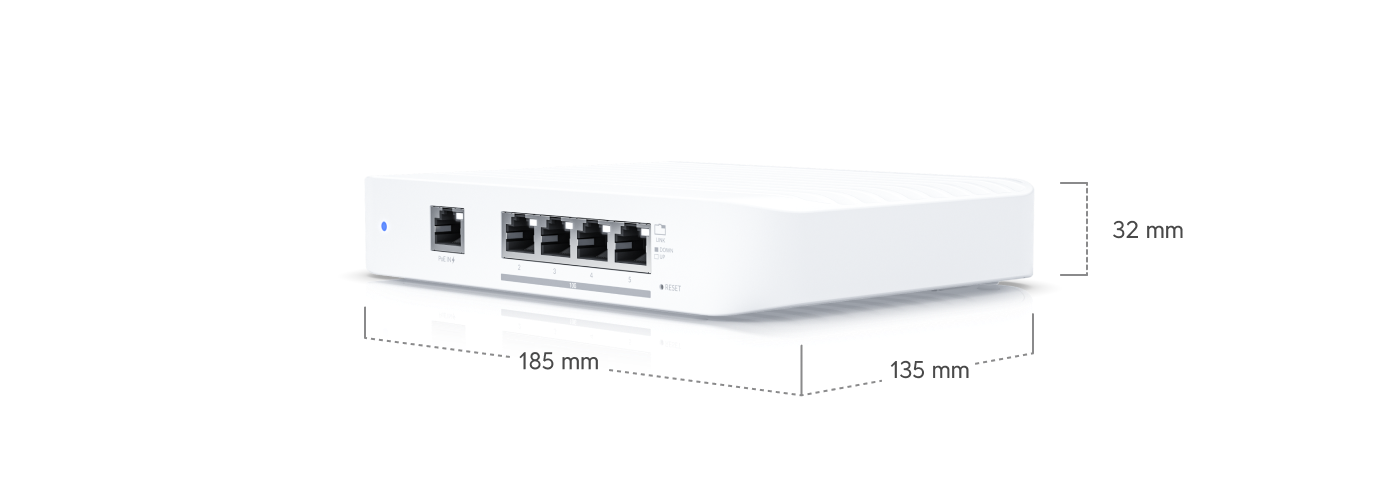

- Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")

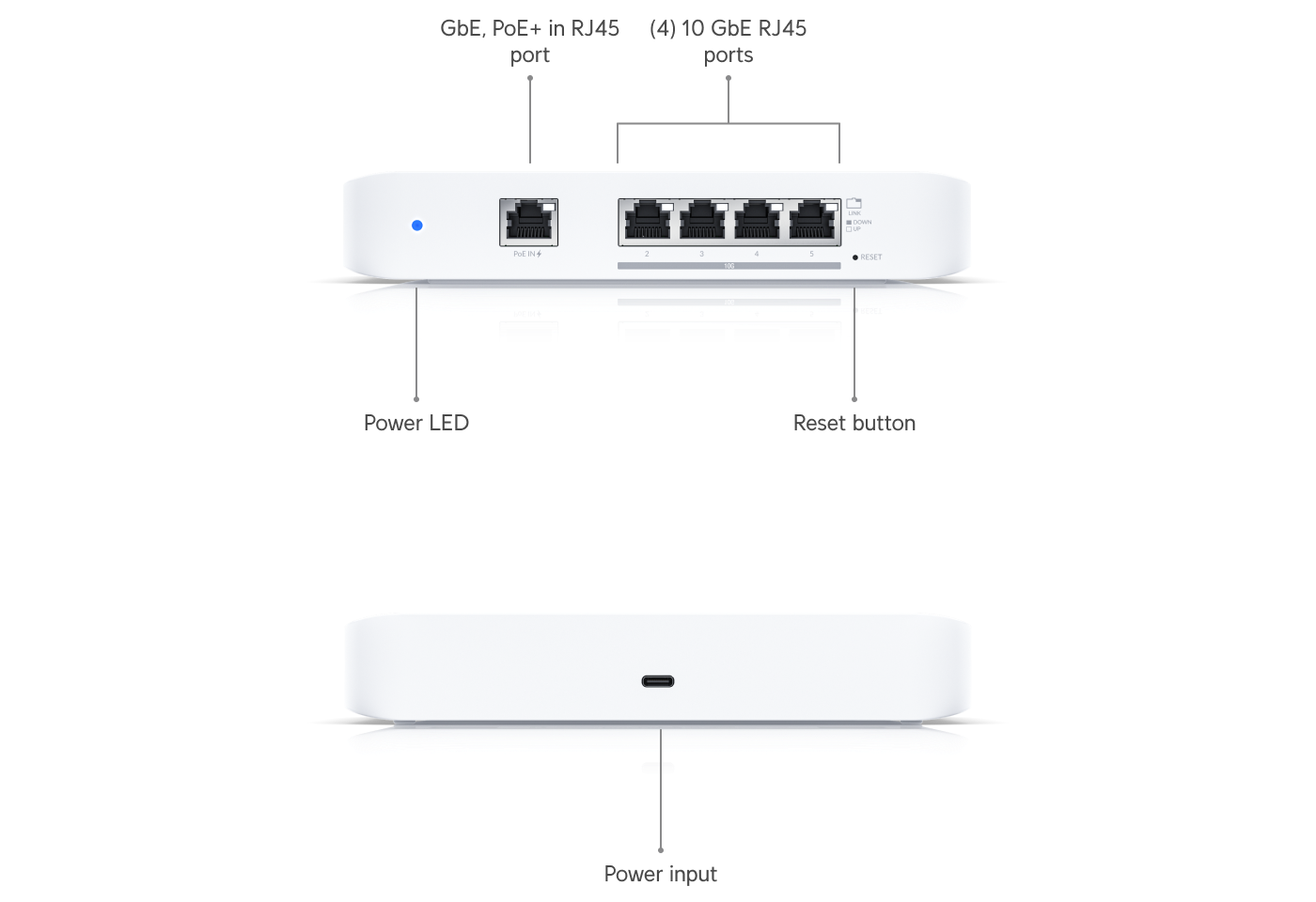

- Port Layout:
- 1 GbE RJ45: 1 (1G/100M/10M)
- 10 GbE RJ45: 4
- Form Factor: Compact desktop, wall
- Performance
- Switching Capacity: 82 Gbps
- Total Non-Blocking Throughput: 41 Gbps
- Forwarding Rate: 61 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- Packet Buffer Size: 1.5 MB
- Access Lists:
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- Max. Power Consumption: 25W
- Power Method:
- (1) PoE+
- (1) USB Type-C, 5V DC, 5A
- Power Input Method: USB Input, PoE
- Power Supply: AC/DC, external, 25W
- Supported Voltage Range:
- 4.8—5.2V DC/USB
- 44V—57V PoE
- Management: Ethernet
- Heat Dissipation: 85.3 BTU/hr
- Weight: 1.2 kg (2.7 lb)
- Enclosure Material: Polycarbonate
- ESD Protection: Air: ± 16kV, contact: ± 12kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 06606-25-08356
- Software
- Application Requirements: UniFi Network (Version 6.1.67 and later)
