Ultra
PoE+ output with versatile mounting
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

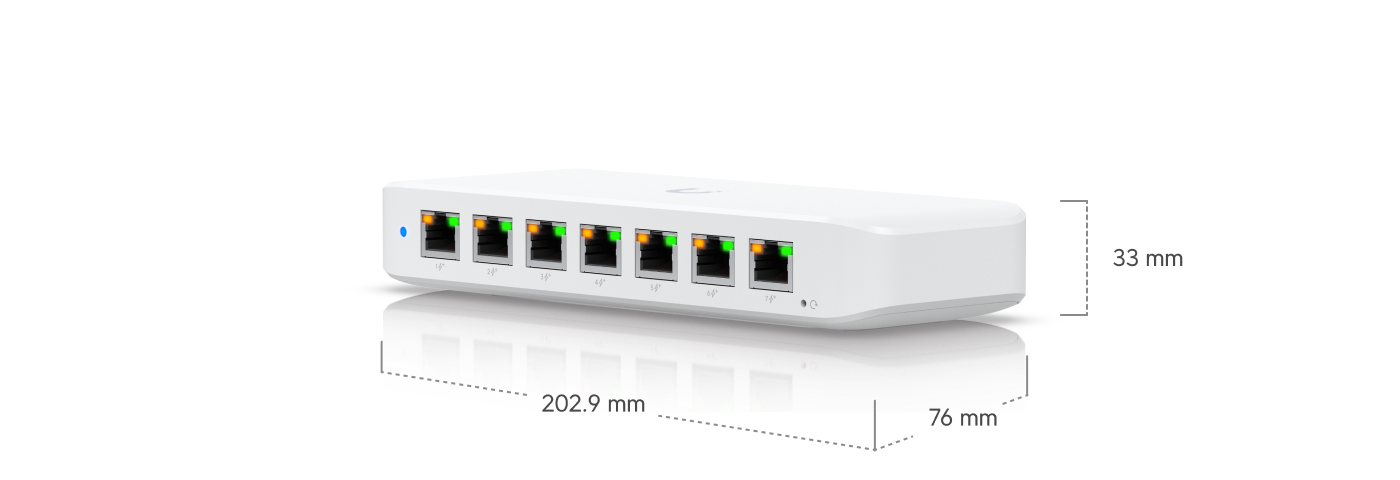

- Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")

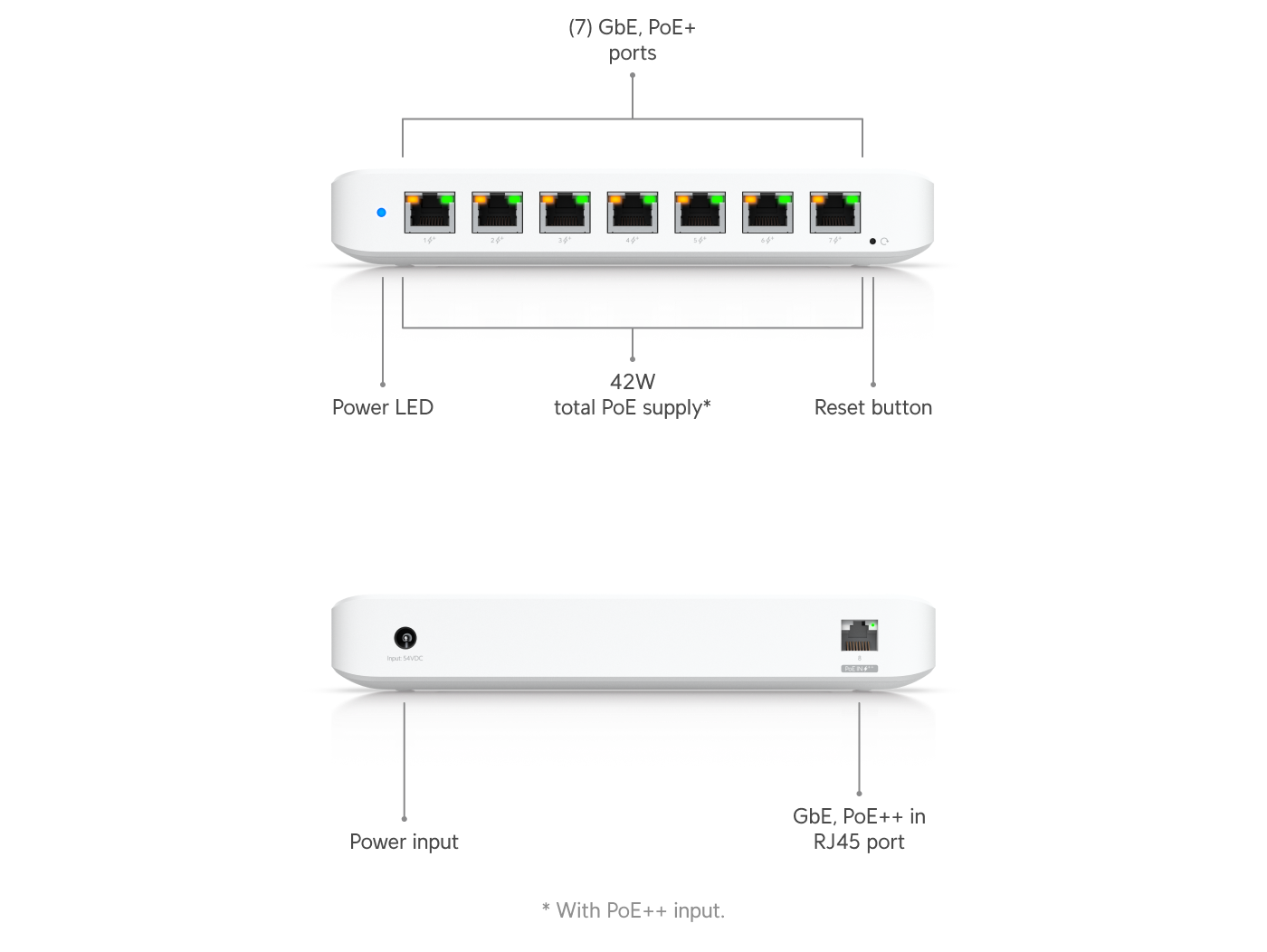

- Port Layout:
- 1 GbE RJ45: 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
- Max. PoE Output: Up to PoE+
- Total PoE Availability:
- PoE++ input: 42W
- PoE+ input: 16W
- 60W PoE adapter input: 42W
- 60W AC adapter input: 52W
- 210W AC adapter input: 202W
- Form Factor: Compact desktop, wall, magnetic
- Performance
- Switching Capacity: 16 Gbps
- Total Non-Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features
- STP & RSTP: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- Loop Protection: Yes
- Hardware
- PoE Ports:
- Max. PoE Wattage per Port by PSE:
- Max. Power Consumption:
- 9W (Excluding PoE Output) with PoE input
- 8W (Excluding PoE Output) with adapter input
- 210W (Including PoE Output) with 210W AC adapter input
- Power Method:
- (1) AC/DC adapter (Excluded)
- (1) PoE++
- Power Input Method: DC Input, PoE
- Supported Voltage Range: 50–57V DC/PoE
- Management: Ethernet
- Heat Dissipation: 31 BTU/hr (Excluding PoE Output)
- Weight:
- Device: 320 g (11.3 oz)
- Wall mount: 45 g (1.6 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature:
- PoE++ input: -30 to 60° C (-22 to 140° F)
- 60W AC adapter input: -20 to 45° C (-4 to 113° F)
- 210W AC adapter input: -20 to 60° C (-4 to 140° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 06367-24-08356
- Software
- Application Requirements: UniFi Network (Version 8.0.28 and later)
