Lite 8 PoE
Lite 8 PoE
GbE ports with up to PoE+ output
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

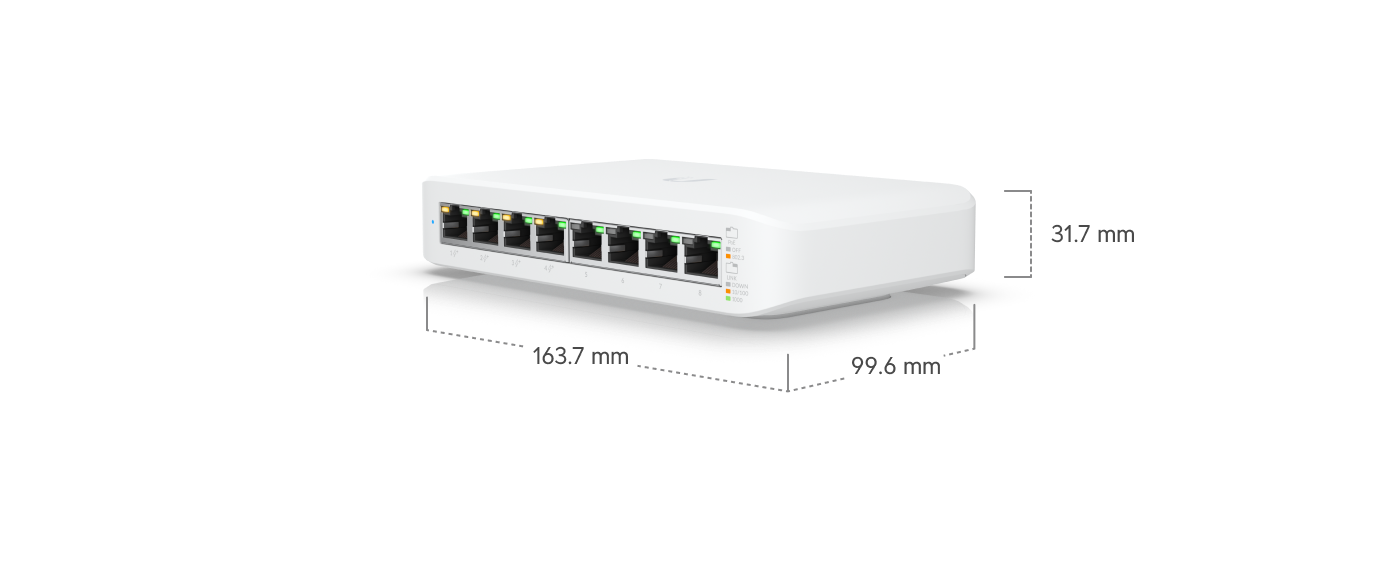

- Dimensions: 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")

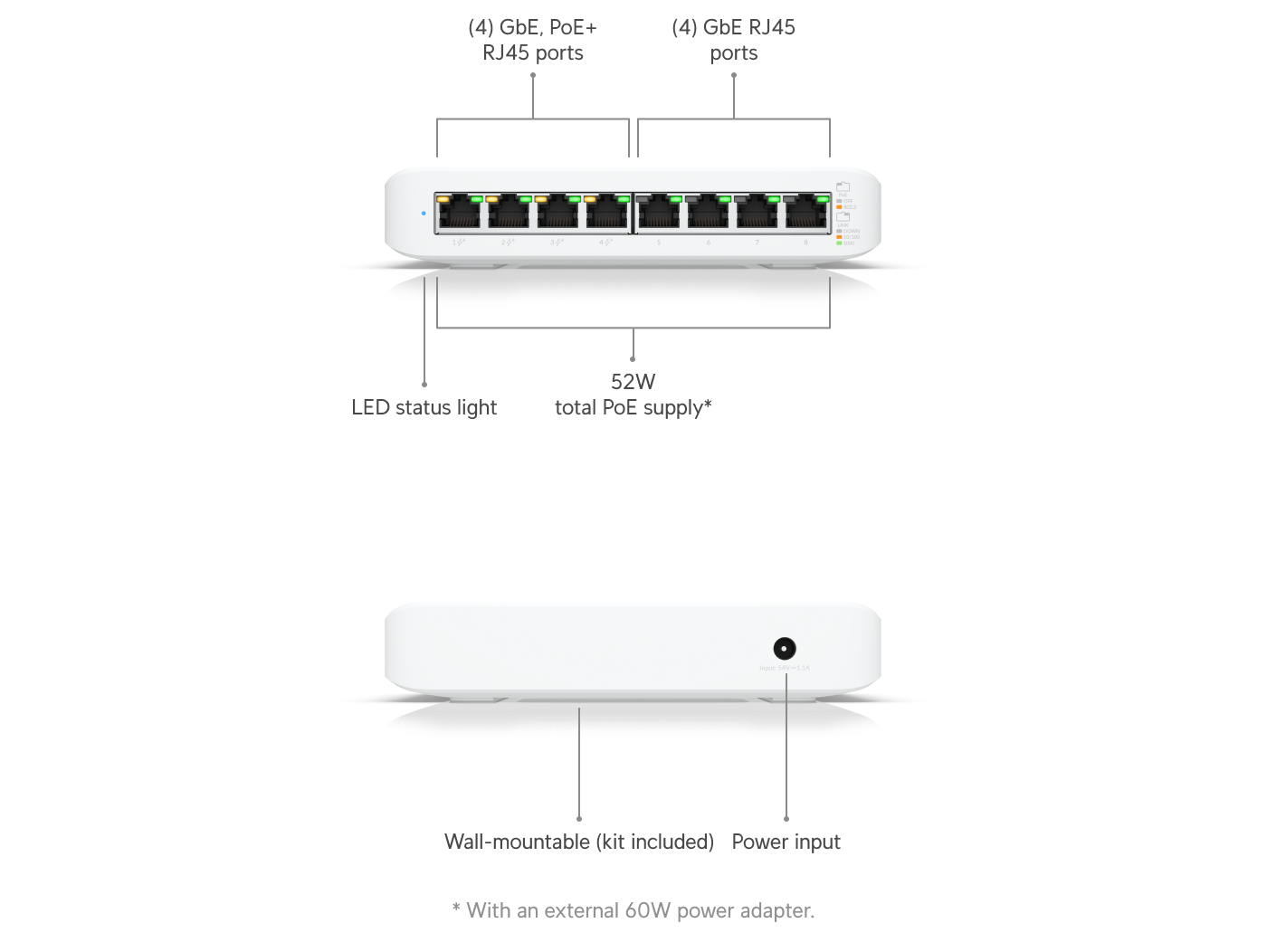

- Port Layout:
- 1 GbE RJ45: 8 (4 PoE+) (1G/100M/10M)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 52W
- Form Factor: Compact desktop, wall
- Performance
- Switching Capacity: 16 Gbps
- Total Non-Blocking Throughput: 8 Gbps
- Forwarding Rate: 12 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 8,000
- Packet Buffer Size: 0.5 MB
- Access Lists:
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- PoE Ports:
- Max. PoE Wattage per Port by PSE:
- Max. Power Consumption:
- 8W (Excluding PoE Output)
- 60W (Including PoE Output)

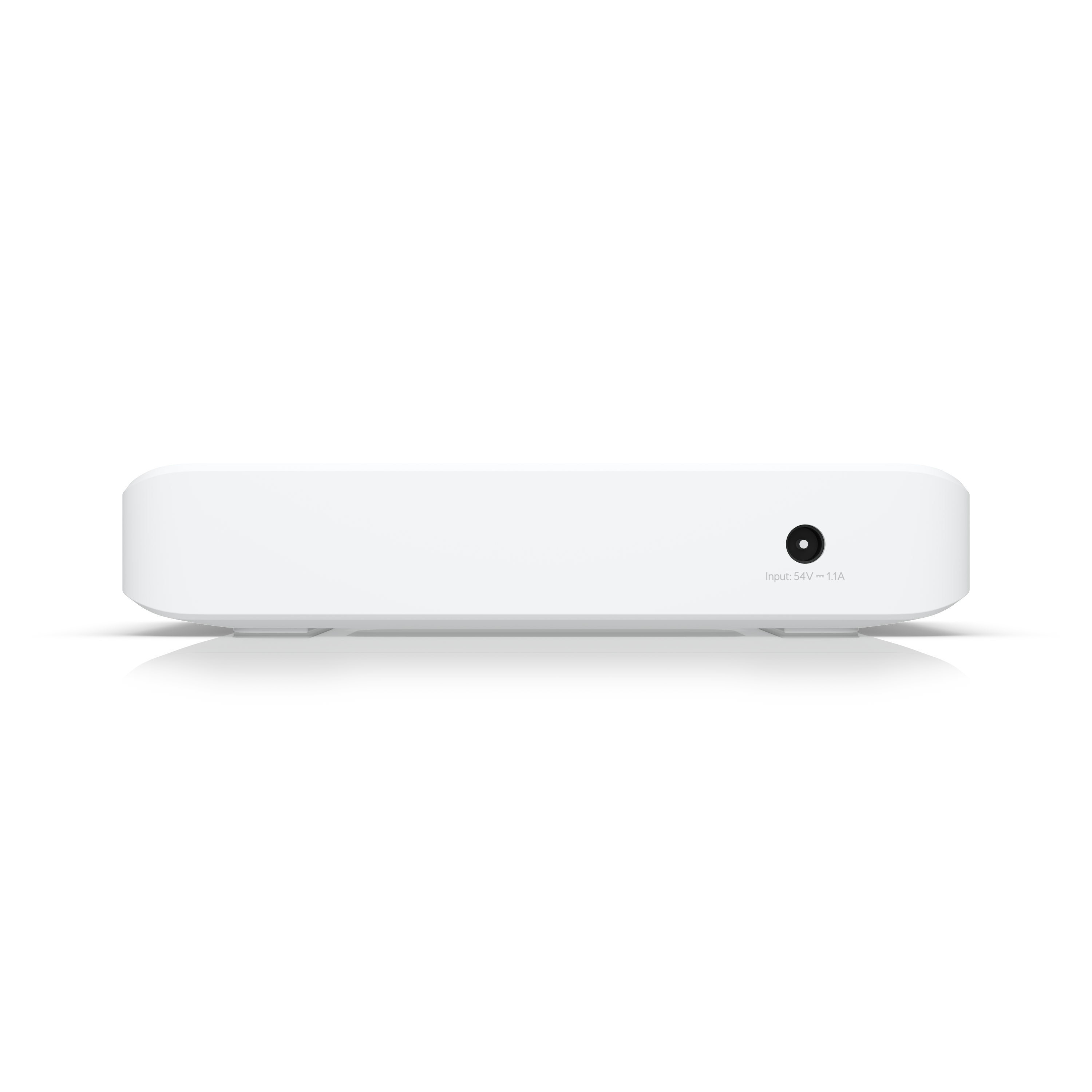

- Power Method: AC/DC Adapter (included)
- Power Input Method: DC input
- Power Supply: AC/DC, external, 60W
- Supported Voltage Range: 50–57V DC
- Management: Ethernet
- Heat Dissipation: 27.3 BTU/hr (Excluding PoE Output)
- Weight: 295 g (10.4 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 04479-21-08356
- Software
- Application Requirements: UniFi Network (Version 7.2.94 and later)
Q: Is setup instant?
A: Yes.
