Enterprise 8 PoE
Enterprise 8 PoE
2.5 GbE ports with PoE+ output
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

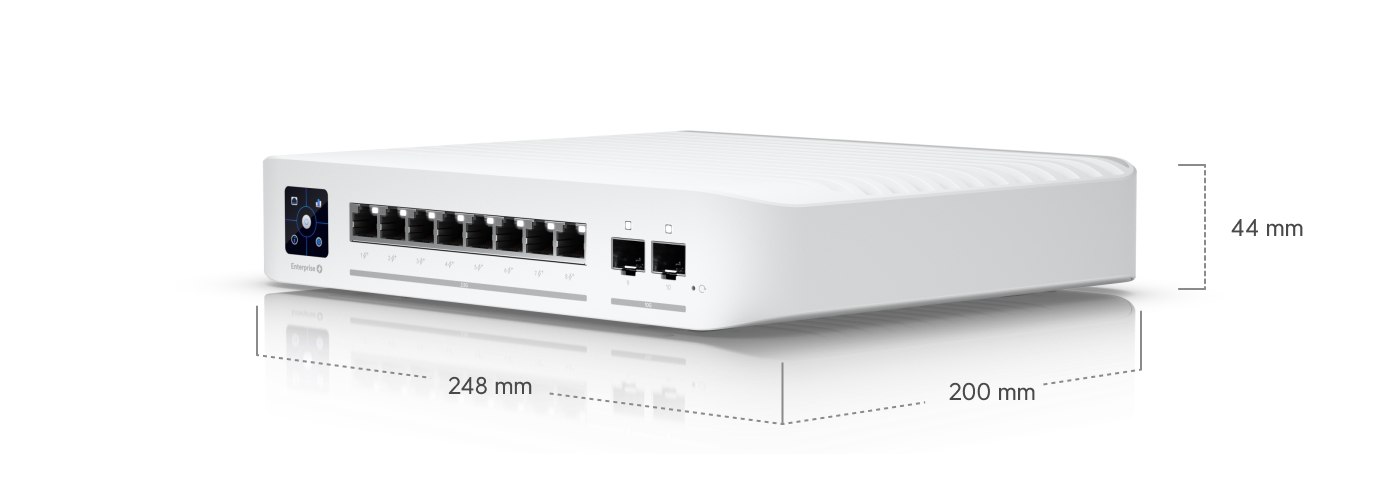

- Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

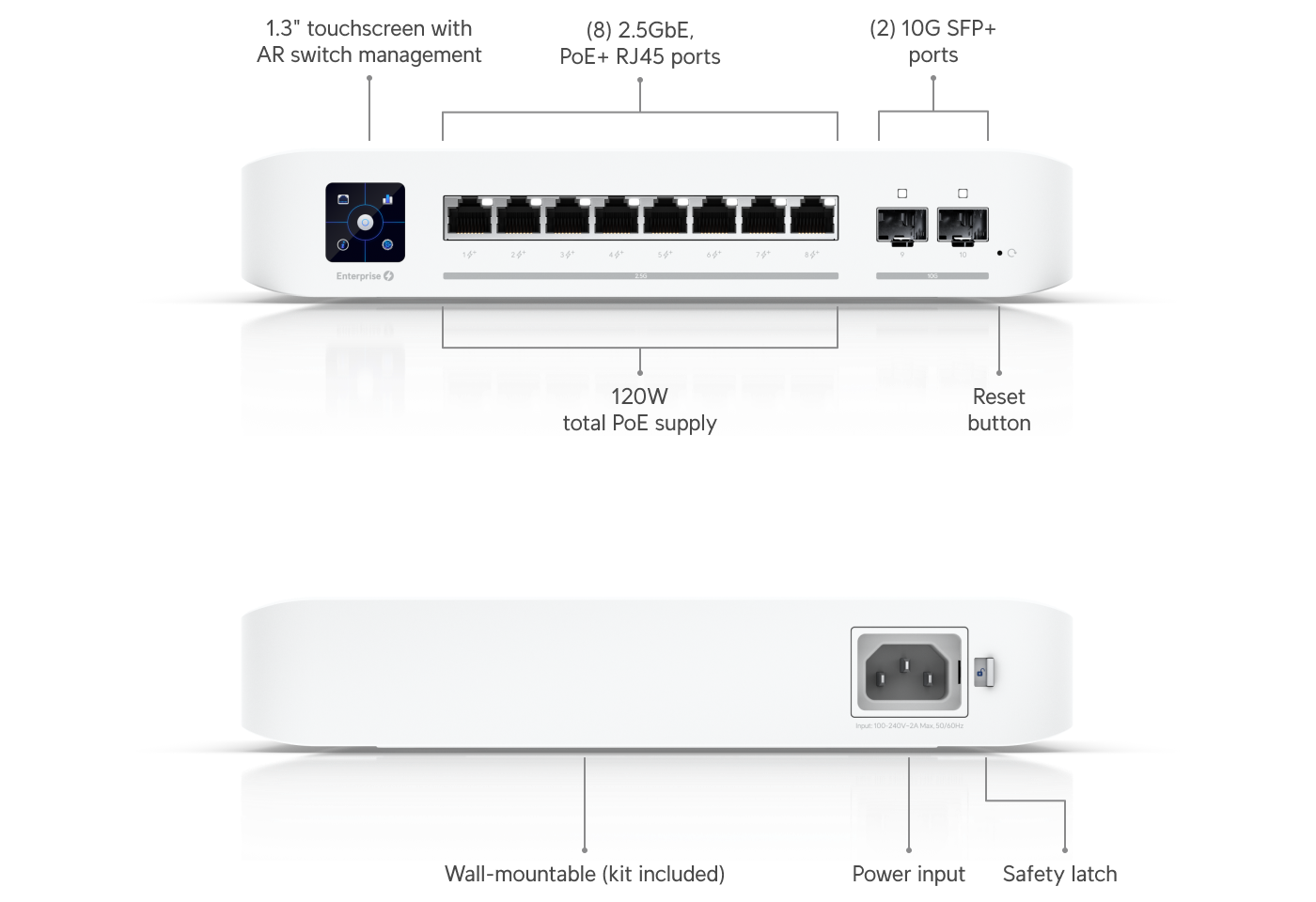

- Port Layout:
- 2.5 GbE RJ45: 8 (All PoE+) (2.5G/1G/100M)
- 10G SFP+: 2 (10G/1G)
- Max. PoE Output: Up to PoE+
- Total PoE Availability: 120W
- Layer 3: Yes
- Form Factor: Compact desktop
- Performance
- Switching Capacity: 80 Gbps
- Total Non-Blocking Throughput: 40 Gbps
- Forwarding Rate: 60 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- L3 Table Size:
- ARP Entries: 512
- IPv4 Routes: 512
- IPv4 Static Routes: 256
- Packet Buffer Size: 1.5 MB
- Access Lists:
- Layer 3 Features
- DHCP Server (Local Networks): Yes
- Inter-VLAN Routing: Yes
- Static Routing: Yes
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- PoE Ports: PoE+ (8)
- Max. PoE Wattage per Port: 32W
- Max. Power Consumption:
- 30W (Excluding PoE Output)
- 150W (Including PoE Output)
- Power Method: 100–240V AC, 50/60 Hz
- Power Input Method: AC input
- Power Supply: Internal 150W
- Supported Voltage Range: 100–240V AC
- Management: Ethernet
- Heat Dissipation: 102.4 BTU/hr
- Weight: 2.4 kg (5.3 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Supported Rack Depth: 400~1200 mm (15.7–47.2")
- LCM Display: 1.3" touchscreen
- ESD Protection: Yes
- Ambient Operating Temperature: -5 to 45°C
- Ambient Operating Humidity: 10–90%
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Software
- Application Requirements: UniFi Network (Version 6.3.51 and later)
