Flex 2.5G
Flexible 2.5G switch with 10 GbE RJ45/SFP+ uplink
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

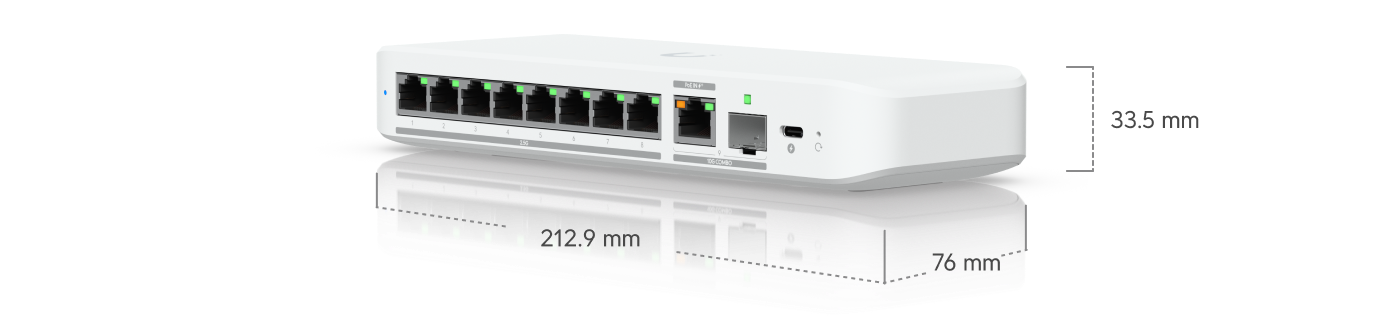

- Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

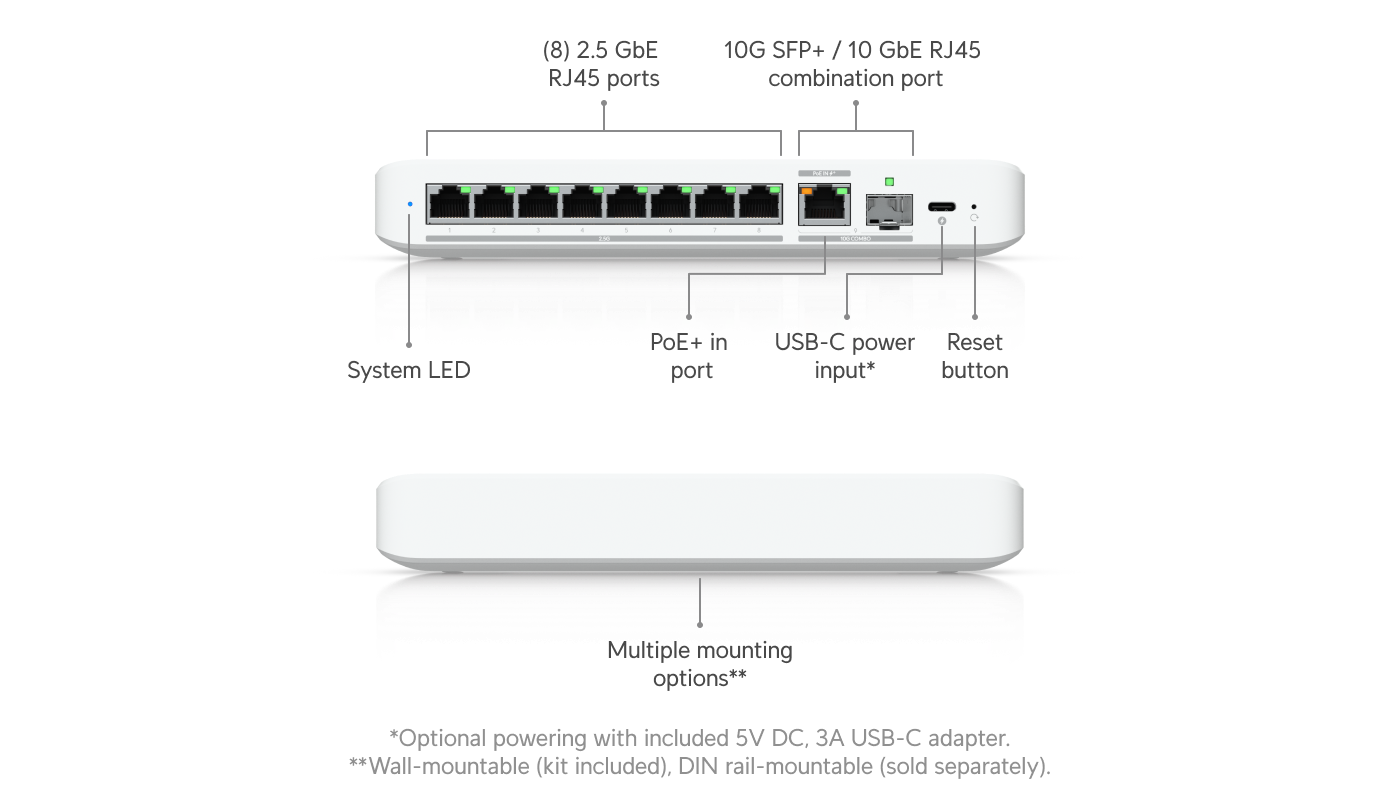

- Port Layout:
- 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
- 10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)
- 10G SFP+: 1 (10G/1G)
- Form Factor: Compact Desktop, wall, DIN, magnetic
- Performance
- Switching Capacity: 60 Gbps
- Total Non-Blocking Throughput: 30 Gbps
- Forwarding Rate: 45 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features
- STP & RSTP: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- Loop Protection: Yes
- Hardware
- Max. Power Consumption:
- 14W with PoE input
- 14W with AC adapter input
- Power Method:
- USB Type-C, 5V DC, 3A
- PoE+
- Power Input Method: USB Input / PoE
- Power Supply: External 15W
- Supported Voltage Range: 4.8—5.2V DC / 44V—57V PoE
- Management: Ethernet
- Weight: 395 g (0.87 lb)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature: -20 to 45°C
- Ambient Operating Humidity: 10–90%
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Software
- Application Requirements: UniFi Network (Version 9.0.114 and later)
