Flex 2.5G PoE
Flex 2.5G PoE
Flexible 2.5G PoE++ switch with 10 GbE RJ45/SFP+ uplink
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

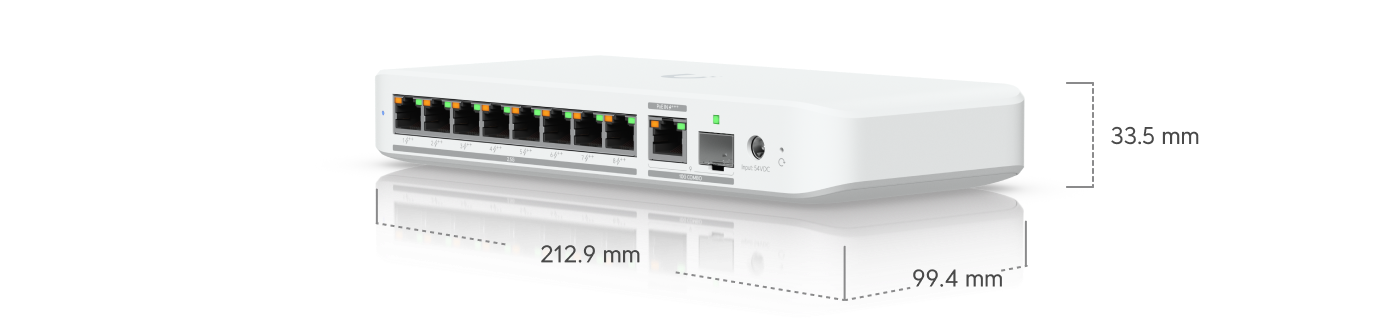

- Dimensions: 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

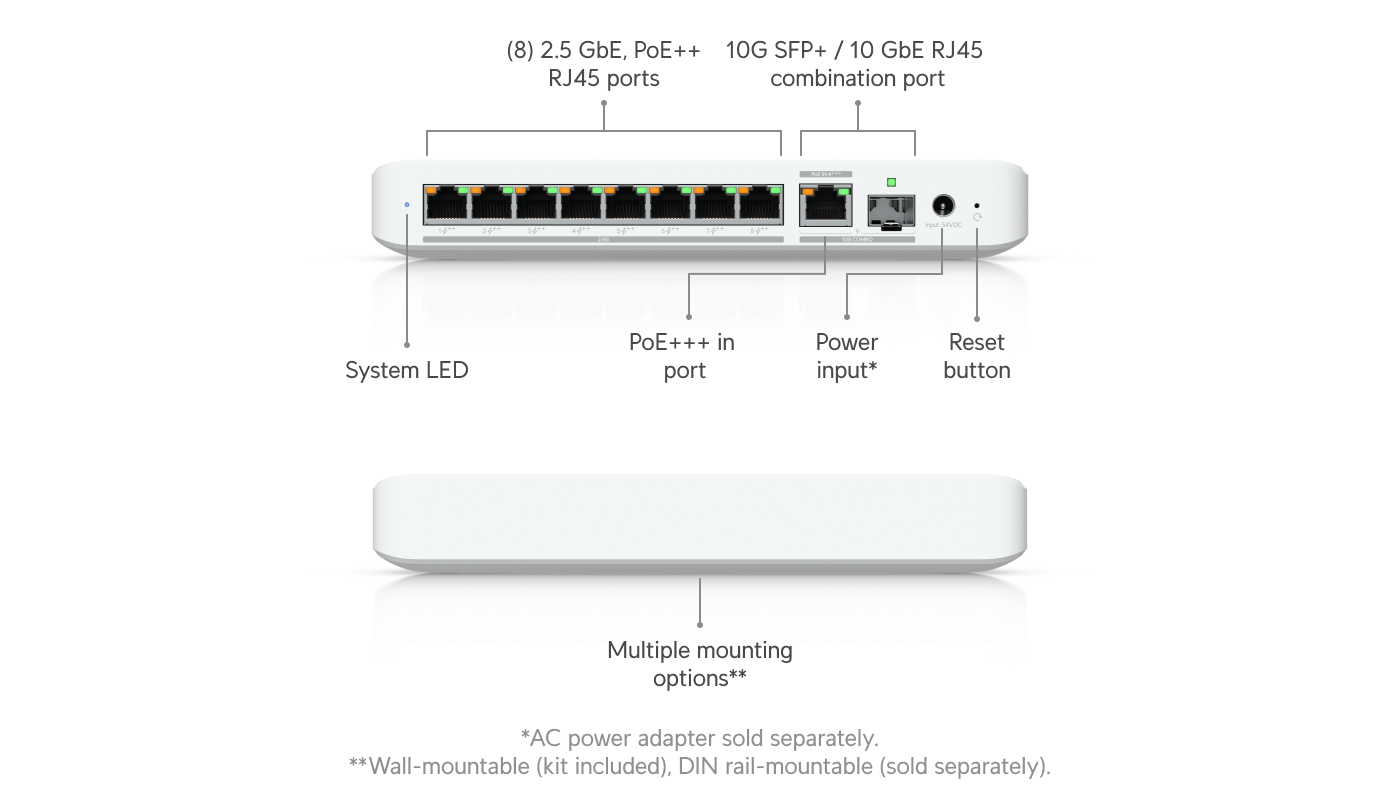

- Port Layout:
- 2.5 GbE RJ45: 8 (All PoE++) (2.5G/1G/100M/10M)
- 10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M)
- 10G SFP+: 1 (10G/1G)
- Max. PoE Output: Up to PoE++
- Total PoE Availability:
- PoE+++ input: 76W
- PoE++ input: 46W
- PoE+ input: 16W
- 210W AC adapter input: 196W

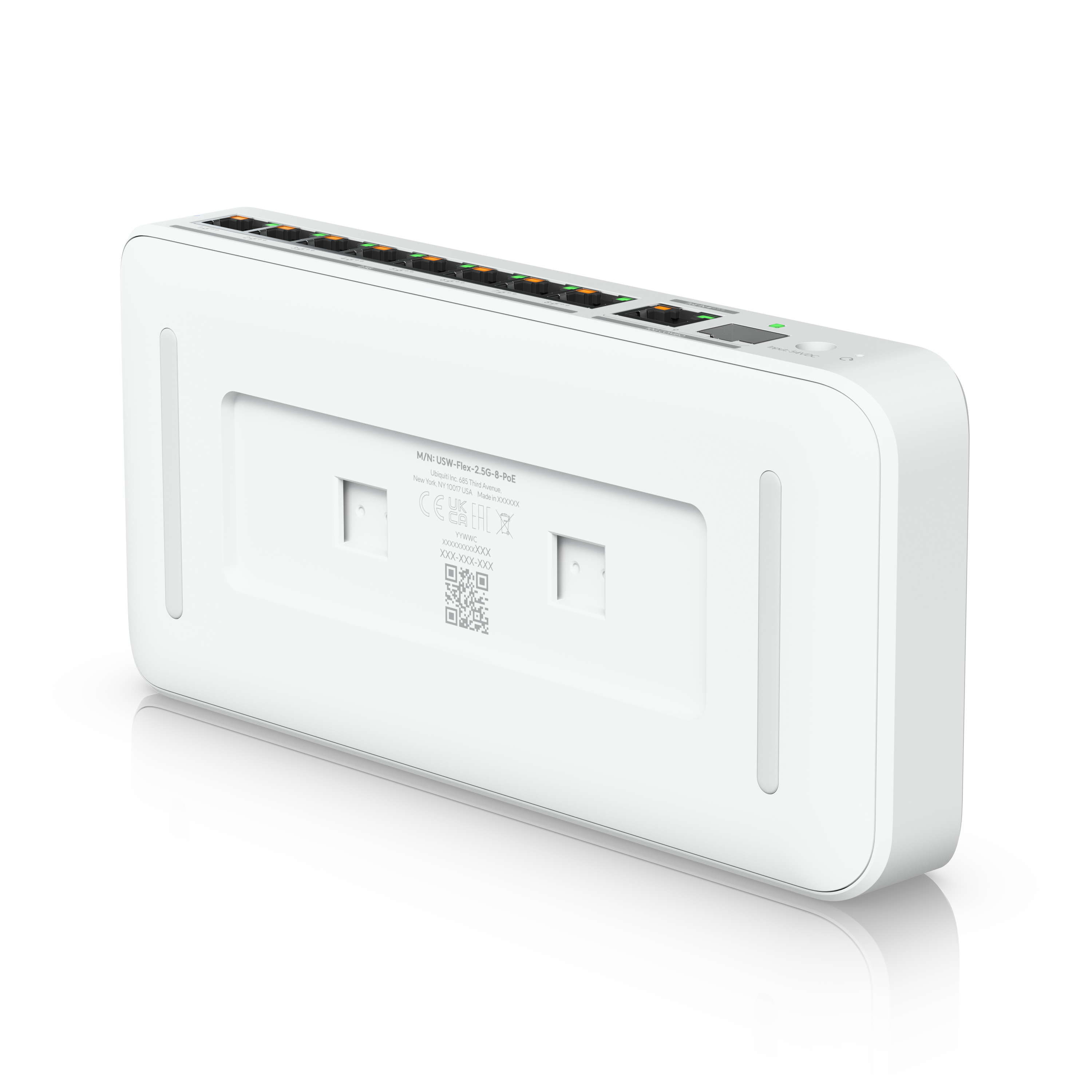

- Form Factor: Compact Desktop, wall, DIN, magnetic
- Performance
- Switching Capacity: 60 Gbps
- Total Non-Blocking Throughput: 30 Gbps
- Forwarding Rate: 45 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Layer 2 Features
- STP & RSTP: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- Loop Protection: Yes
- Hardware
- PoE Ports: PoE++ (8)
- Max. PoE Wattage per Port:
- PoE: 15.4W
- PoE+: 32W
- PoE++: 64W
- Max. Power Consumption:
- 14W (Excluding PoE output) with PoE input
- 17W (Excluding PoE output) with AC adapter input
- 210W (Including PoE output)
- Power Method:
- AC/DC adapter (Excluded)
- PoE+++
- Power Input Method: DC Input / PoE
- Supported Voltage Range: 50–57V DC/PoE
- Management: Ethernet
- Weight: 567 g (20 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature: -20 to 45°C
- Ambient Operating Humidity: 10–90%
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
- Software
- Application Requirements: UniFi Network (Version 9.0.114 and later)
