Pro XG 8 PoE
Pro XG 8 PoE
Compact, Professional-grade 8-port Etherlighting™ switch
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

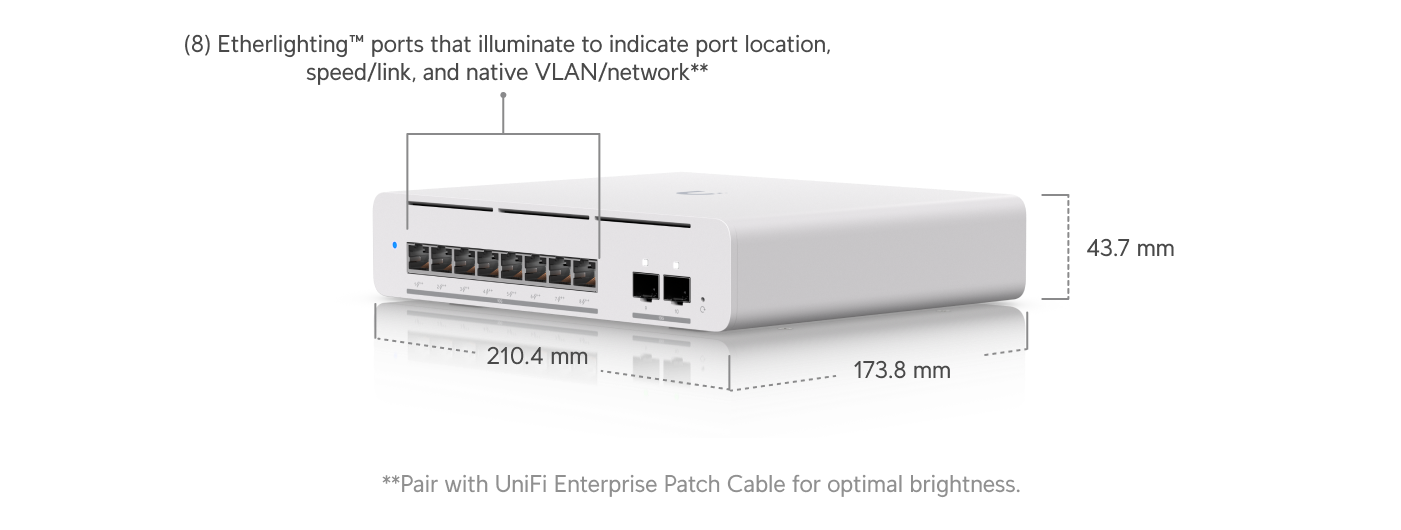

- Dimensions: 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")

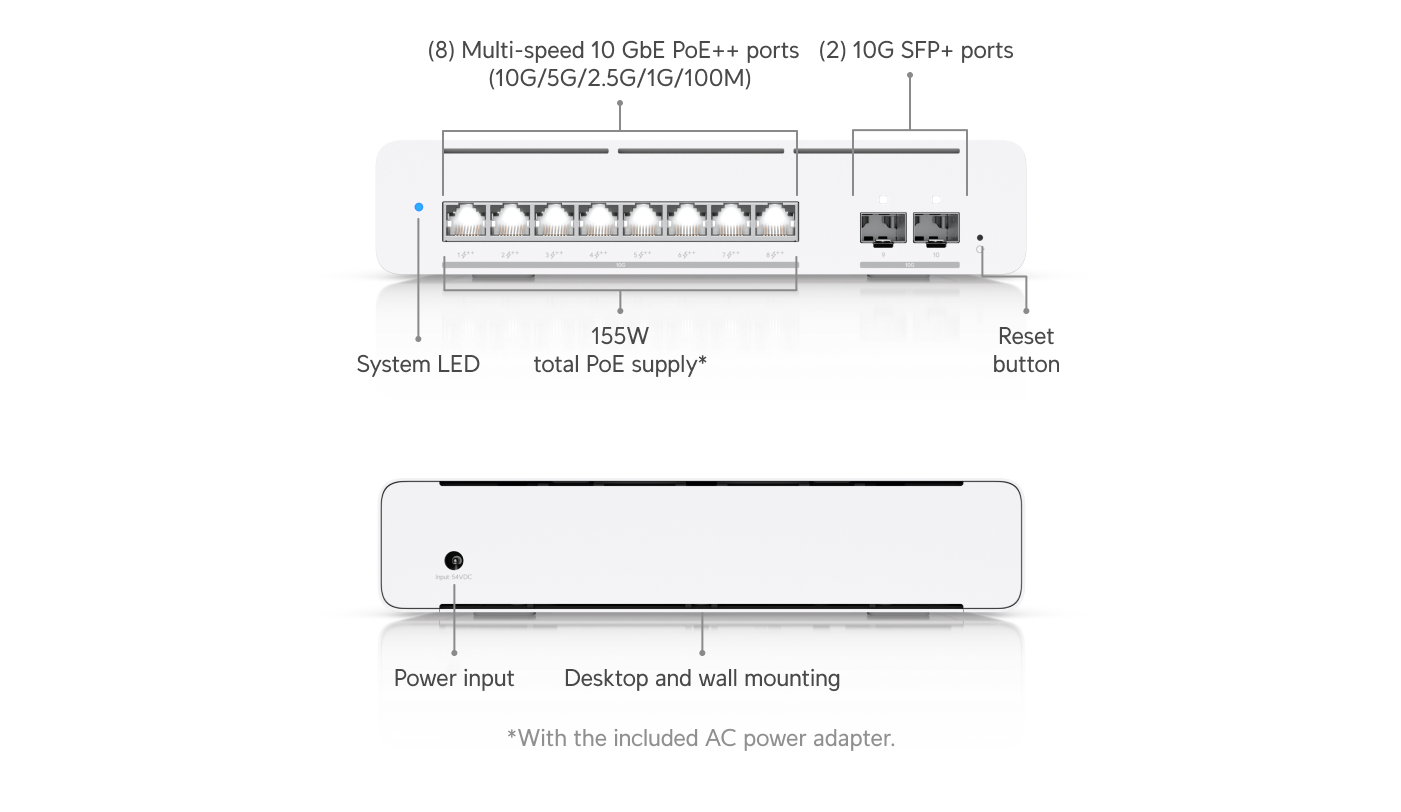

- Port Layout:
- 10 GbE RJ45: 8 (All PoE++) (10G/5G/2.5G/1G/100M)
- 10G SFP+: 2 (10G/1G)
- Max. PoE Output: Up to PoE++
- Total PoE Availability: 155W
- Layer 3: Yes
- Form Factor: Compact desktop, wall
- Etherlighting™: Yes
- Performance
- Switching Capacity: 200 Gbps
- Total Non-Blocking Throughput: 100 Gbps
- Forwarding Rate: 149 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- L3 Table Size:
- ARP Entries: 12,000
- IPv4 Routes: 12,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
- Access Lists:
- Layer 3 Features
- DHCP Server (Local Networks): Yes
- DHCP Relay: Yes
- Inter-VLAN Routing: Yes
- Static Routing: Yes
- Layer 2 Features
- LACP Port Aggregation: Yes
- STP & RSTP: Yes
- QoS (DSCP): Yes
- Pro AV Profiles: Yes
- Advanced IGMP Configuration: Yes
- IGMP Snooping: Yes
- 802.1X Control: Yes
- MAC-Based ACLs & Device Isolation: Yes
- DHCP Snooping & Guarding: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- MAC Address Blocking: Yes
- IP-Based ACLs & Network Isolation: Yes
- MAC-Based Port Restriction: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- LLDP-MED: Yes
- Voice VLAN: Yes
- Loop Protection: Yes
- Virtual Network Override: Yes
- Hardware
- PoE Ports: PoE++ (8)
- Max. PoE Wattage per Port:
- PoE: 15.4W
- PoE+: 30W
- PoE++: 60W
- Max. Power Consumption: 61W (Excluding PoE), 210W (Including PoE)
- Power Method: AC/DC Adapter
- Power Input Method: DC input
- Power Supply: External 210W
- Supported Voltage Range: 50–57V DC
- Management: Ethernet
- Weight: 1.6 kg (3.5 lb)
- Enclosure Material: SGCC steel
- Mount Material: Polycarbonate
- ESD Protection: Yes
- Ambient Operating Temperature: -5 to 45°C
- Ambient Operating Humidity: 10–90%
- Etherlighting™ (Ethernet): Yes
- Etherlighting™ (SFP+): Yes
- LEDs (System): Yes
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel
- Software
- Application Requirements: UniFi Network (Version 9.0.114 and later)
