UNAS Pro
10G networking for large-scale file storage and sharing
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

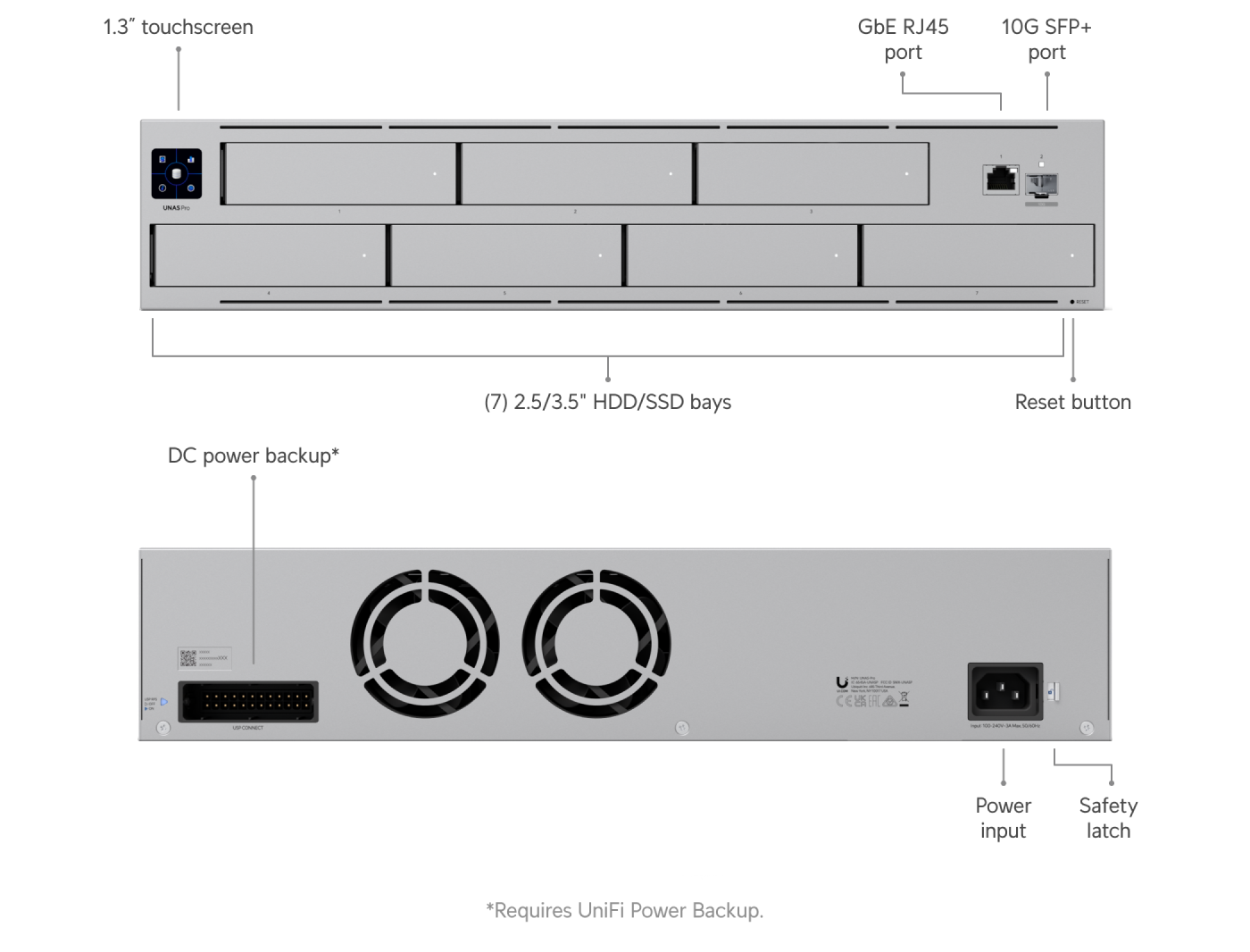

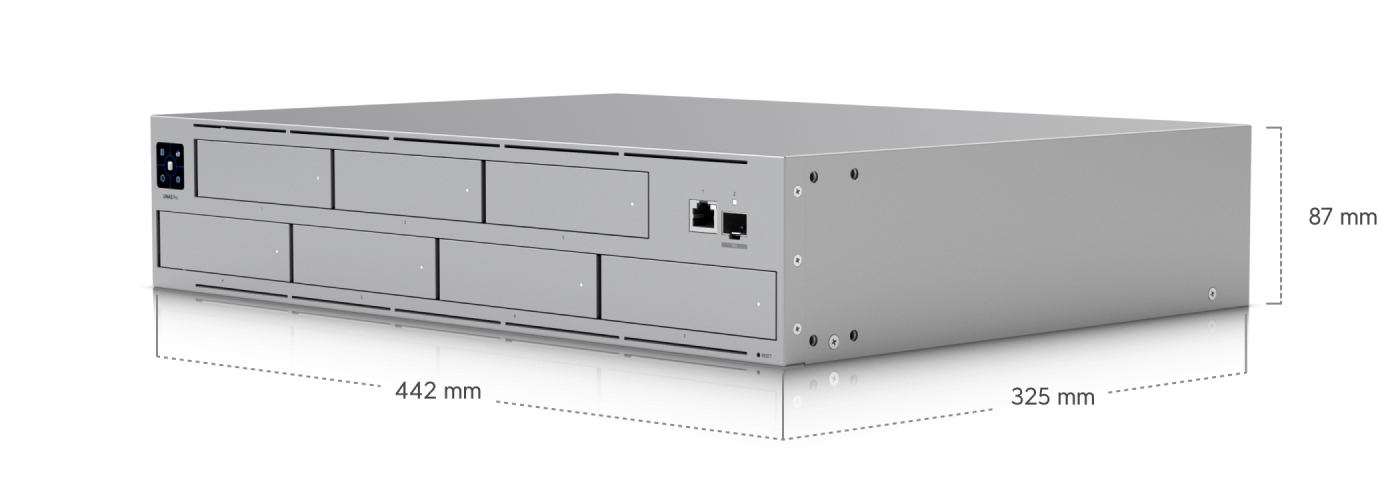

- Dimensions: 442.4 x 325 x 87.4 mm (17.4 x 12.8 x 3.4")
- Storage Capacity: (7) 2.5/3.5" drive bays
- Networking Interface:
- (1) 10G SFP+ (10G/1G)
- (1) GbE RJ45 (1G/100M/10M)
- Power Redundancy: Yes
- Form Factor: Rack mount (2U)
- Hardware
- Hard Drive Capacity: (7) 2.5/3.5" HDD / SSD support
- Max. Power Budget for Drives: 135W
- Max. Power Consumption: 160W
- Power Method:
- (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
- (1) USP-RPS DC input, 11.5V DC, 13.91A
- Power Supply: AC/DC, internal, 200W
- Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
- Memory: 8 GB
- Management: Ethernet
- RF Interface: Bluetooth 4.1
- Display: 1.3" touchscreen
- Weight:
- Without mounting brackets: 9.2 kg (20.3 lb)
- With mounting brackets: 9.5 kg (20.8 lb)
- Enclosure Material: SGCC steel
- Mount Material: SGCC steel
- Supported Rack Depth:
- 482.6 mm (19") four-post racks
- Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
- LEDs:
- Ethernet: Yes
- SFP+: Yes
- HDD: Yes
- RPS: Yes
- Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: FCC, CE, IC, Anatel: 01886-25-08356
- Software
- Application Requirements:
- UniFi Drive
- Version 1.16.0 and later
- Supported File Protocols:
- Supported Features on unifi.ui.com:
- RAID Type:
- RAID Group: Multiple
- Hot Spare Support: Yes
- Personal Drive & Shared Drive: Yes
- File Encryption: Yes
- Backup to Remote UNAS: Yes
- Backup to CIFS/SMB Server: Yes
- Backup to Cloud Services: Yes (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
- Snapshots: Yes
- Share Links: Yes
- Time Machine Backup: Yes
- Client App Support: Yes
- User Groups: Yes
