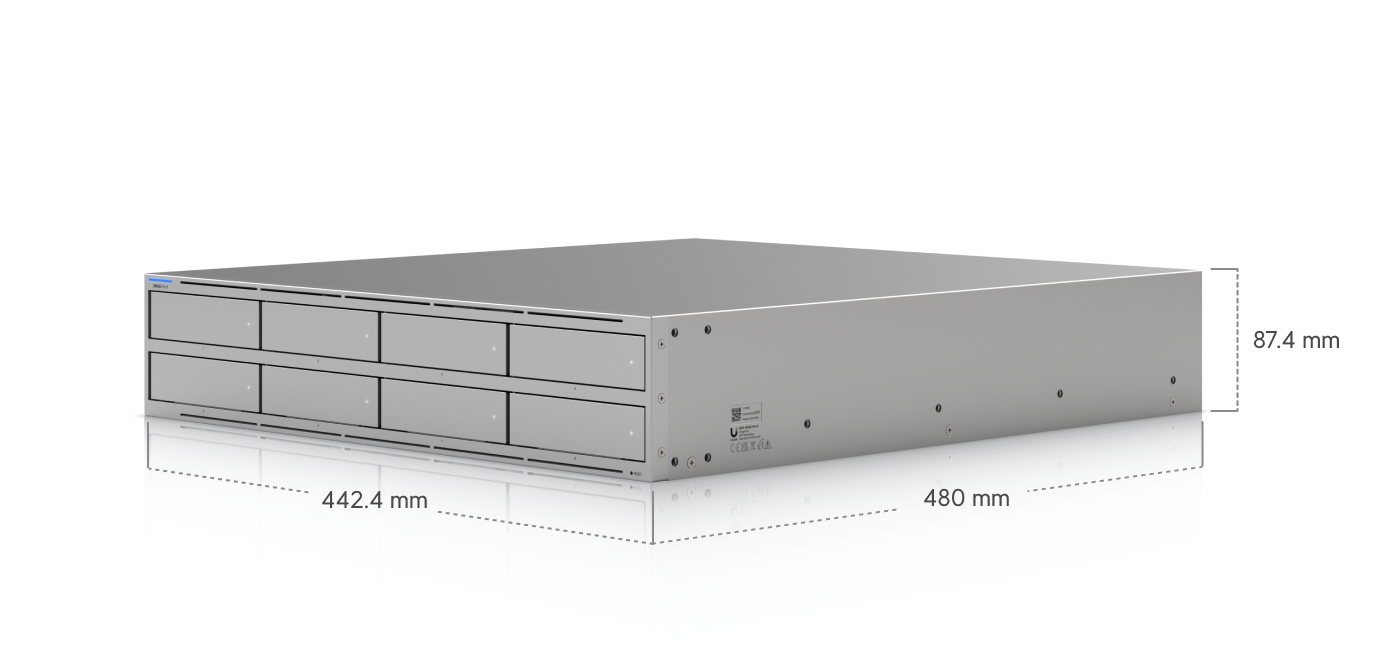

Dimensions: 442.4 x 480 x 87.4 mm (17.4 × 18.9 × 3.4")
Storage Capacity:

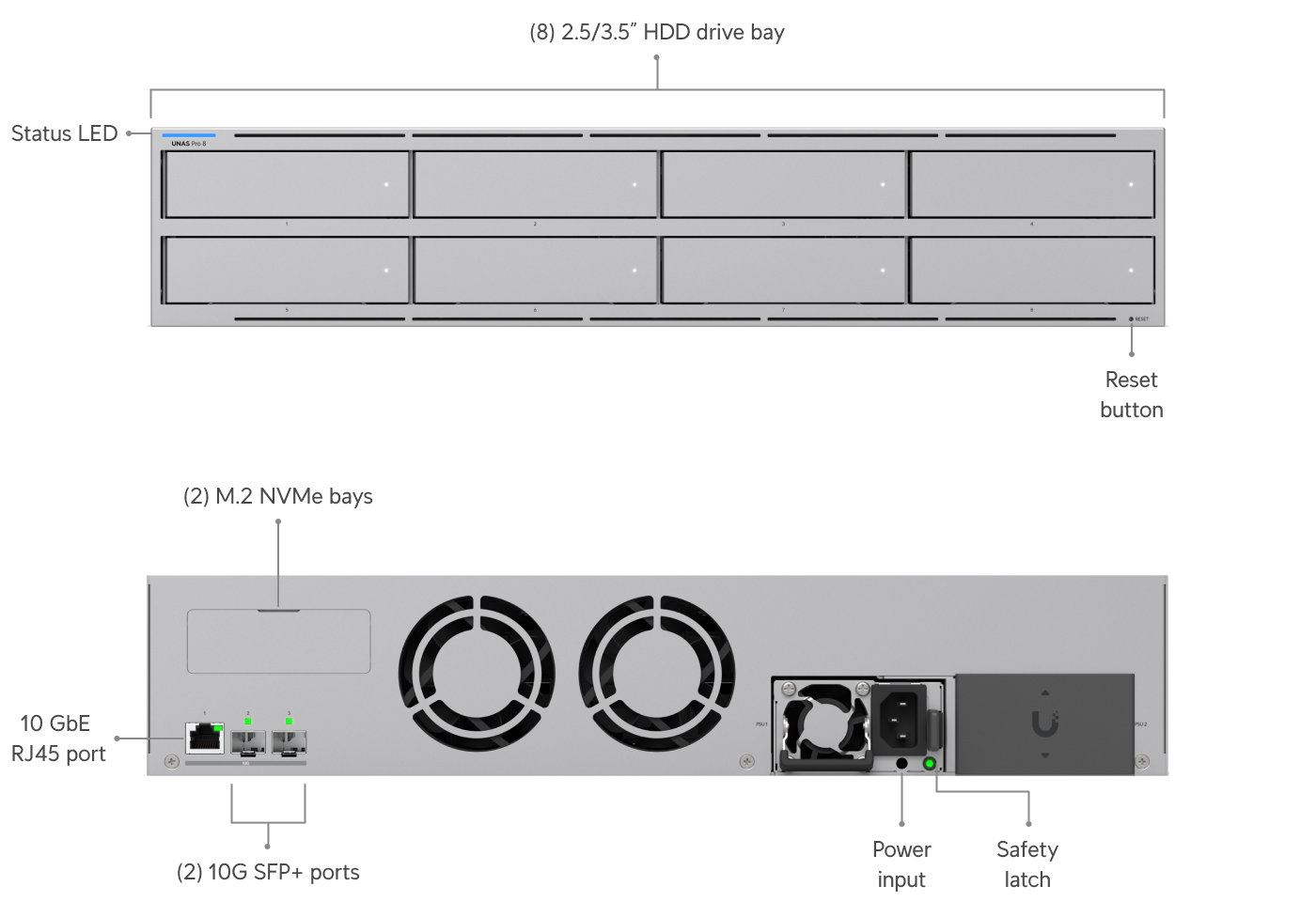

(8) 2.5/3.5" drive bays
(2) M.2 NVMe bays
Networking Interface:
(2) 10G SFP+ (10G Only)
(1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
Power Redundancy: Yes
Form Factor: Rack mount (2U)
Hardware
Hard Drive Capacity:
(8) 2.5/3.5" HDD / SSD support
(2) M.2 NVMe SSD support
Max. Power Budget for Drives: 225W
Max. Power Consumption: 250W
Power Method: (2) AC input, Hot-swappable power modules
Power Supply: (2) Hot-swappable AC/DC 550W power modules
Processor: Quad-Core ARM® Cortex®-A57 at 2.0 GHz
Memory: 16 GB
Management: Ethernet
RF Interface: Bluetooth 4.1
Weight: 11.5 kg (25.35 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel

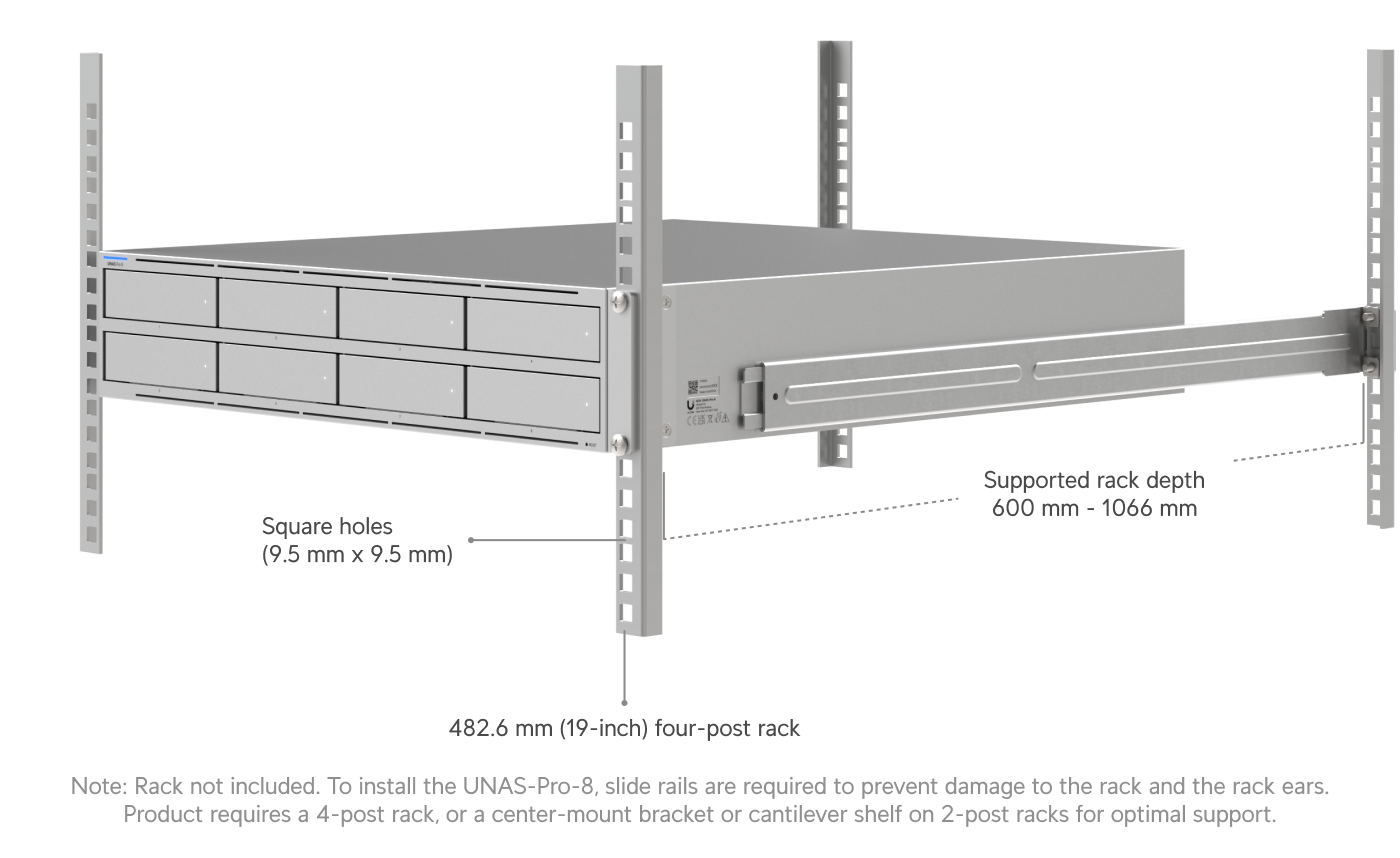

Supported Rack Depth: The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm), posts depths ranging from 600–1066 mm (23.6–42")
LEDs:
Ethernet: Yes
SFP+: Yes
HDD: Yes
System: Yes
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
