In the Box:
- 1 × Gate Hub
- 1 × Intercom
- 1 × PoE++ Adapter
- 2 × 2-wire PoE Extenders

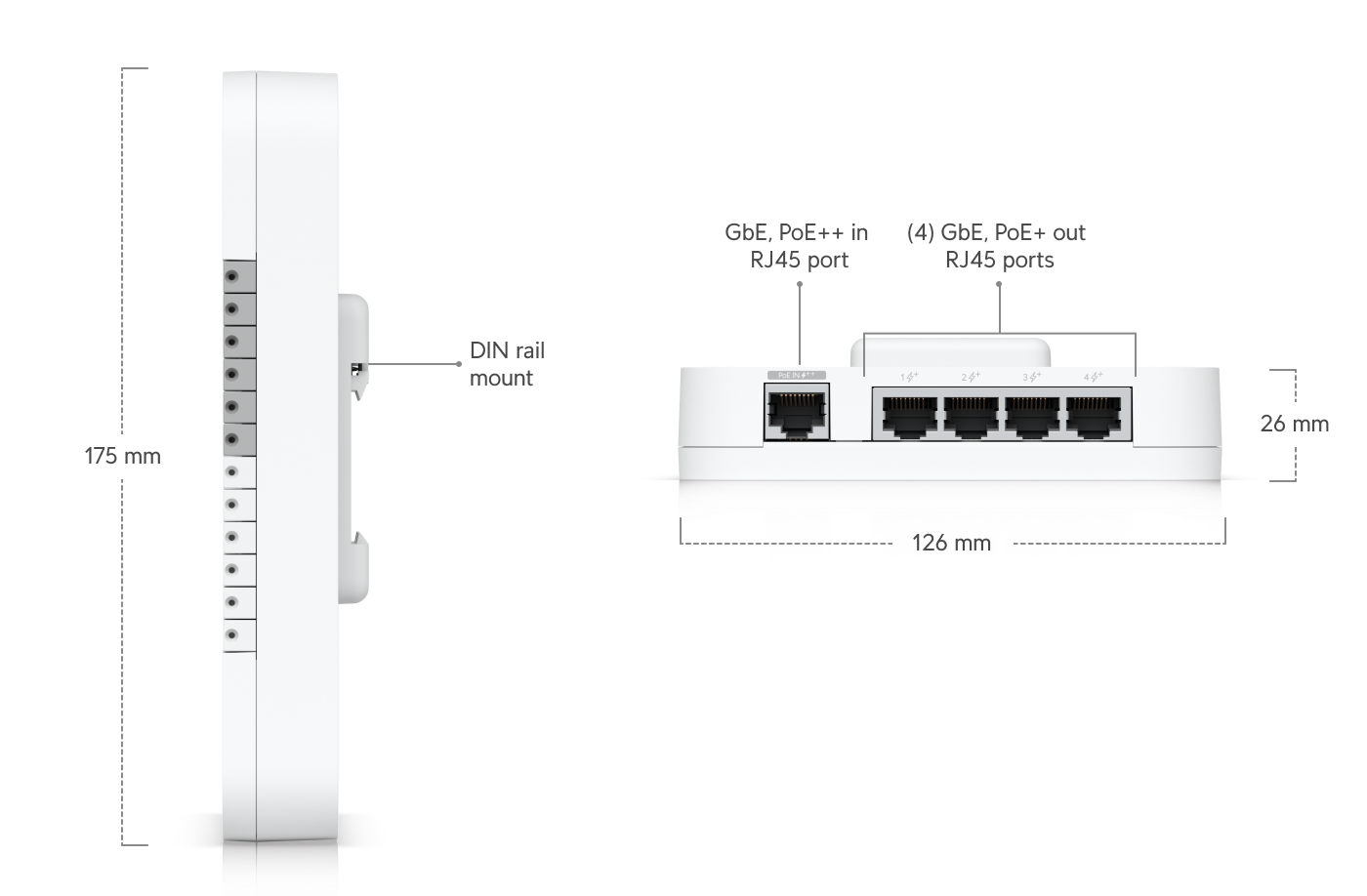

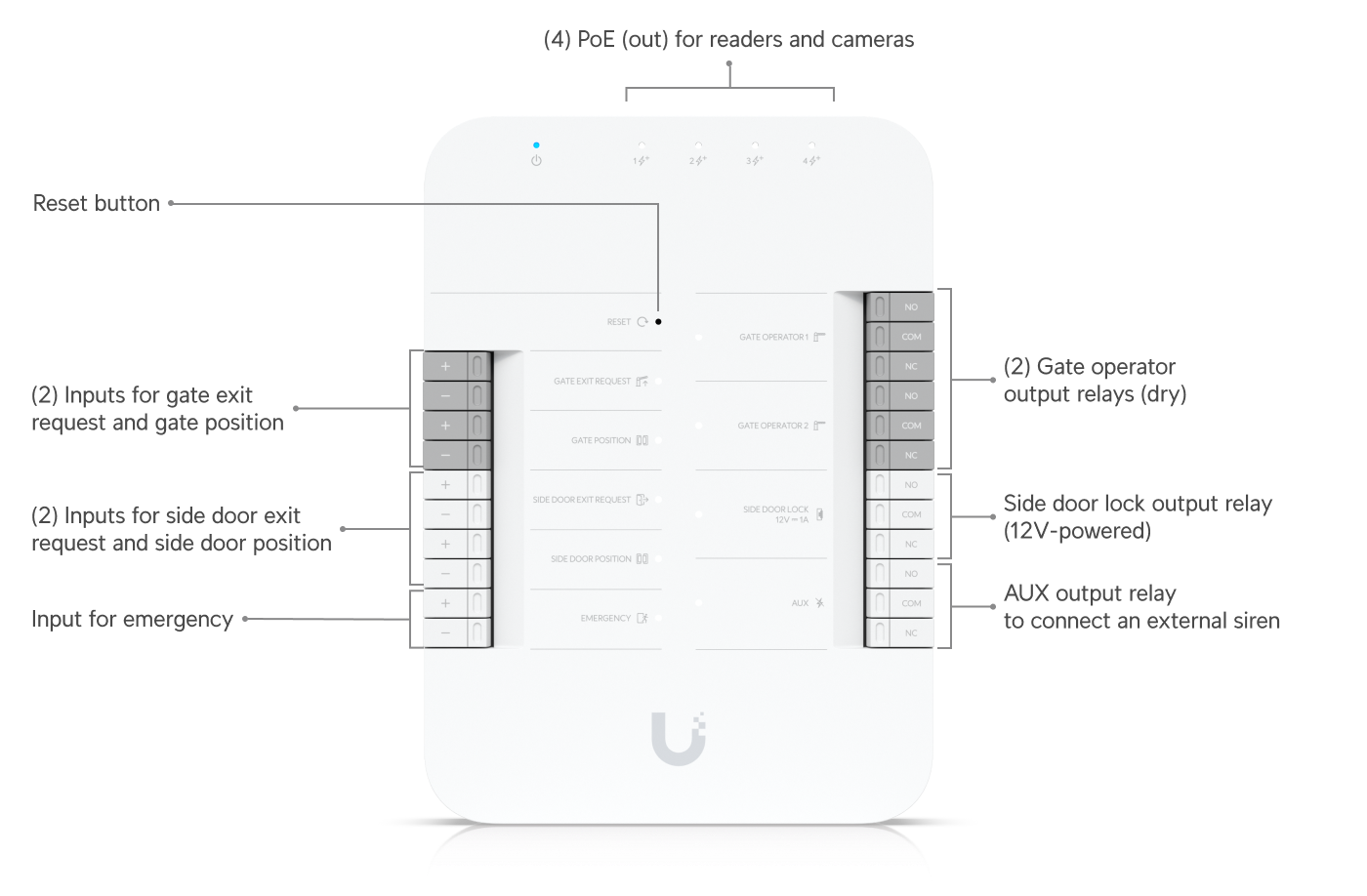

Gate Hub
- Dimensions: 175 × 126 × 26 mm
- Supported: 1 Gate + 1 Side Door
- Max Users: 6,000
- Ports: 5 × GbE
- PoE: 1 Input, 4 Output (30W each)
- Power Consumption: 22W (No PoE) / 60W (With PoE)
- Relays: Operator (2), Aux (1), Side Lock (12V DC)
- Inputs: Gate + Side Door + Emergency
- Usage: Indoor (Outdoor with enclosure)
- Temperature: -30°C to 60°C
- Humidity: 5–90%

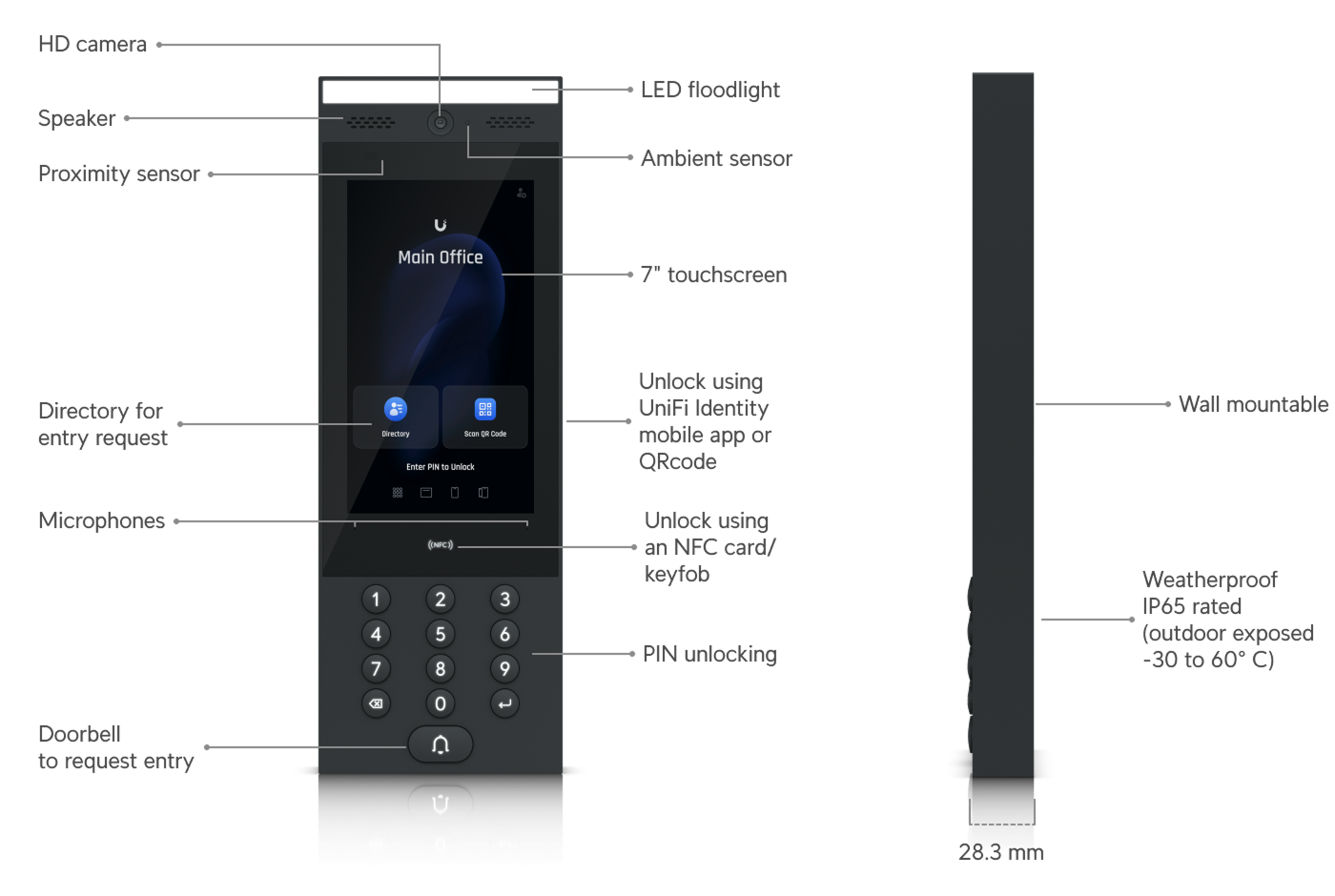

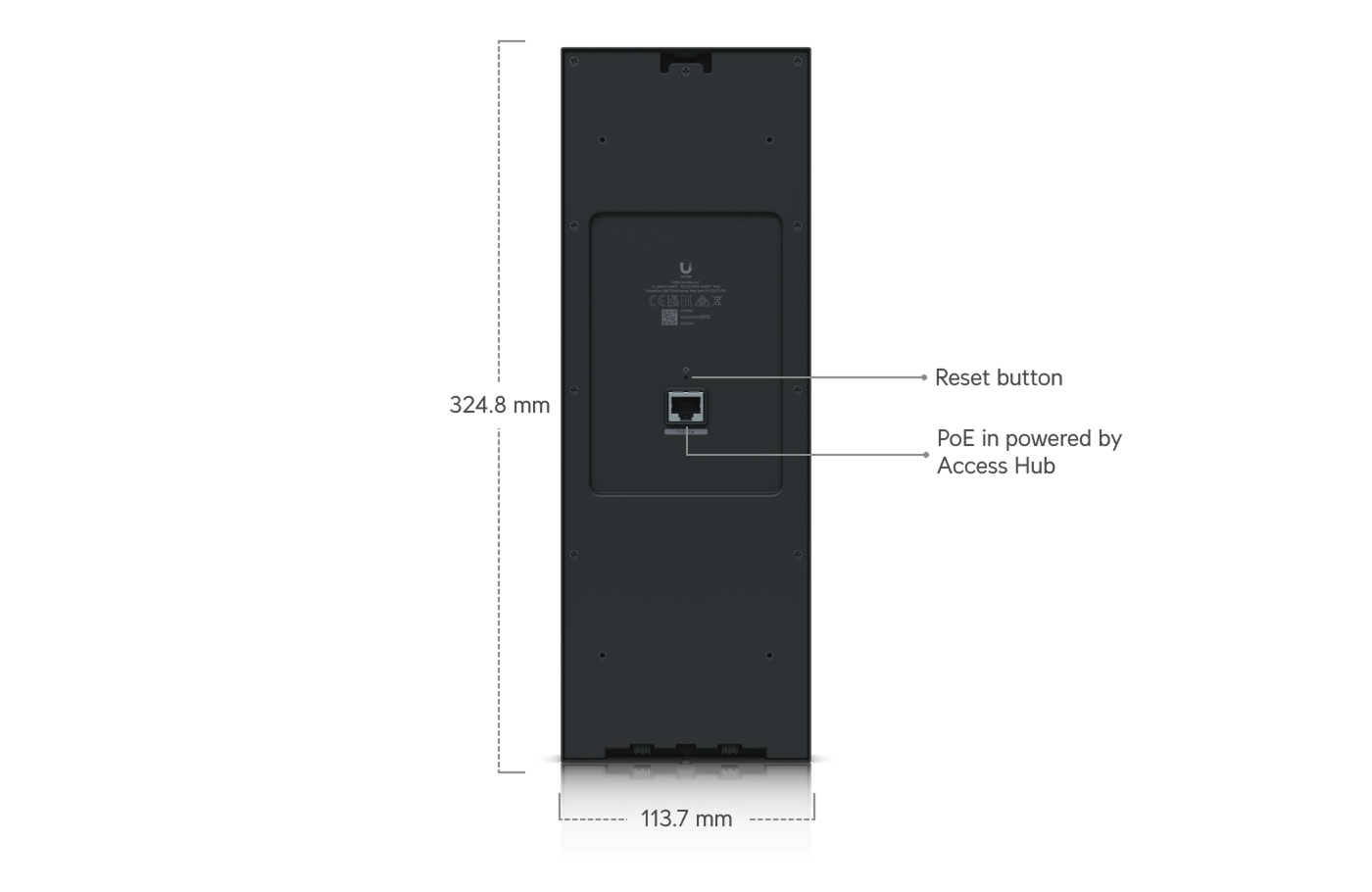

Intercom
- Dimensions: 324.8 × 113.7 × 28.3 mm
- Camera: 2MP (Video), 8MP Optics
- Access: NFC, PIN, Mobile, Face Unlock
- Features: Two-way Intercom, Doorbell
- Display: 7" Touchscreen (1024 × 600)
- Connectivity: BLE 4.2, NFC
- Power: PoE (13W)
- Weatherproof: IP65
- Temperature: -30°C to 60°C

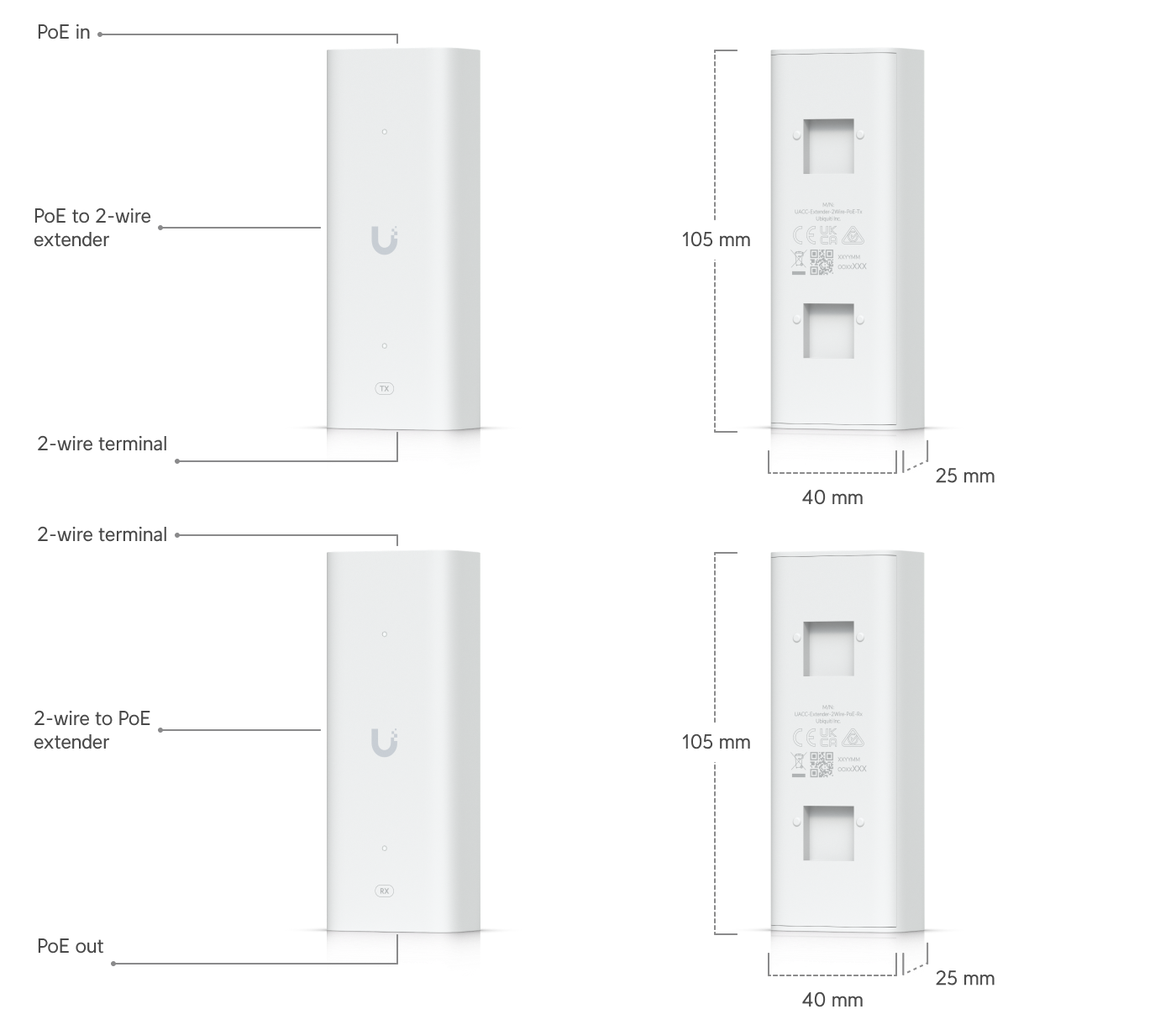

2-Wire PoE Extenders
- Model: UACC-Extender-2Wire-PoE
- Ports: Ethernet + HomePlug AV
- PoE: Input PoE++, Output PoE+
- Power Consumption: 3W
- Temperature: -10°C to 40°C
PoE++ Adapter
- Model: U-PoE++
- Output: 48V DC @ 1.25A
- LAN Port: Gigabit
- Input Voltage: 100–240V AC
- Efficiency: 85%+
- Max Output: 60W
- Temperature: 0°C to 40°C

Q: Is setup instant?
A: Yes.

Gate Access Starter Kit
