Elevator Starter Kit

Authorized entry to up to 18 floors using an in-elevator reader

🔒 100% Secure & Encrypted Payments

⚡ Instant Service Activation

🚚 Fast & Reliable Delivery

💬 24/7 Expert Technical Support

✅ Trusted by Businesses Worldwide

🔄 Easy Returns

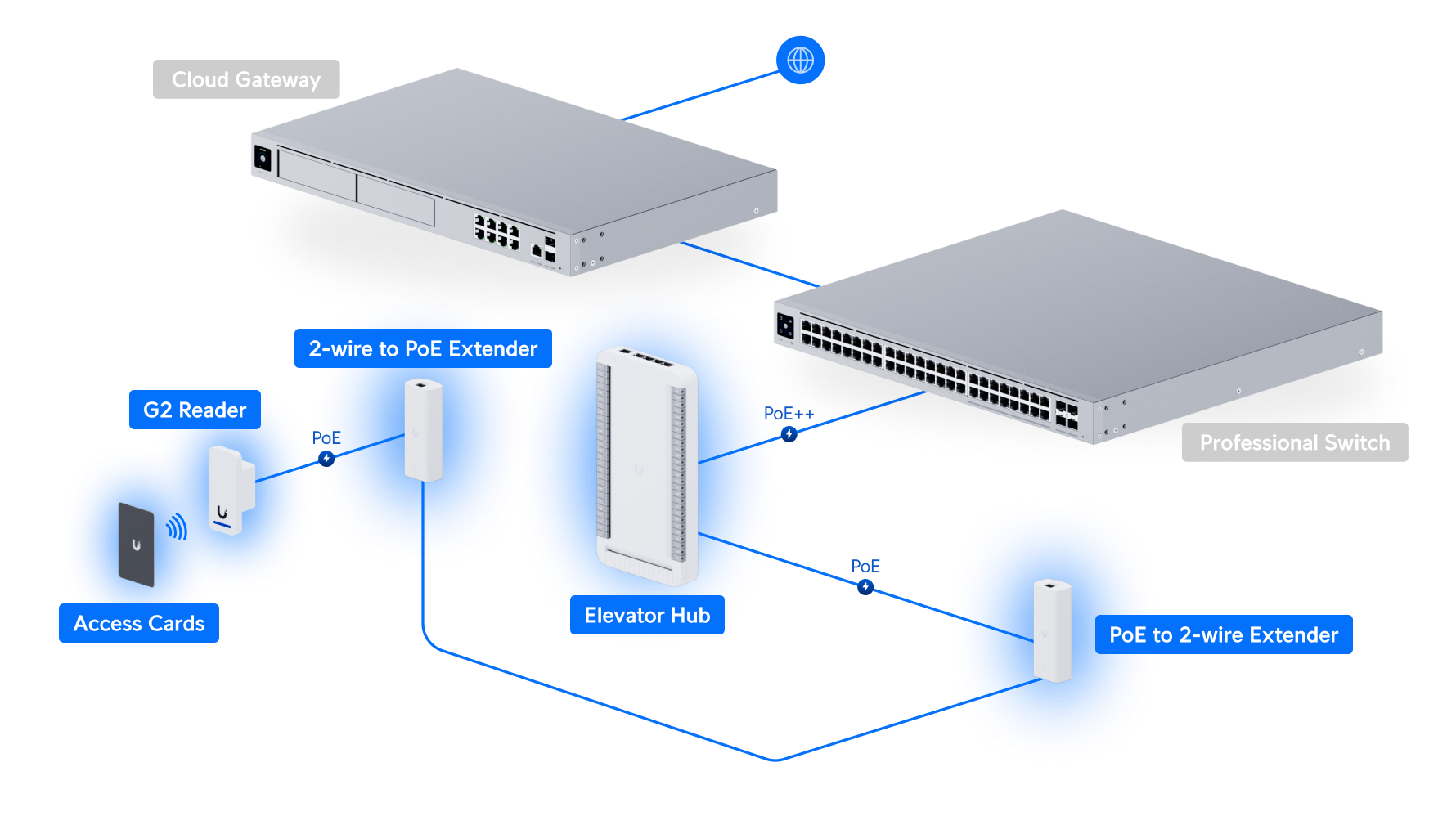

In the Box:
- 1 × Elevator Hub
- 1 × G2 Reader
- 2 × 2-wire PoE Extenders
- 10 × Access Cards

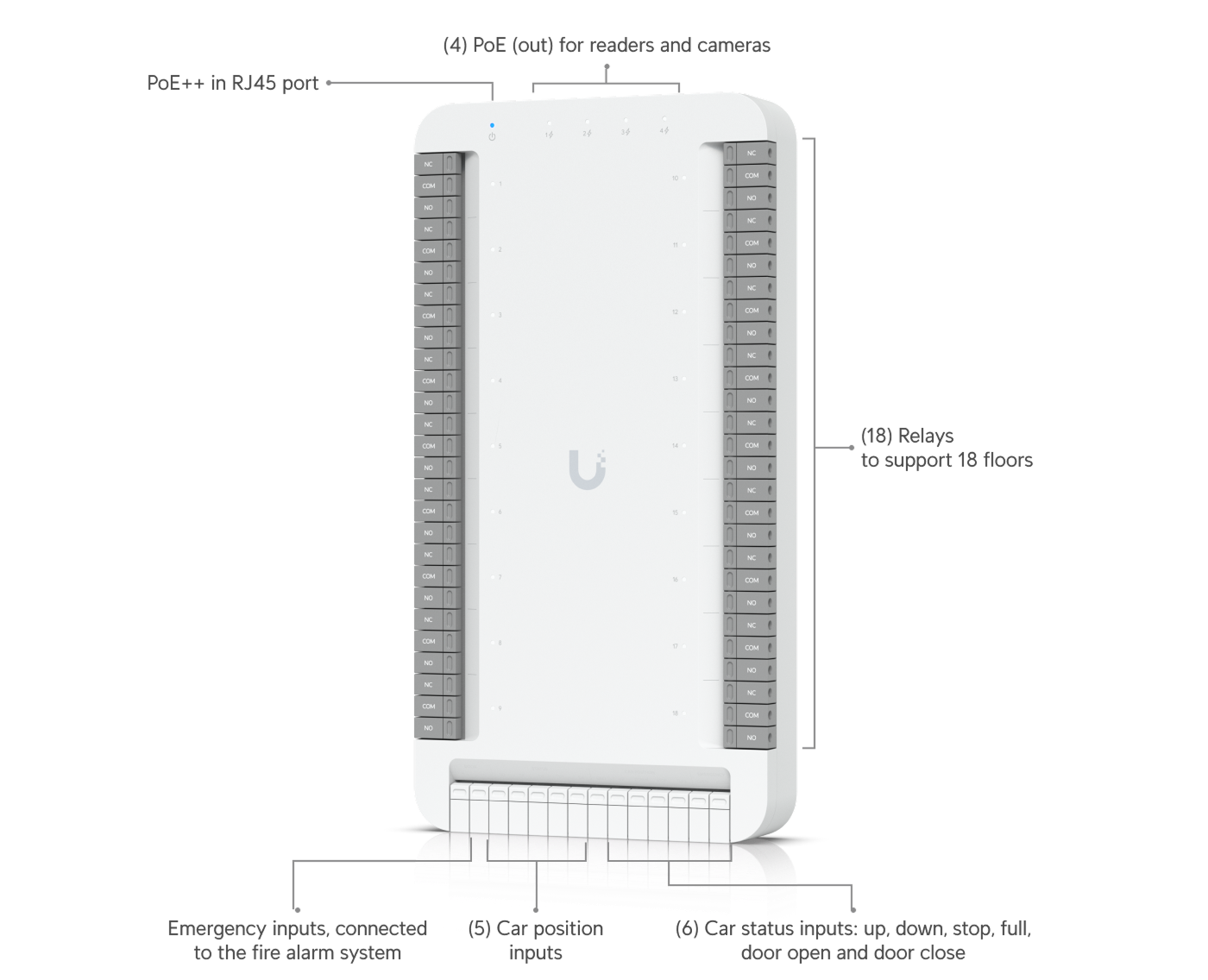

Elevator Hub

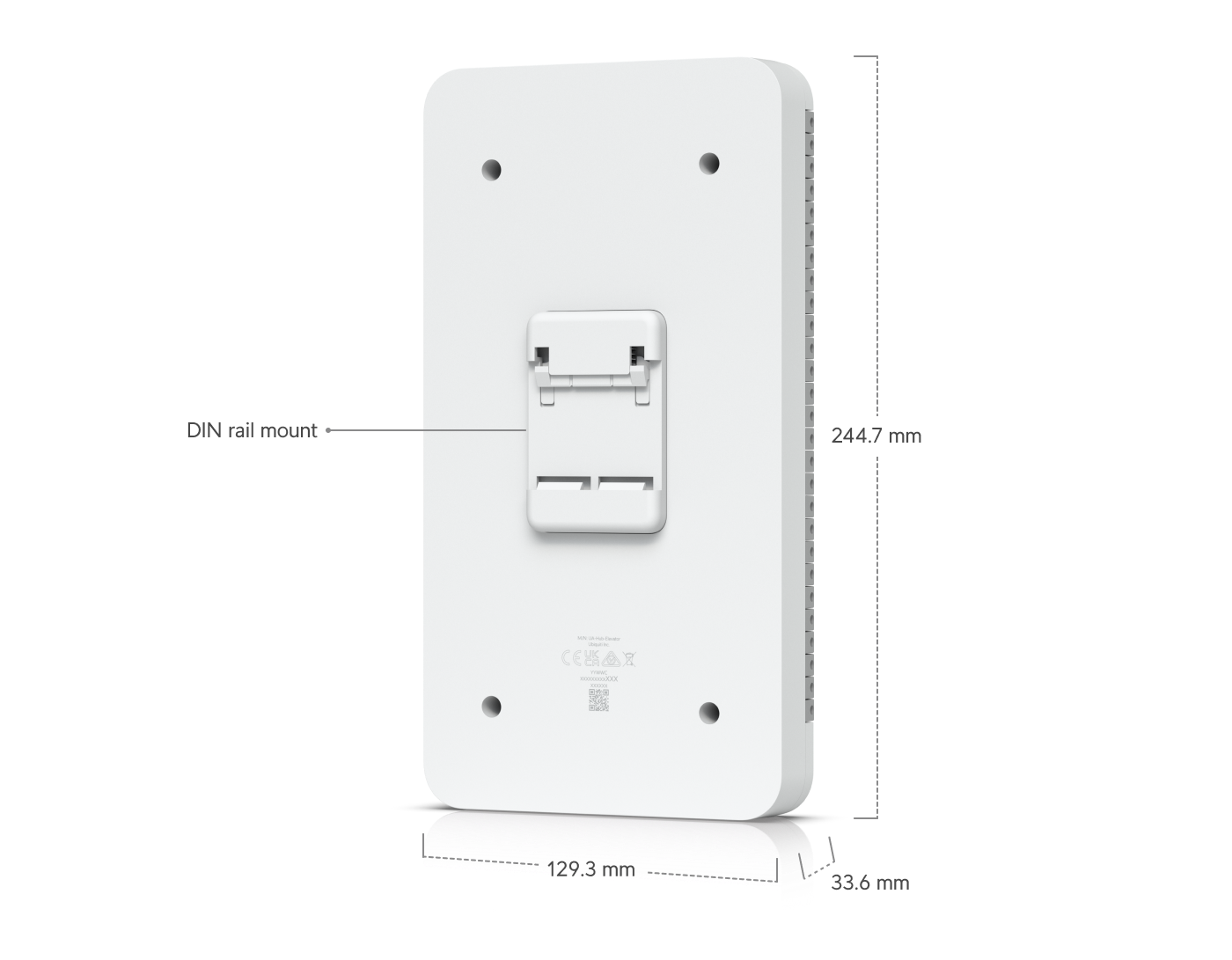

- Dimensions: 129.3 × 244.7 × 33.6 mm
- Max Users: 6,000
- Power Method: PoE++
- Ports: 4 × GbE
- PoE: 1 × Input, 4 × Output (30W each)
- Relays: 18 (30V DC / 2A)
- Inputs: Emergency, Car Position, Status, Door Status
- Power Consumption: 7W
- Temperature: -10°C to 40°C
- Humidity: 5–95%

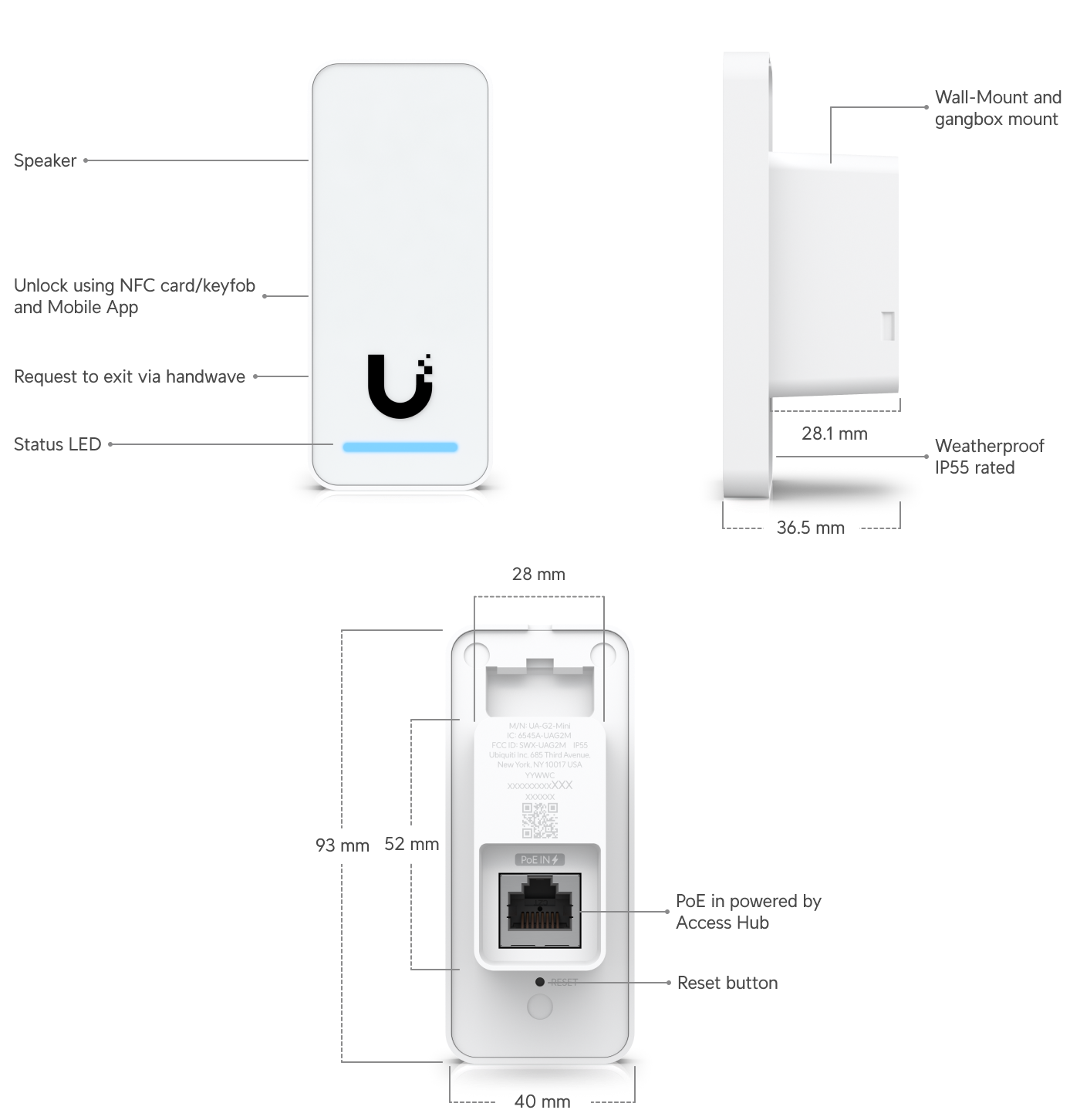

G2 Reader
- Dimensions: 93 × 40 × 36.5 mm
- Access: NFC Card, Mobile Unlock
- Special Feature: Handwave Exit
- Weatherproof: IP55
- Connectivity: BLE 4.1, NFC
- Power: PoE
- Power Consumption: 5W
- Temperature: -30°C to 45°C
- Humidity: 5–90%
Access Card
- Size: 85.6 × 53.98 × 0.84 mm
- Weight: 5 g
- Frequency: 13.56 MHz
- Technology: MIFARE DESFire

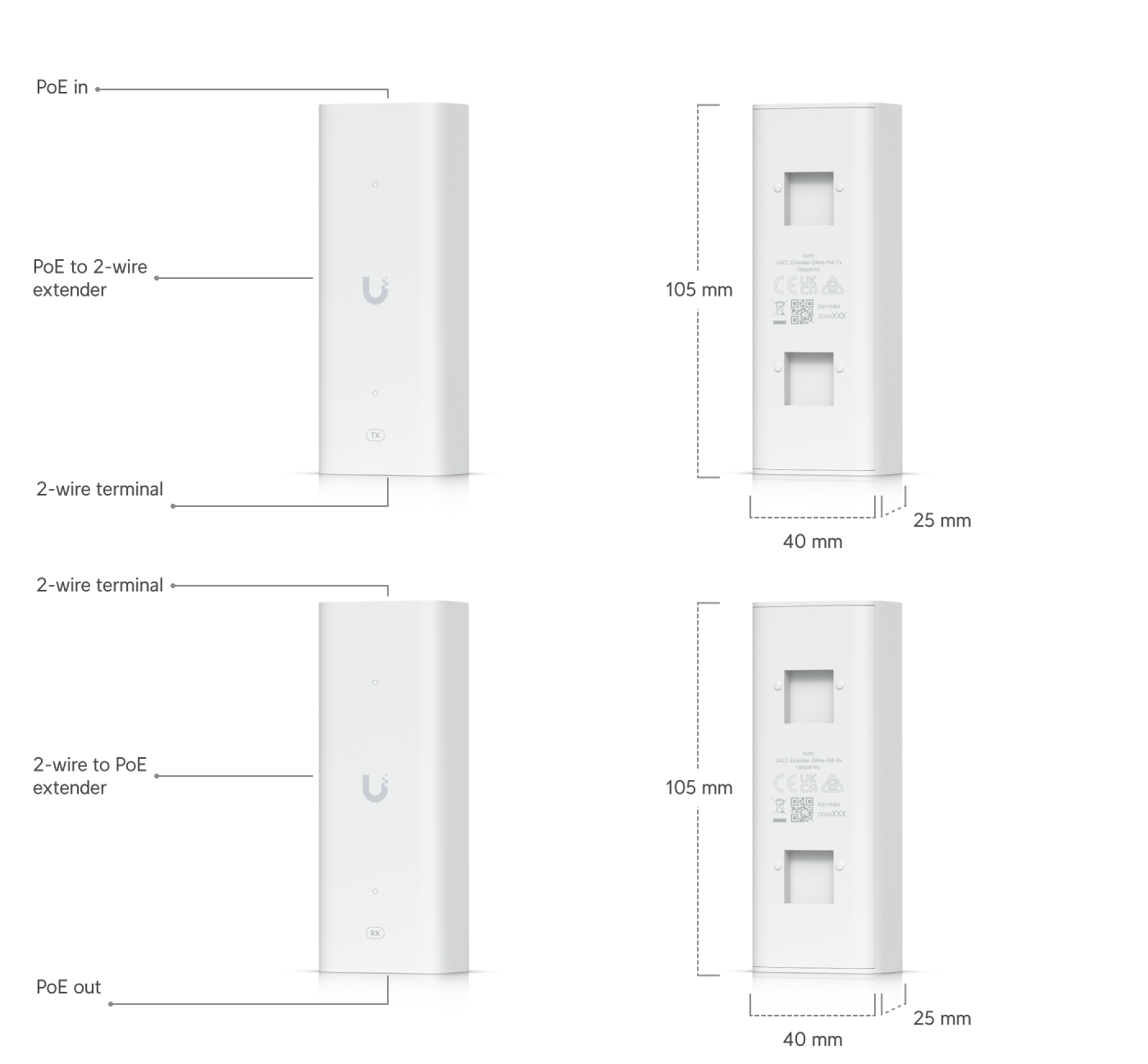

2-Wire PoE Extenders
- Model: UACC-Extender-2Wire-PoE-Tx/Rx
- Dimensions: 40 × 105 × 25 mm
- Ports: 1 × Ethernet, 1 × HomePlug AV
- PoE: Input PoE++, Output PoE+
- Power Consumption: 3W
- Temperature: -10°C to 40°C
- Humidity: 5–95%
