G2 Starter Kit
G2 Starter Kit
Entry control for a single door with one reader
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- In the Box
- (1) Door Hub
- (1) G2 Reader
- (10) Access Cards

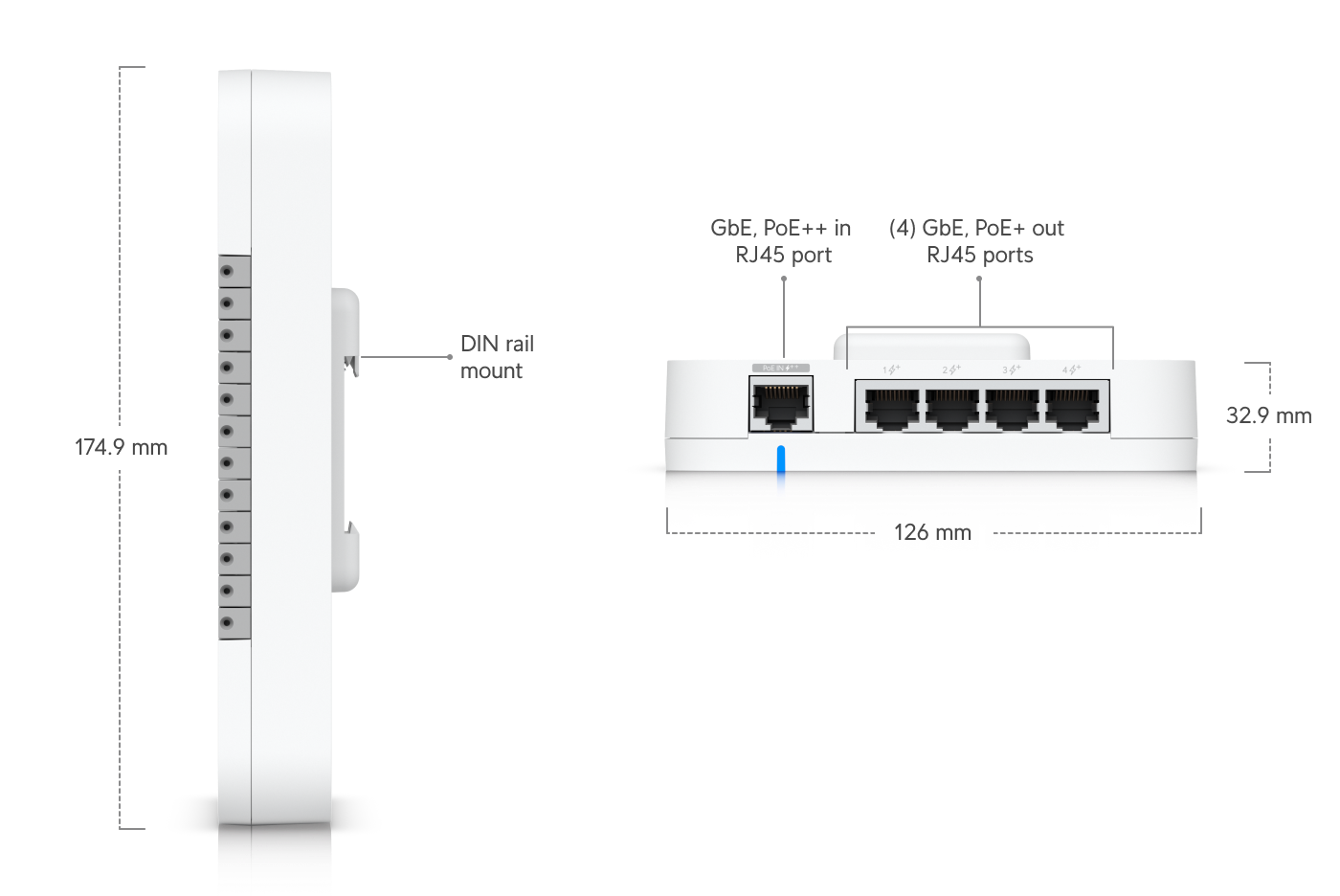

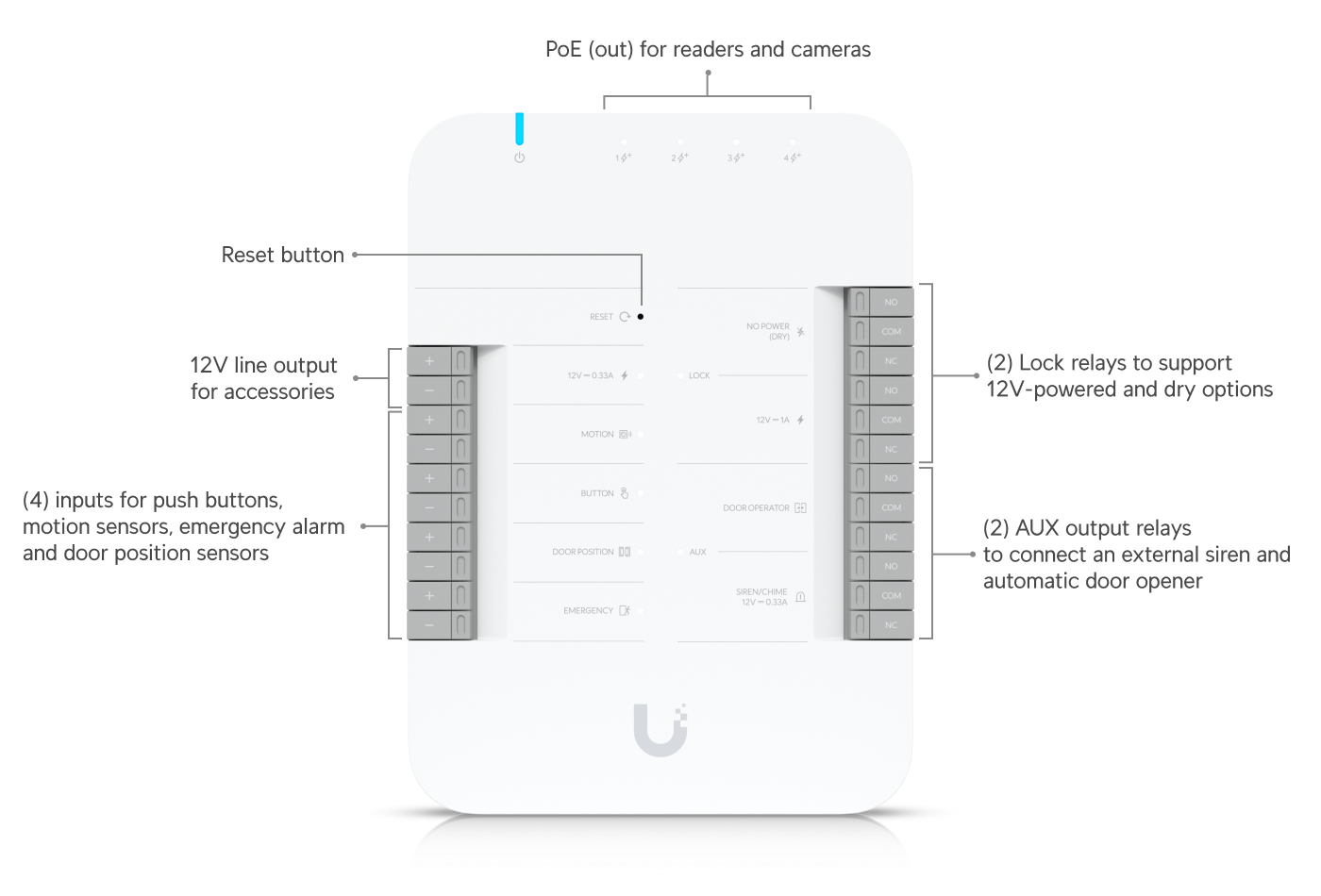

- Door Hub
- Dimensions: 174.9 x 126 x 32.9 mm
- Supported Doors: 1
- Input Terminals: Door exit request, Door position, Emergency
- Power Method: PoE++
- Weight: 363 g
- Enclosure Material: Polycarbonate
- Mounting: DIN-rail
- Networking Interface: (5) 10/100/1000 Base-T
- PoE Interface: 1 input, 4 outputs
- Max Power Consumption: 30W / 50W
- Digital Input: Exit, Entry, Remote release, Door sensor
- Dry Output Relay: Lock & Aux (30V DC)
- Powered Output Relay: 12V DC
- Button: Factory reset
- Ambient Temperature: 0 to 40°C
- Humidity: 5 to 95%
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, UL 294

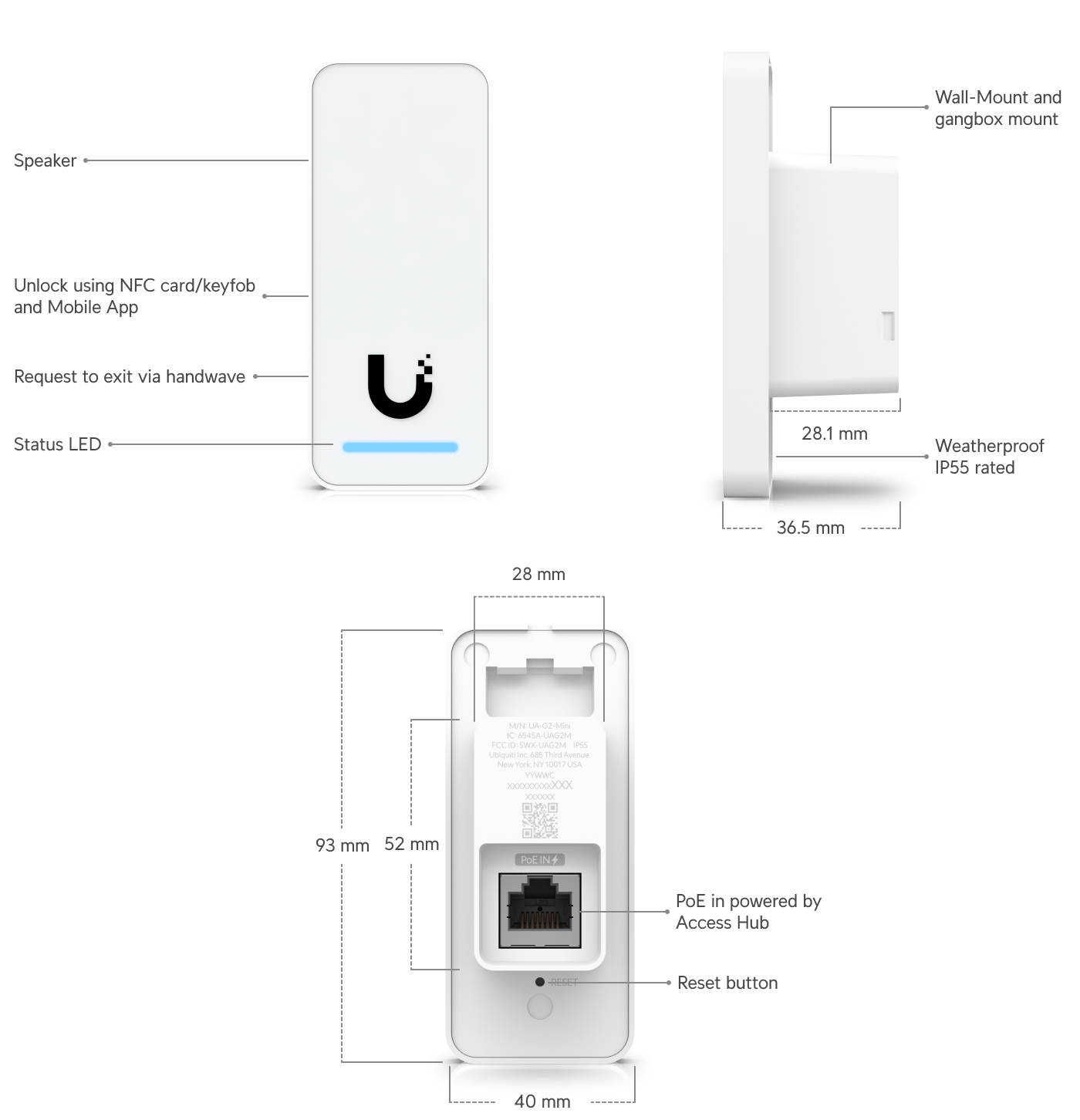

- G2 Reader
- Dimensions: 93 x 40 x 36.5 mm
- NFC Card & Keyfob Access: Yes
- Mobile Unlock: Yes
- Handwave Exit: Yes
- Weatherproofing: IP55
- Weight: 82 g
- Indoor/Outdoor Use: Yes
- Connectivity: BLE, NFC
- Power Method: PoE
- Max Power Consumption: 5W
- Speaker: Yes
- NFC Frequency: 13.56 MHz
- Ambient Temperature: -30 to 45°C
- Humidity: 5 to 90%
- NDAA Compliant: Yes
- Access Card
- Dimensions: 85.6 x 53.98 x 0.84 mm
- Weight: 5 g
- Format: ISO 7810 ID-1
- NFC Frequency: 13.56 MHz
- NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire
- NDAA Compliant: Yes
Q: Is setup instant?
A: Yes.
