G3 Starter Kit
G3 Starter Kit
Entry control for a single door with one reader
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview
- In the Box
- (1) Door Hub Mini
- (1) G3 Reader
- (2) Pocket Keyfobs
- Touch Pass: 10 free 1-year Touch Passes included

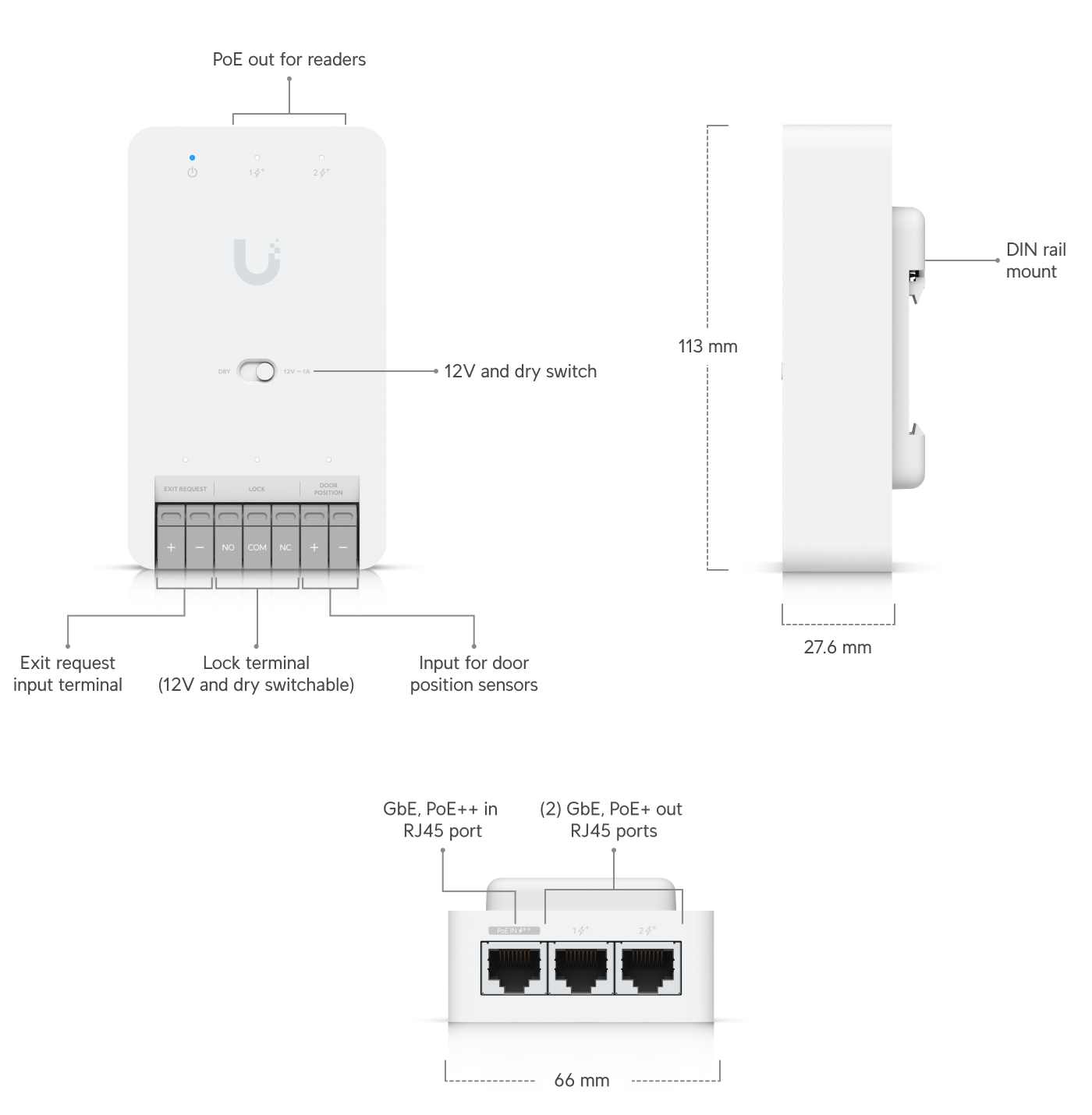

- Door Hub Mini
- Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Supported Doors: 1
- Maximum User Count: 3,000
- Input Terminals: Door Exit Request, Door Position
- Power Method: PoE++
- Weight: 190 g (6.7 oz)
- Enclosure Material: Polycarbonate, metal
- Mounting: DIN-rail (Included)
- Networking Interface: (3) GbE RJ45 ports
- PoE Interface: (1) PoE++ input, (2) PoE outputs
- Max Power Consumption: 19W (without PoE), 50W (with PoE)
- Digital Input: Request to exit, door position sensor
- Dry Output Relay: 30V DC, 1A
- Wet Output Relay: 12V DC, 1A
- Button: Factory reset, Dry/Wet switch
- Ambient Temperature: 0 to 40°C
- Humidity: 5 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, UL 294

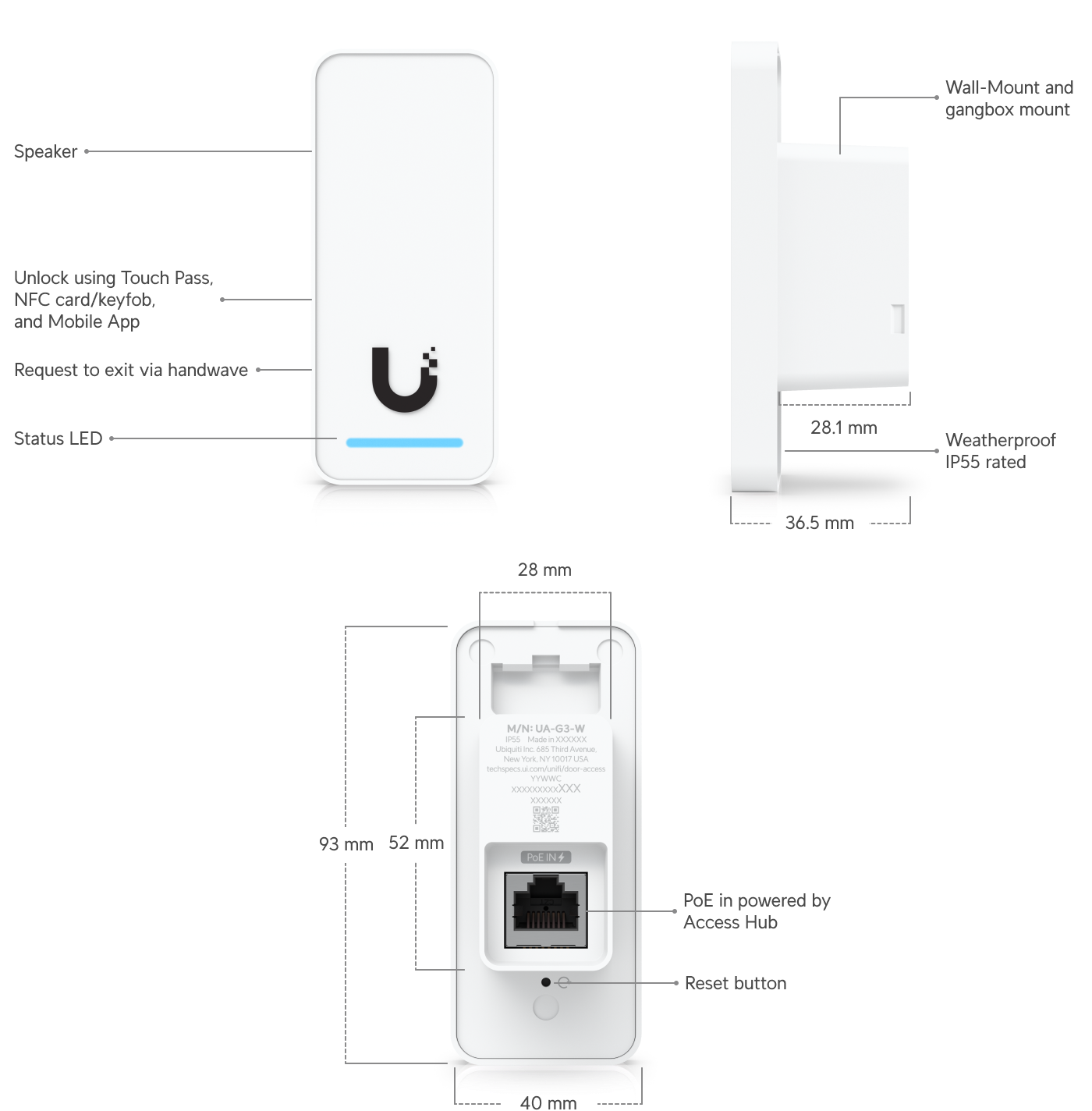

- G3 Reader
- Dimensions: 93 x 40 x 36.5 mm
- NFC Card & Keyfob Access: Yes
- Apple/Google Wallet: Yes
- Mobile Unlock: Yes
- Handwave Exit: Yes
- Weatherproofing: IP55
- Weight: 82 g
- Indoor/Outdoor Use: Yes
- Connectivity: BLE, NFC
- Power Method: PoE
- Max Power Consumption: 5W
- Speaker: Yes
- Ambient Temperature: -30 to 45°C
- Humidity: 5 to 90% noncondensing
- NDAA Compliant: Yes
- Pocket Keyfob
- Dimensions: 84 x 39 x 7.4 mm
- Weight: 16 g
- Material: Polycarbonate, stainless steel, silicone
- Weatherproofing: IP54
- Operating Temperature: -10 to 45°C
- NFC Frequency: 13.56 MHz
- NFC Technology: MIFARE DESFire EV3
- NDAA Compliant: Yes
- Certification: CE
Q: Is setup instant?
A: Yes.
