Dream Wall
Dream Wall
Designed for limited space
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

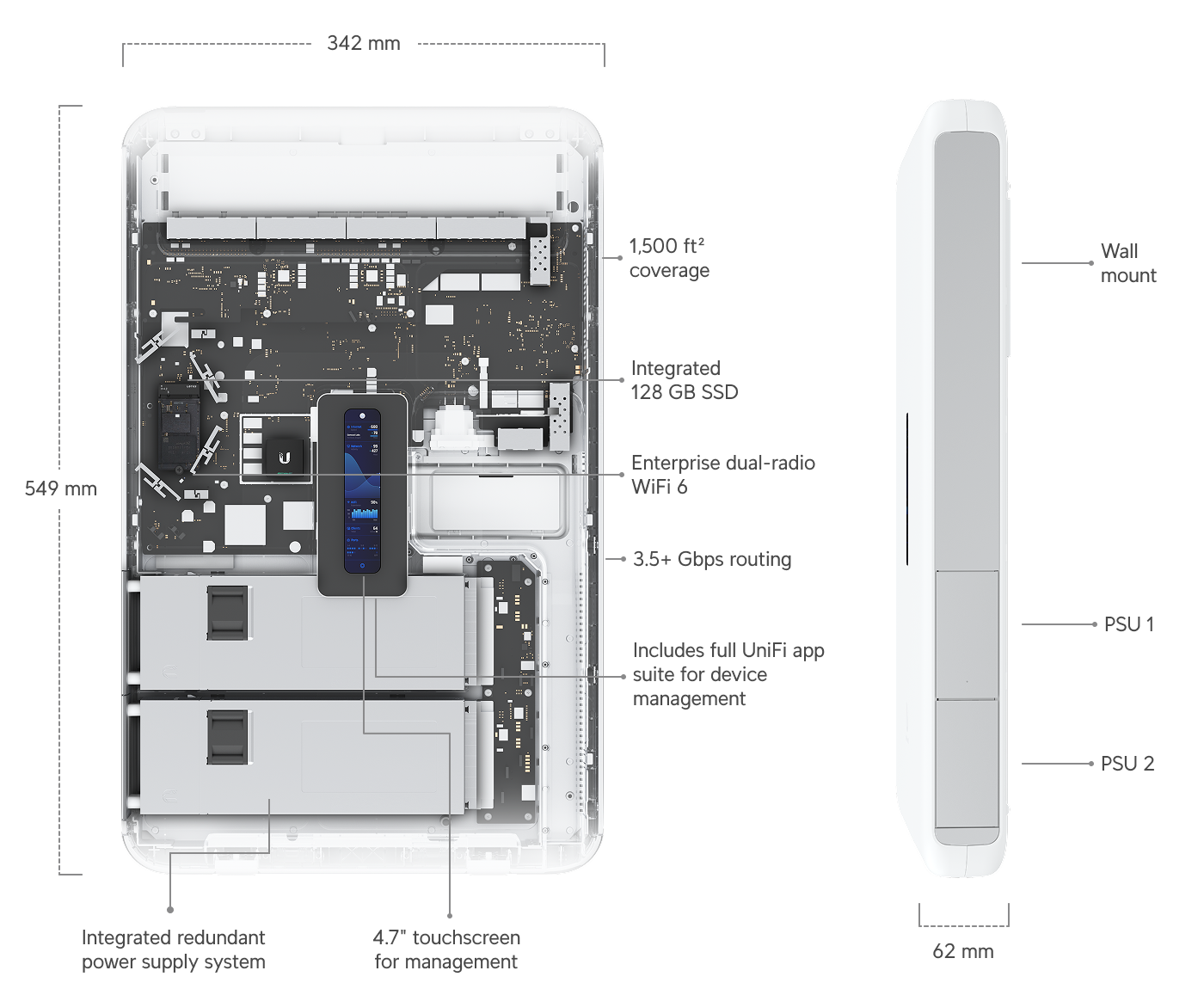

- Dimensions: 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
- UniFi Application Suite
- Network: Yes
- Protect: Yes
- Access: Yes
- Talk: Yes
- Connect: Yes
- Managed UniFi Devices: 100+
- Managed Cameras: 12 HD / 7 2K / 4 4K
- Simultaneous Users Connected: 300+
- Ports
- Max WAN Ports: 8
- Default WAN Ports: 2.5 GbE RJ45, 10G SFP+
- Port Layout: 17x 1GbE (PoE variants), 1x 2.5GbE, 2x 10G SFP+
- Performance
- IDS/IPS Throughput: 3.5 Gbps
- Form Factor: Wall-mounted
- Redundancy: 2 Hot-Swappable PSUs
- Coverage Area: 140 m²
- Security
- Stateful Firewall: Yes
- Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Content Filtering: Yes
- IPS/IDS: Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000+
- VLAN Segmentation: Yes
- VPN & SD-WAN
- SD-WAN: Yes
- Site-to-Site VPN: Yes
- IPsec: Yes
- OpenVPN: Yes
- WireGuard: Yes
- L2TP: Yes
- Networking
- Multi-WAN Load Balancing: Yes
- OSPF: Yes
- BGP: Yes
- QoS: Yes
- mDNS: Yes
- Advanced NAT: Yes
- RADIUS Server: Yes
- Failover (LTE Backup): Yes
- MAC Table Size: 8,000
- IPv6 Support: Yes
- WiFi
- Standard: WiFi 6 (802.11ax)
- Throughput: 5 GHz - 2.4 Gbps, 2.4 GHz - 300 Mbps
- MIMO: 4x4 (5GHz), 2x2 (2.4GHz)
- Max TX Power: 26 dBm (5GHz), 23 dBm (2.4GHz)
- Hardware
- NVR Storage: 512GB microSD + 128GB SSD
- PoE Budget: 420W
- Max Power Consumption: 532W
- Processor: Quad-core ARM Cortex-A57
- RAM: 4GB
- Weight: 8.6 kg
- Management
- Ethernet LED: Yes
- SFP+ LED: Yes
- Reset Button: Yes
- Environment
- Operating Temp: -10 to 40°C
- Humidity: 5–95%
- NDAA Compliant: Yes
- Software
- VLAN: 802.1Q
- Guest Traffic Isolation: Yes
