Dream Router 7
Dream Router 7
10G Cloud Gateway with integrated WiFi 7, PoE switch
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
Overview

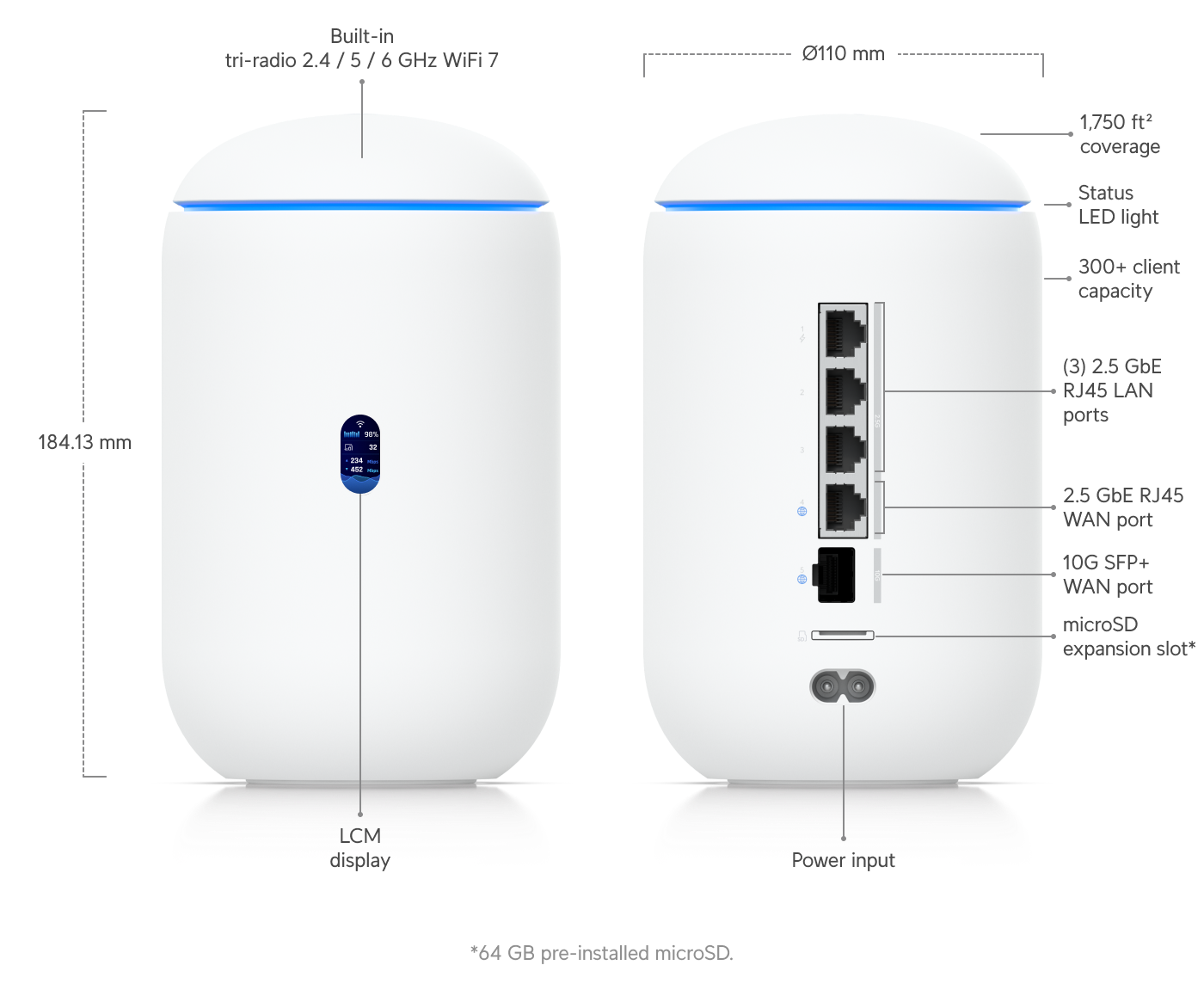

- Dimensions
- 110 x 184.1 mm (4.3 x 7.3")
- UniFi Application Suite
- Network: Yes
- Protect: Yes
- Access: Yes
- Talk: Yes
- Connect: Yes
- Managed UniFi Devices
- 30+
- Managed Cameras
- (5) HD
- (2) 2K
- (1) 4K
- Simultaneous Users Connected
- 300+
- Max. WAN Port Count
- 4
- Default WAN Ports
- (1) 10G SFP+
- (1) 2.5 GbE RJ45

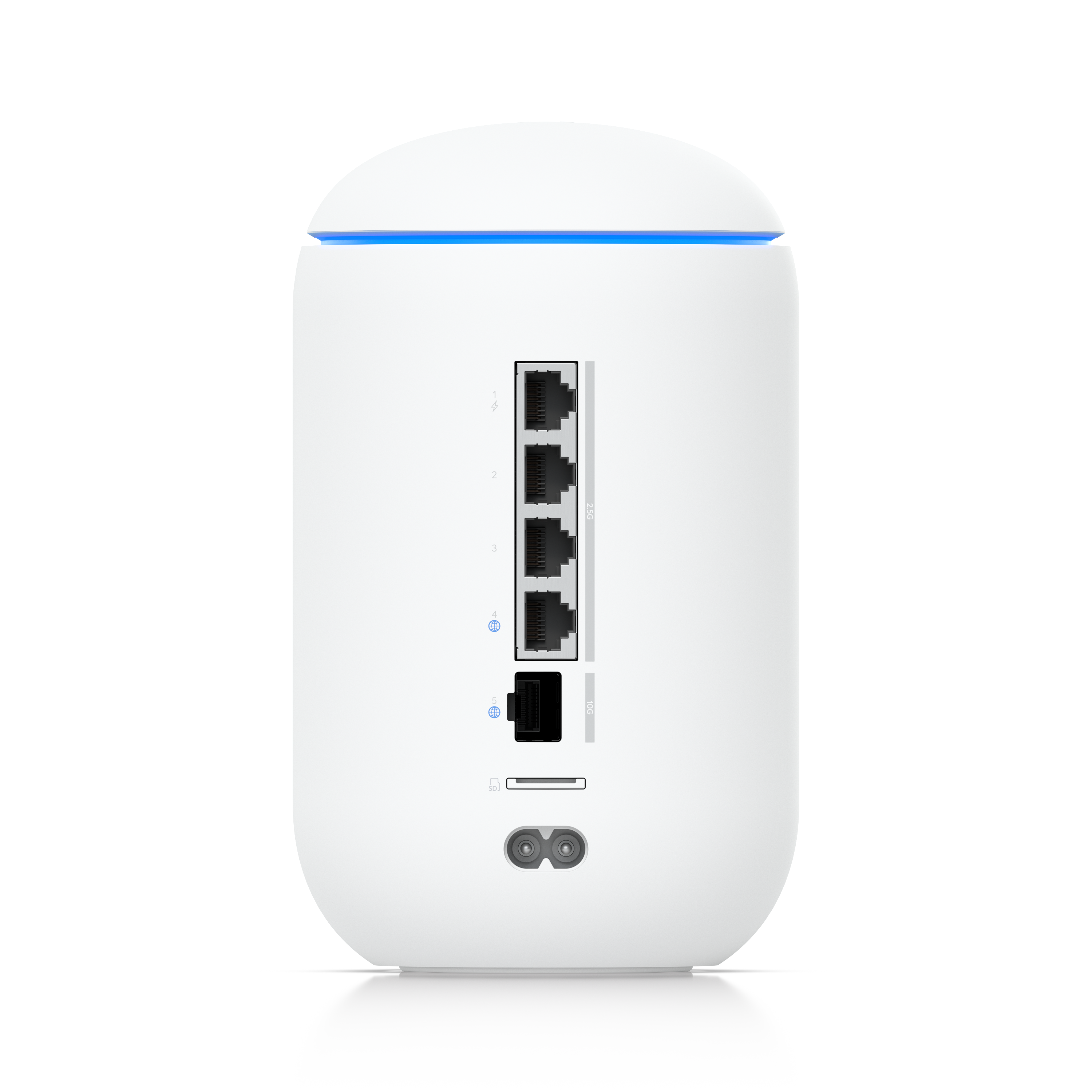

- Port Layout
- 2.5 GbE RJ45: 4 (1 PoE)
- 10G SFP+: 1
- IDS/IPS Throughput
- 2.3 Gbps
- Form Factor
- Compact desktop
- Coverage Area
- 160 m² (1,750 ft²)
Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 20,000+
- VLAN/Subnet Segmentation: Yes
VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- Identity Endpoint VPN: Yes
- Teleport VPN: Yes
- WireGuard: Yes
- VPN Client OpenVPN: Yes
- VPN Client WireGuard: Yes
Networking
- Multi-WAN Load Balancing: Yes
- OSPF Routing: Yes
- Advanced QoS: Yes
- mDNS: Yes
- Advanced NAT: Yes
- RADIUS Server: Yes
- RADIUS over TLS: Yes
- LTE Failover: Yes
- Internet Monitoring: Yes
- MAC Address Table Size: 2,000
- Policy-based Routing: Yes
- DHCP Server: Yes
- IPv6 Support: Yes
- IGMP Proxy: Yes
- Virtual Network Override: Yes
Integrated WiFi
- WiFi Standard: WiFi 6/6E, WiFi 7
- 6 GHz: 5.7 Gbps
- 5 GHz: 4.3 Gbps
- 2.4 GHz: 688 Mbps
- MIMO (All Bands): 2x2 MU-MIMO
- Antenna Gain: 6 GHz (6 dBi), 5 GHz (7 dBi), 2.4 GHz (5 dBi)
- Max TX Power: 6 GHz (24 dBm), 5 GHz (26 dBm), 2.4 GHz (23 dBm)
- Wireless Security: WPA/WPA2/WPA3/PPSK
- Max BSSIDs: 4 per Radio
Hardware
- NVR Storage: 64GB microSD
- Expansion Slot: MicroSD
- PoE Budget: 15.4W
- Max Power Consumption: 26W
- Processor: Quad-core ARM Cortex-A53
- Memory: 3 GB
- Weight: 1.1 kg
LEDs
- System: Yes
Other
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
Software
- VLAN: 802.1Q
- Guest Traffic Isolation: Yes
- UniFi Network Version: 9.0.108+
Q: Is setup instant?
A: Yes.
