Cloud Gateway Industrial
Cloud Gateway Industrial
Powerful multi-WAN UniFi Cloud Gateway with remote SIM support*
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
Overview

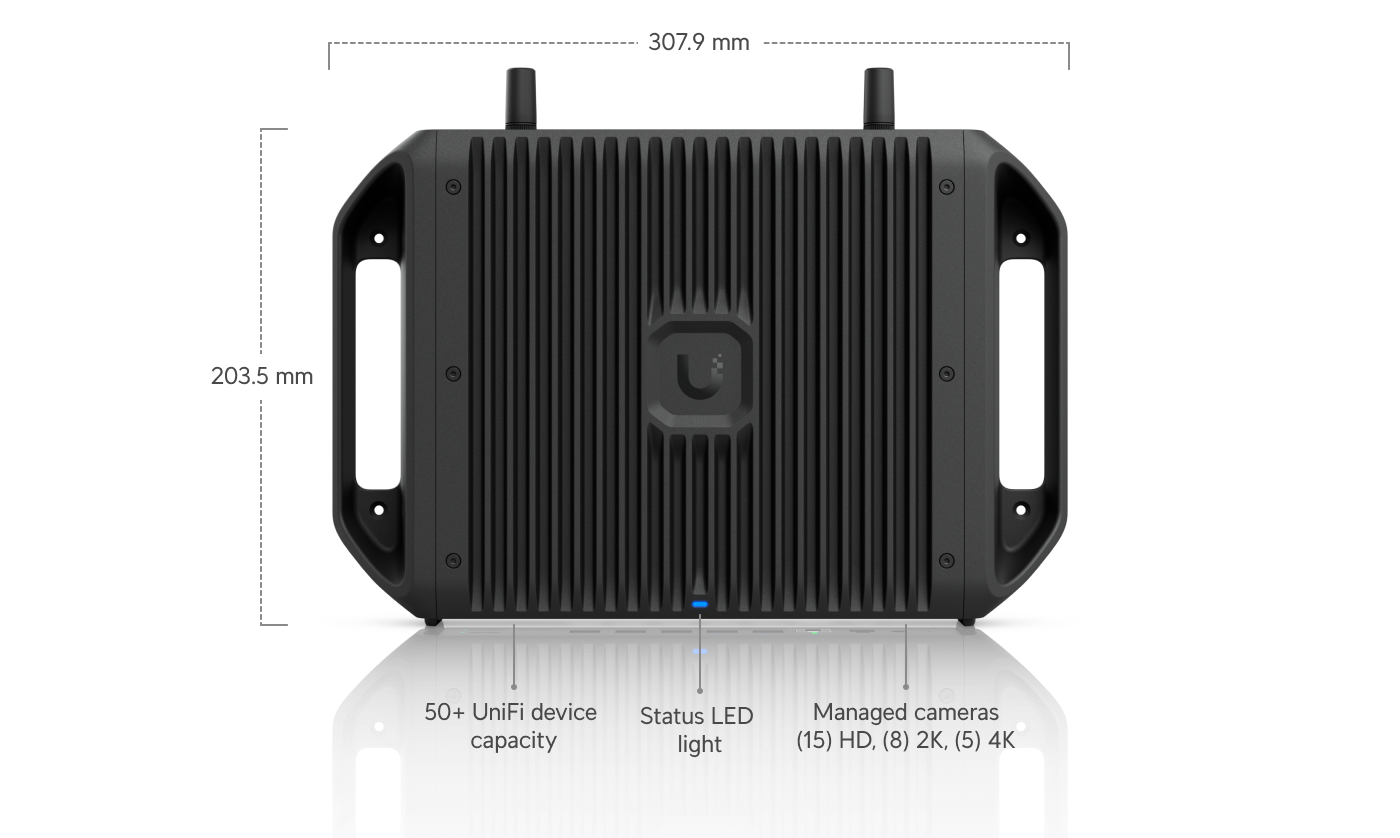

- Dimensions
- Device: 307.9 x 203.5 x 43.7 mm (12.1 x 8 x 1.7")
- Table stand: 203.5 x 100.2 x 21.9 mm (8 x 3.9 x 0.9")
- UniFi Application Suite
- Network: Yes
- Protect: Yes
- Access: Yes
- Talk: Yes
- Connect: Yes
- Managed UniFi Devices
- 50+
- Managed Cameras
- (15) HD
- (8) 2K
- (5) 4K
- Managed Access Hubs
- 50
- Simultaneous Users Connected
- 500+
- Max. WAN Port Count
- 5
- Default WAN Ports
- (1) 10G SFP+
- (1) 10 GbE RJ45
- (1) 2.5 GbE RJ45

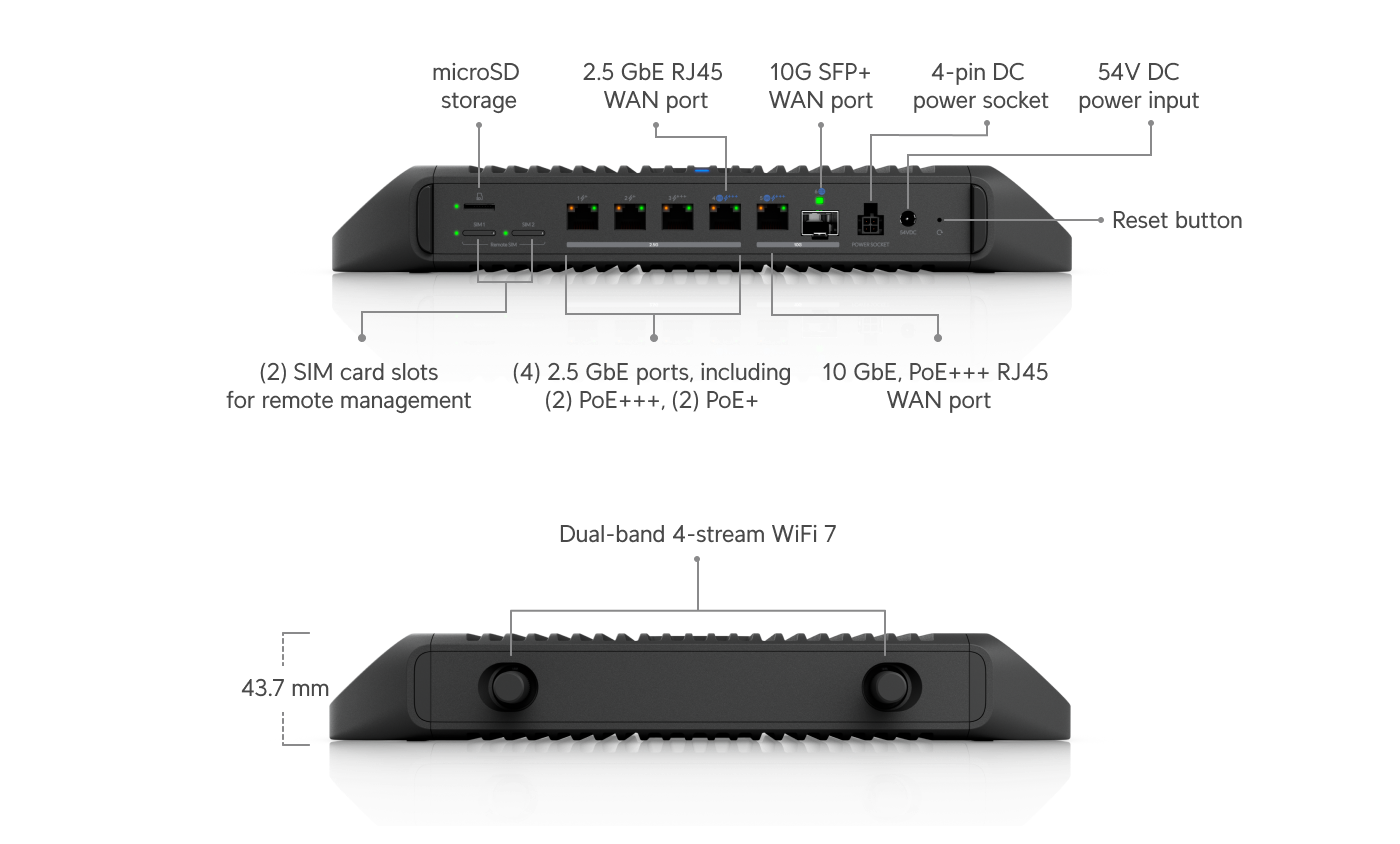

- Port Layout
- 2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+)
- 10 GbE RJ45: 1 (PoE+++)
- 10G SFP+: 1
- IDS/IPS Throughput
- 5 Gbps
- Form Factor
- Wall-mounted
- Compact desktop (Table stand included)
- Rack mount (Accessory sold separately)
- Coverage Area
- 115 m² (1,250 ft²)
Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000+
- VLAN/Subnet Segmentation: Yes
VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- Identity Endpoint VPN: Yes
- Teleport VPN: Yes
- WireGuard: Yes
- L2TP: Yes
- VPN Client OpenVPN: Yes
- VPN Client WireGuard: Yes
Networking
- Multi-WAN Load Balancing: Yes
- OSPF Routing: Yes
- Advanced QoS: Yes
- mDNS: Yes
- Advanced NAT: Yes
- RADIUS Server: Yes
- RADIUS over TLS: Yes
- LTE Failover: Yes
- Internet Monitoring: Yes
- MAC Address Table Size: 4000
- Virtual Network Override: Yes
Integrated WiFi
- WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
- 5 GHz Throughput: 4.3 Gbps
- 2.4 GHz Throughput: 688 Mbps
- MIMO 5 GHz: 2x2 MU-MIMO
- MIMO 2.4 GHz: 2x2 MU-MIMO
Hardware
- NVR Storage: 128 GB microSD
- Expansion Slot: MicroSD
- PoE Budget: 270W
- Max Power Consumption: 28W
- Processor: Quad-core ARM Cortex-A73
- Memory: 3 GB
LEDs
- Ethernet: Yes
- SFP+: Yes
- System: Yes
- MicroSD: Yes
- SIM: Yes
Other
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
Software
- UniFi iOS App: Version 10.32.0+
- UniFi Android App: Version 10.35.0+
Q: Is setup instant?
A: Yes.
