Cloud Gateway Max
Cloud Gateway Max
The complete UniFi experience for small-to-medium sites
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

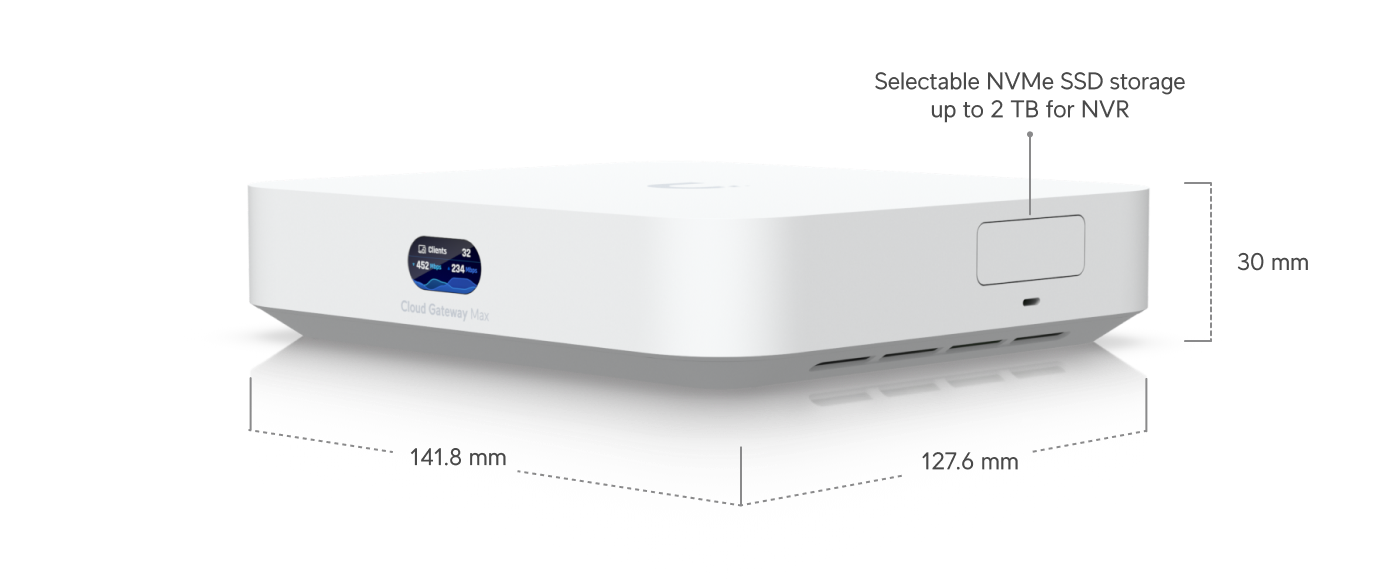

- Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
- UniFi Application Suite
- Network: Yes
- Protect: Yes
- Access: Yes
- Talk: Yes
- Connect: Yes
- Managed UniFi Devices: 30+
- Managed Cameras
- Managed Access Hubs: 50
- Simultaneous Users Connected: 300+
- Max. WAN Port Count: 4
- Default WAN Ports: (1) 2.5 GbE RJ45

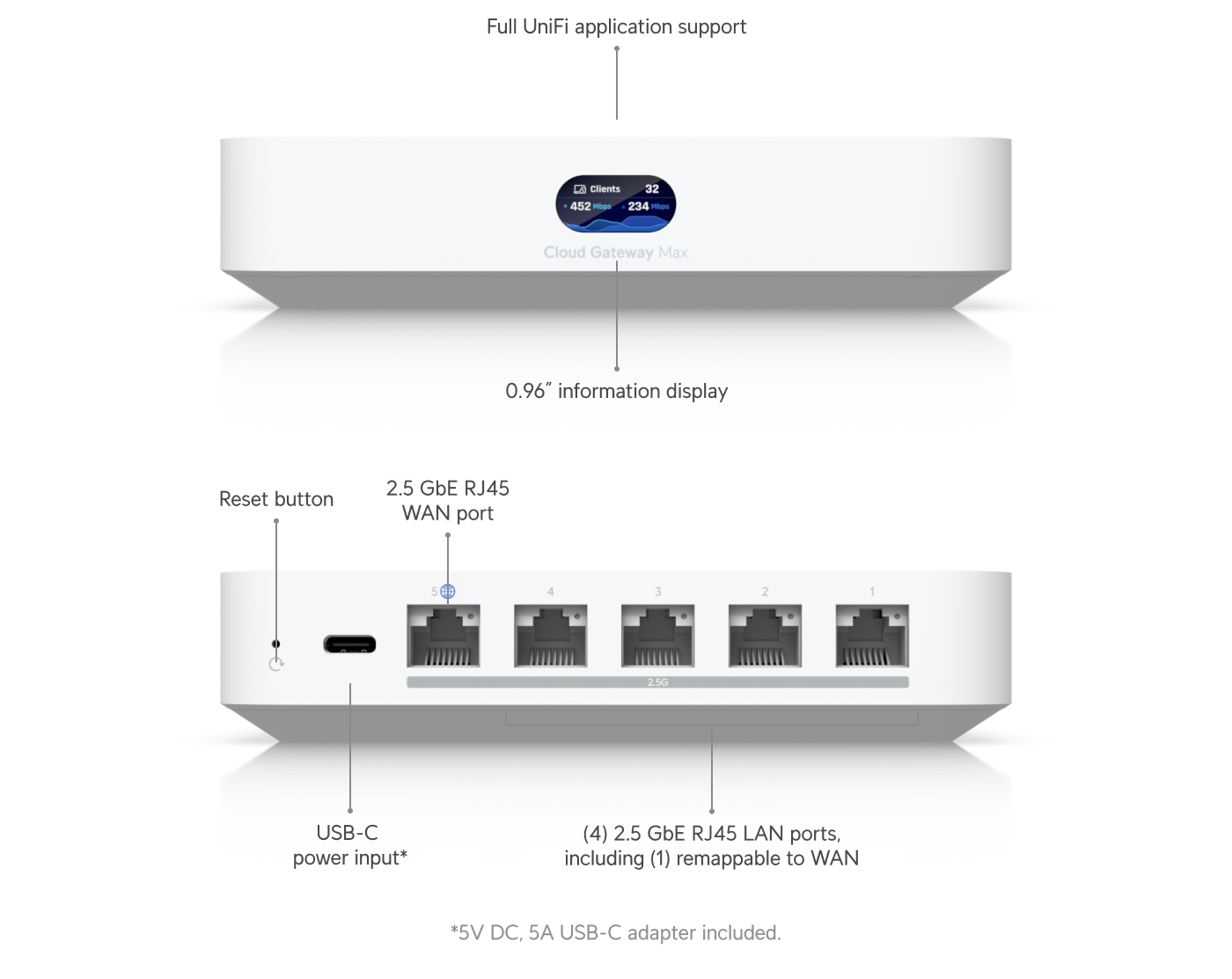

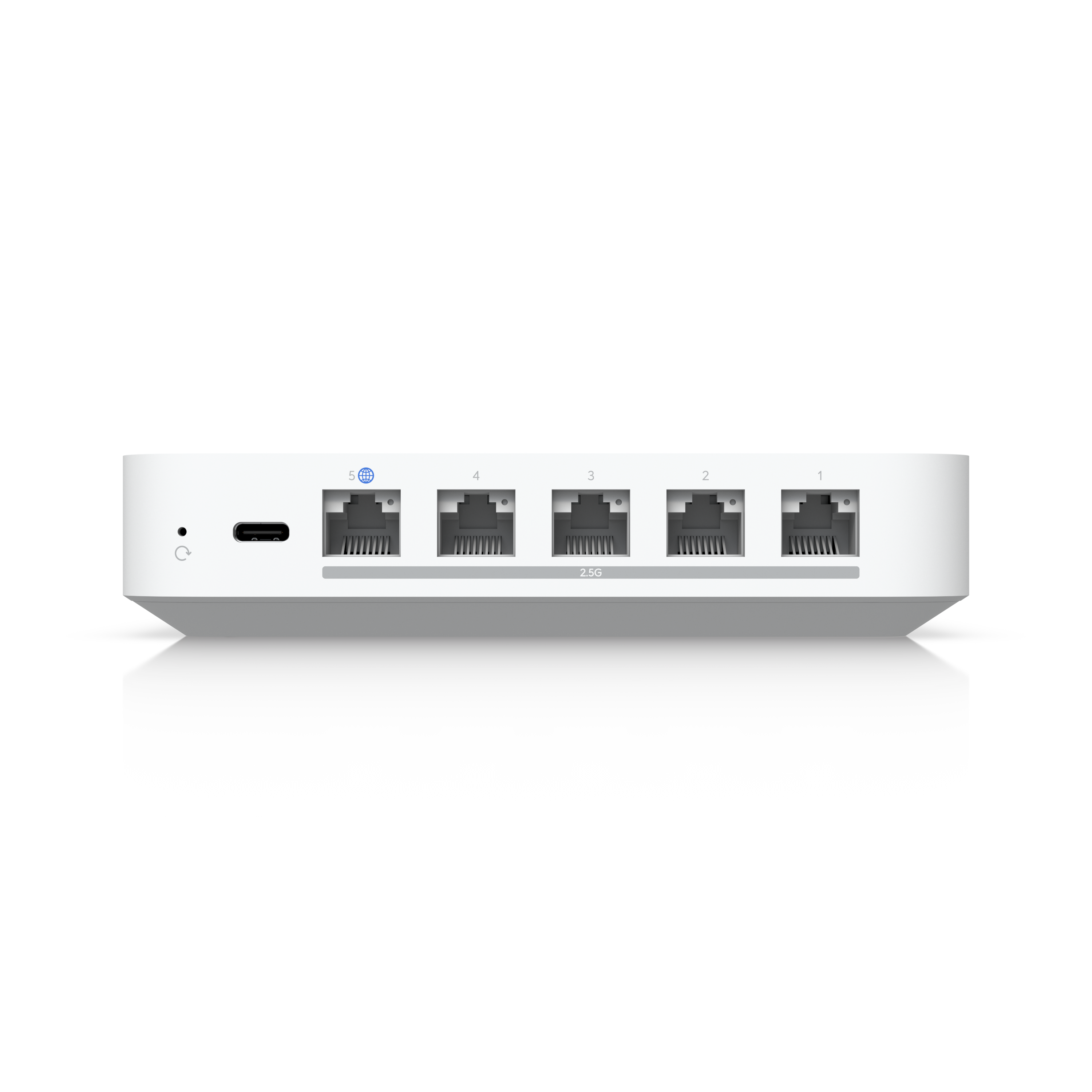

- Port Layout
- 2.5 GbE RJ45: 5 (2.5G/1G/100M/10M)
- IDS/IPS Throughput: 2.3 Gbps
- Form Factor: Compact desktop
- Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000+
- VLAN/Subnet-based Traffic Segmentation: Yes
- VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site-to-Site VPN
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- VPN Server
- Identity Endpoint One-Click VPN: Yes
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes
- VPN Client
- OpenVPN: Yes
- WireGuard: Yes
- Networking
- Multi-WAN Load Balancing: Yes
- Dynamic Routing
- Advanced QoS: Yes
- Multicast DNS (mDNS): Yes
- Advanced NAT: Yes
- Integrated RADIUS Server: Yes
- RADIUS over TLS (RadSec): Yes
- UniFi LTE Backup Failover: Yes
- Internet Quality Reporting: Yes
- MAC Address Table Size: 2,000
- Policy-based Routing: Yes
- Custom DHCP Server: Yes
- IPv6 ISP Support: Yes
- IGMP Proxy: Yes
- Virtual Network Override: Yes
- All Traffic Flows: Yes
- Hardware
- NVR Storage: NVMe SSD up to 2 TB
- Max. Power Consumption: 16.1W
- Power Method: USB Type-C (5V DC/5A)
- Power Supply: USB Type-C Adapter included
- Supported Voltage Range: 100–240V AC
- Heat Dissipation: 55 BTU/hr
- Processor: Quad-core ARM Cortex-A53 @ 1.5 GHz
- System Memory: 3 GB
- Weight: 460 g (without SSD), 519 g (with SSD)
- Enclosure Material: Polycarbonate
- Display: 0.96" status display
- Management
- Ethernet: Yes
- Bluetooth: Yes
- LEDs
- Button: Factory reset
- ESD Protection: Air ±8kV, Contact ±4kV
- Operating Temperature: -10 to 40°C
- Humidity: 5 to 95% non-condensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel, SRRC
- Software
- Mobile App:
- UniFi iOS & Android: Version 10.17.2 and later
Q: Is setup instant?
A: Yes.
