Dream Machine Pro
Dream Machine Pro
Great for large-scale deployments
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

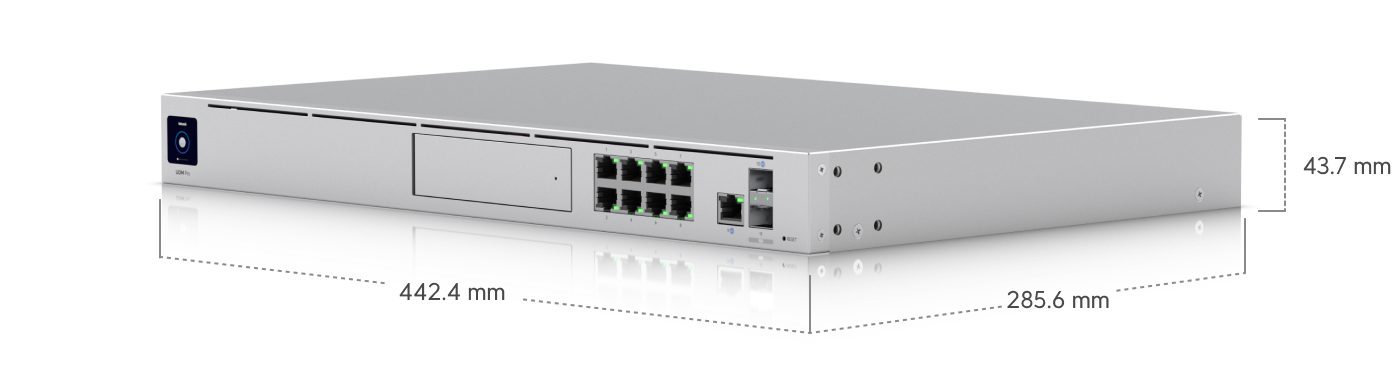

- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- UniFi Application Suite
- Network: Yes
- Protect: Yes
- Access: Yes
- Talk: Yes
- Connect: Yes
- Managed UniFi Devices: 100+
- Managed Cameras
- Managed Access Hubs: 150
- Simultaneous Users Connected: 1,000+
- Max. WAN Port Count: 8
- Default WAN Ports: (1) 10G SFP+, (1) GbE RJ45

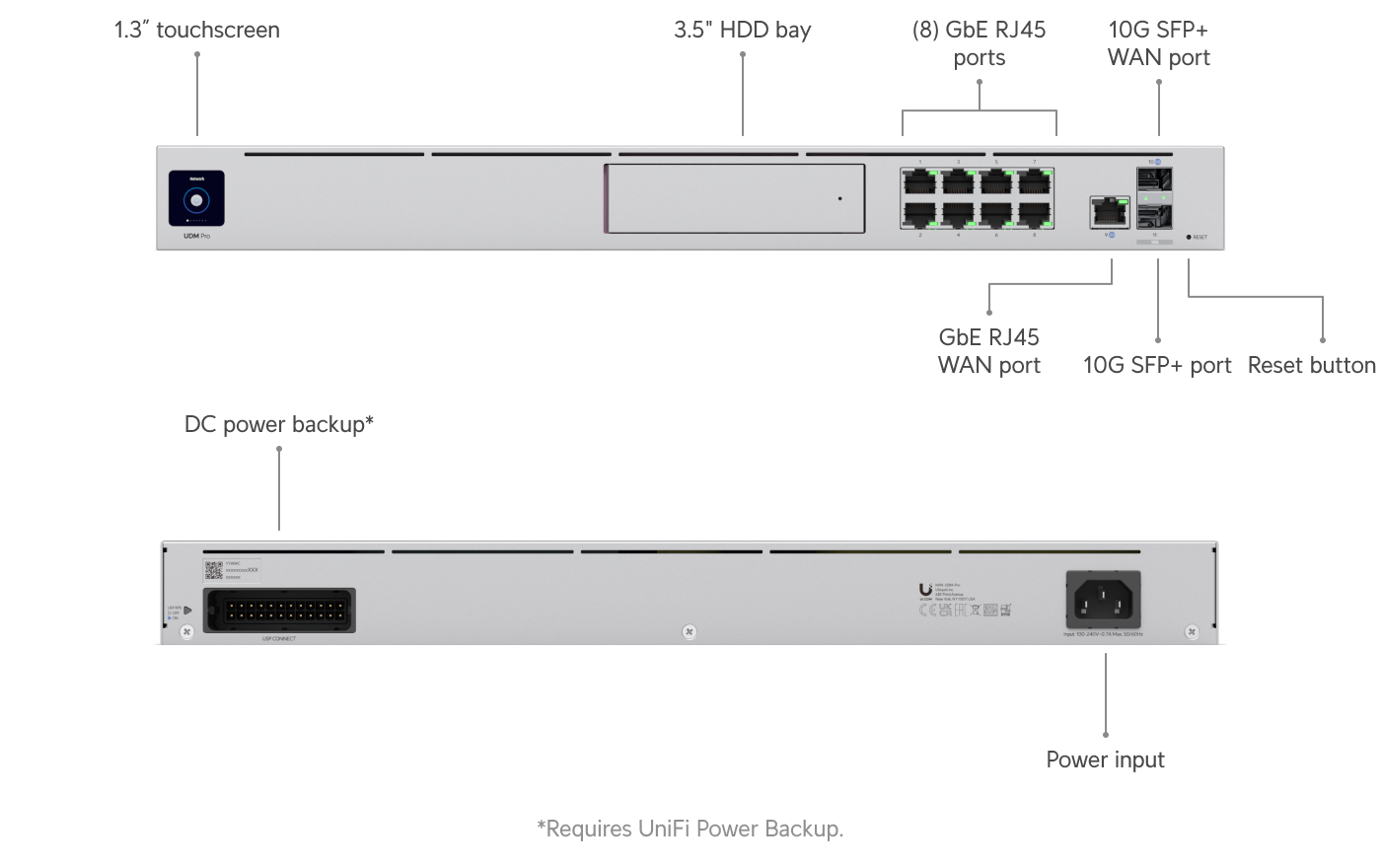

- Port Layout
- 1 GbE RJ45: 9 (1G/100M/10M)
- 10G SFP+: 2 (10G/1G)
- IDS/IPS Throughput: 3.5 Gbps
- Form Factor: Rack mount (1U)
- Redundancy: Shadow Mode (VRRP) Gateway Failover, DC Power Backup
- Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 55,000+
- VLAN/Subnet-based Traffic Segmentation: Yes
- VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site-to-Site VPN
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- VPN Server
- Identity Endpoint One-Click VPN: Yes
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes
- VPN Client
- OpenVPN: Yes
- WireGuard: Yes
- Networking
- Multi-WAN Load Balancing: Yes
- Shadow Mode (VRRP) High Availability: Yes
- LACP Port Aggregation: Yes
- Dynamic Routing
- Advanced QoS: Yes
- Multicast DNS (mDNS): Yes
- Advanced NAT: Yes
- Integrated RADIUS Server: Yes
- RADIUS over TLS (RadSec): Yes
- UniFi LTE Backup Failover: Yes
- Internet Quality Reporting: Yes
- MAC Address Table Size: 4,000
- Policy-based Routing: Yes
- Custom DHCP Server: Yes
- IPv6 ISP Support: Yes
- IGMP Proxy: Yes
- Virtual Network Override: Yes
- All Traffic Flows: Yes
- Hardware
- NVR Storage: (1) 3.5" HDD bay
- Max. Power Consumption: 33W
- Power Method: AC input (100–240V), DC input supported
- Power Supply: AC/DC internal 50W
- Heat Dissipation: 112 BTU/hr
- Processor: Quad-core ARM Cortex-A57 @ 1.7 GHz
- System Memory: 4 GB
- On-board Storage: 16 GB
- Weight: 3.9 kg (8.6 lb)
- Enclosure Material: Aluminium CNC, SGCC steel
- Mount Material: SGCC steel
- Display: 1.3" touchscreen
- Management
- Ethernet: Yes
- Bluetooth: Yes
- LEDs
- Ethernet: Yes
- SFP+: Yes
- RPS: Yes
- PSU: Yes
- HDD: Yes
- Button: Factory reset
- ESD Protection: Air ±15kV, Contact ±8kV
- Operating Temperature: -10 to 40°C
- Humidity: 5 to 95% non-condensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel, SRRC
Q: Is setup instant?
A: Yes.
