Enterprise Fortress Gateway
Enterprise Fortress Gateway
Purpose-built for the most demanding networks
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
- Overview

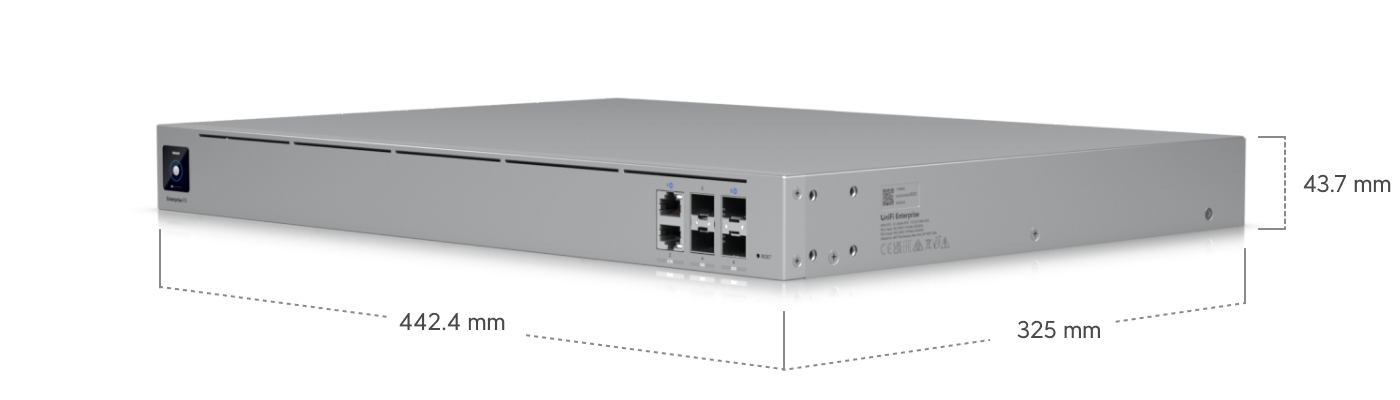

- Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
- UniFi Application Suite: Network
- Managed UniFi Devices: 500+
- Simultaneous Users Connected: 5,000+
- Max. WAN Port Count: 5
- Default WAN Ports: (1) 25G SFP28, (1) 2.5 GbE RJ45
- Port Layout
- 2.5 GbE RJ45: 2 (2.5G/1G/100M/10M)
- 10G SFP+: 2 (10G/1G)
- 25G SFP28: 2 (25G/10G/1G)
- IDS/IPS Throughput: 12.5 Gbps
- Capacity
- SSL/TLS Inspection Concurrent Sessions: 10,000
- Concurrent Sessions: 1 Million
- New Sessions / Second: 71,000
- Form Factor: Rack mount (1U)
- Redundancy: Shadow Mode (VRRP) Gateway Failover, (2) Hot-Swappable PSUs
- Security
- Stateful Firewall: Yes
- Application-Aware Layer 7 Firewall: Yes
- SSL Inspection & URL Filtering: Yes
- DPI & Traffic Identification: Yes
- Zone-Based Firewall Advanced Filtering: Yes
- Content Filtering: Yes
- Intrusion Prevention (IPS/IDS): Yes
- Ad Blocking: Yes
- IDS/IPS Signatures: 95,000+
- VLAN/Subnet-based Traffic Segmentation: Yes
- VPN & SD-WAN
- License-Free SD-WAN: Yes
- Site-to-Site VPN
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
- VPN Server
- Identity Endpoint One-Click VPN: Yes
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes
- VPN Client
- OpenVPN: Yes
- WireGuard: Yes
- VPN Server Single User Throughput
- Identity Endpoint One-Click VPN: 1.2 Gbps
- Teleport: 1.2 Gbps
- WireGuard: 1.2 Gbps
- OpenVPN: 210 Mbps
- L2TP: 280 Mbps
- Site-to-Site VPN Throughput
- Site Magic: 1.1 Gbps
- OpenVPN: 120 Mbps
- IPsec: 580 Mbps
- VPN Client Throughput
- WireGuard: 980 Mbps
- OpenVPN: 180 Mbps
- Networking
- Multi-WAN Load Balancing: Yes
- Shadow Mode (VRRP) High Availability: Yes
- LACP Port Aggregation: Yes
- Dynamic Routing
- Advanced QoS: Yes
- Multicast DNS (mDNS): Yes
- Advanced NAT: Yes
- Integrated RADIUS Server: Yes
- RADIUS over TLS (RadSec): Yes
- UniFi LTE Backup Failover: Yes
- Internet Quality Reporting: Yes
- Policy-based Routing: Yes
- Custom DHCP Server: Yes
- IPv6 ISP Support: Yes
- IGMP Proxy: Yes
- All Traffic Flows: Yes
- Hardware
- Max. Power Consumption: 82W
- Power Method: Universal AC input (100–240V AC)
- Power Supply: (2) Hot-swappable 150W CRPS
- Heat Dissipation: 280 BTU/hr
- Processor: 18-core ARM® v8.2 at 2 GHz
- Weight: 6.5 kg (14.3 lb)
- Enclosure Material: Aluminium CNC, SGCC steel
- Display: 1.3" touchscreen
- Management
- Ethernet: Yes
- Bluetooth: Yes
- LEDs
- Button: Factory reset
- ESD Protection: Air ±8kV, Contact ±4kV
- Operating Temperature: 0 to 40°C
- Humidity: 5 to 95% non-condensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel, SRRC
- Software
- Mobile App:
- UniFi iOS: Version 10.16.2 and later
- UniFi Android: Version 10.17.2 and later
Q: Is setup instant?
A: Yes.
