AI Theta
The first security camera for interior design
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns

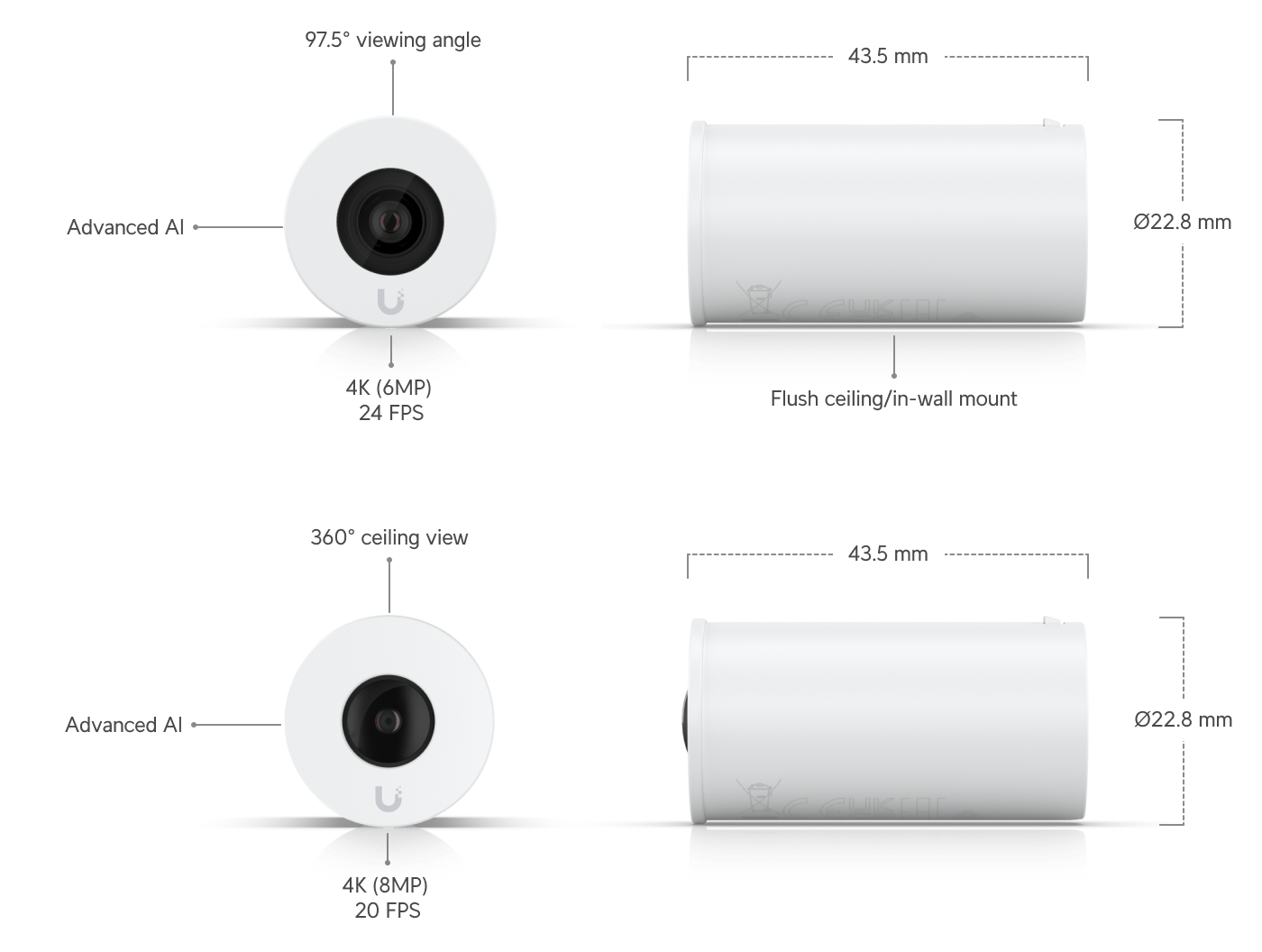

- Dimensions:
UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
UVC-AI-Theta-Lens/360: 22.8 x 43.5 mm (0.9 x 1.7”)
- Face Recognition: Yes
- License Plate Recognition: Yes
- Smart Detections: Yes (People, Vehicles, Animals)
- Resolution: 4K
- Field of View: H: 97.5°, V: 79.4°, D: 118.2°
- Audio: Two-way audio with optional AI Theta Audio
- Mounting: Wall, ceiling, flush mount (Included), Angle mount (Optional)
- Power Method: PoE
Performance
- Networking Interface: GbE RJ45 port
Video
- Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Max. Frame Rate: UVC-AI-Theta-Lens: 24 FPS, UVC-AI-Theta-Lens-360: 20 FPS
- Resolution: UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3), UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)
Optics
- Sensor: UVC-AI-Theta-Lens: 8MP CMOS, UVC-AI-Theta-Lens-360: 12MP CMOS
- Lens: Fixed focal length
Hardware
- Max. Power Consumption: 12.5W
- Supported Voltage Range: 37—57V DC
- Power Method: PoE
- Processor: Quad-core Arm® Cortex®-A53 based chip
- Weight:
UVC-AI-Theta-Hub: 330 g (11.6 oz),
UVC-AI-Theta-Hub mount: 35 g (1.2 oz),
UVC-AI-Theta-Lens/360: 15 g (0.5 oz),
UVC-AI-Theta-Lens/360 Flush mount: 12 g (0.4 oz)
- Enclosure Material:
UVC-AI-Theta-Hub: aluminum alloy,
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate,
UVC-AI-Theta-Lens/360 Flush mount: polycarbonate
- Mount Material:
UVC-AI-Theta-Hub: aluminum alloy,
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate,
UVC-AI-Theta-Lens/360 Flush mount: polycarbonate
- Button: (1) Factory reset
Environment
- Ambient Operating Temperature: -20 to 40° C (-4 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC
Q: Is setup instant?
A: Yes.
