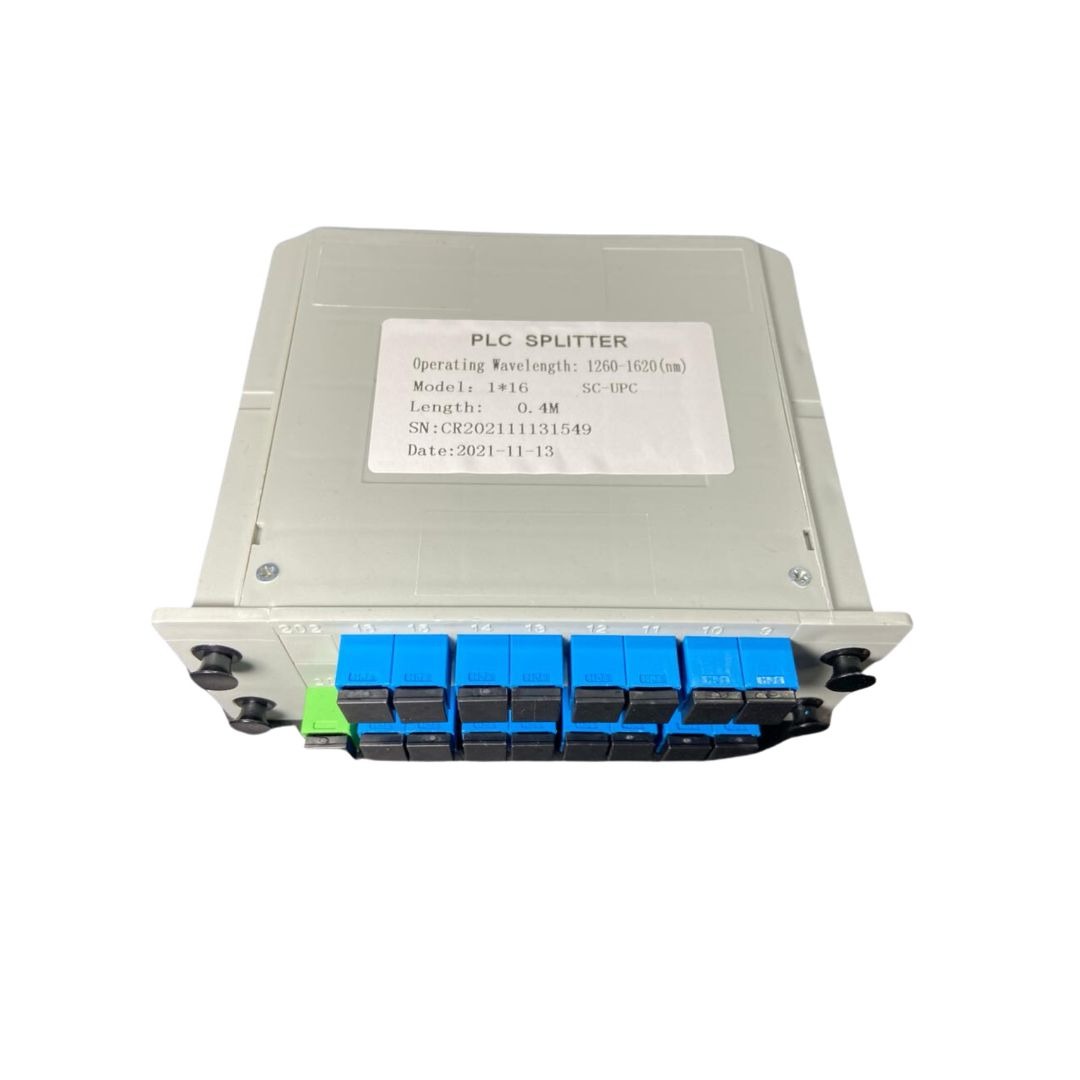

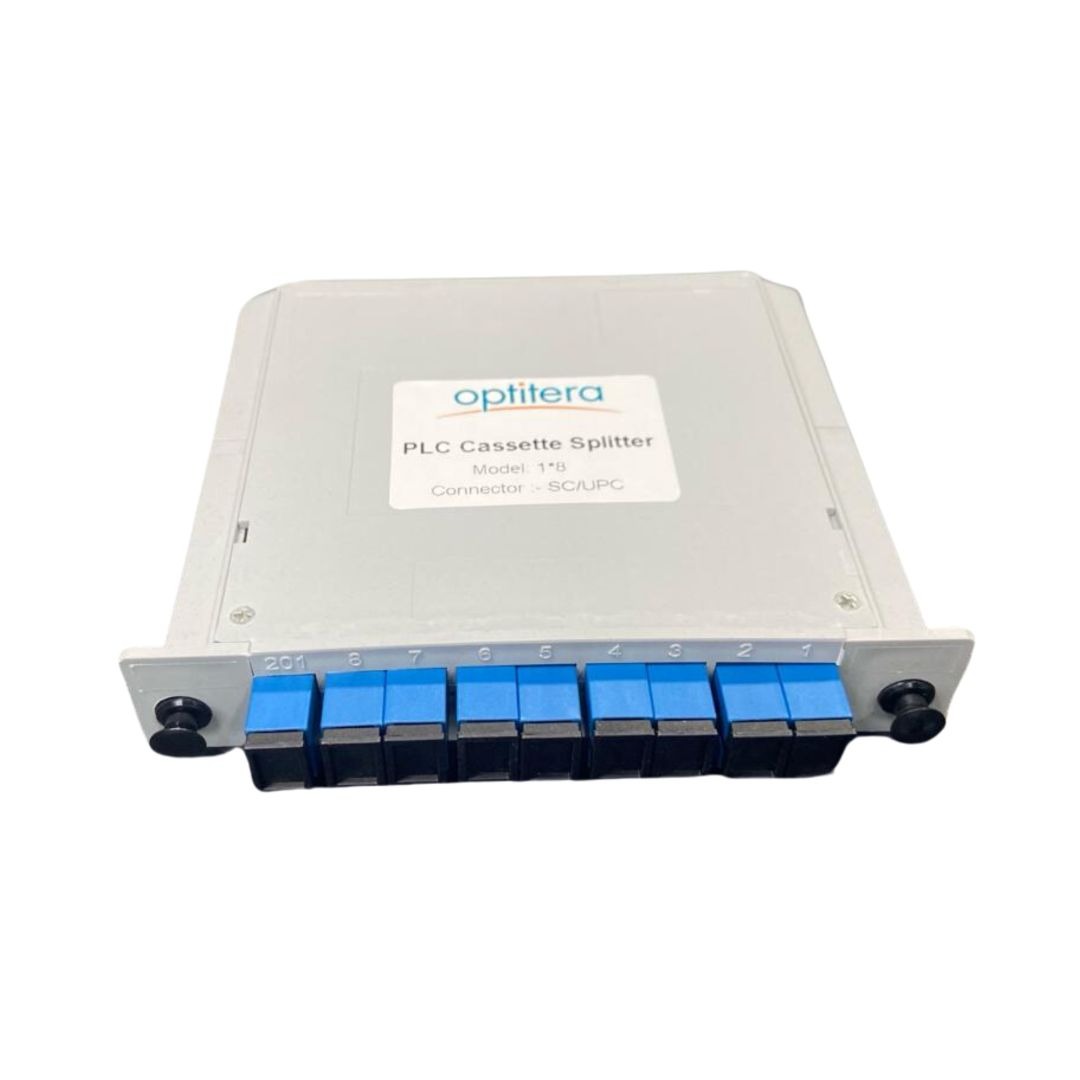

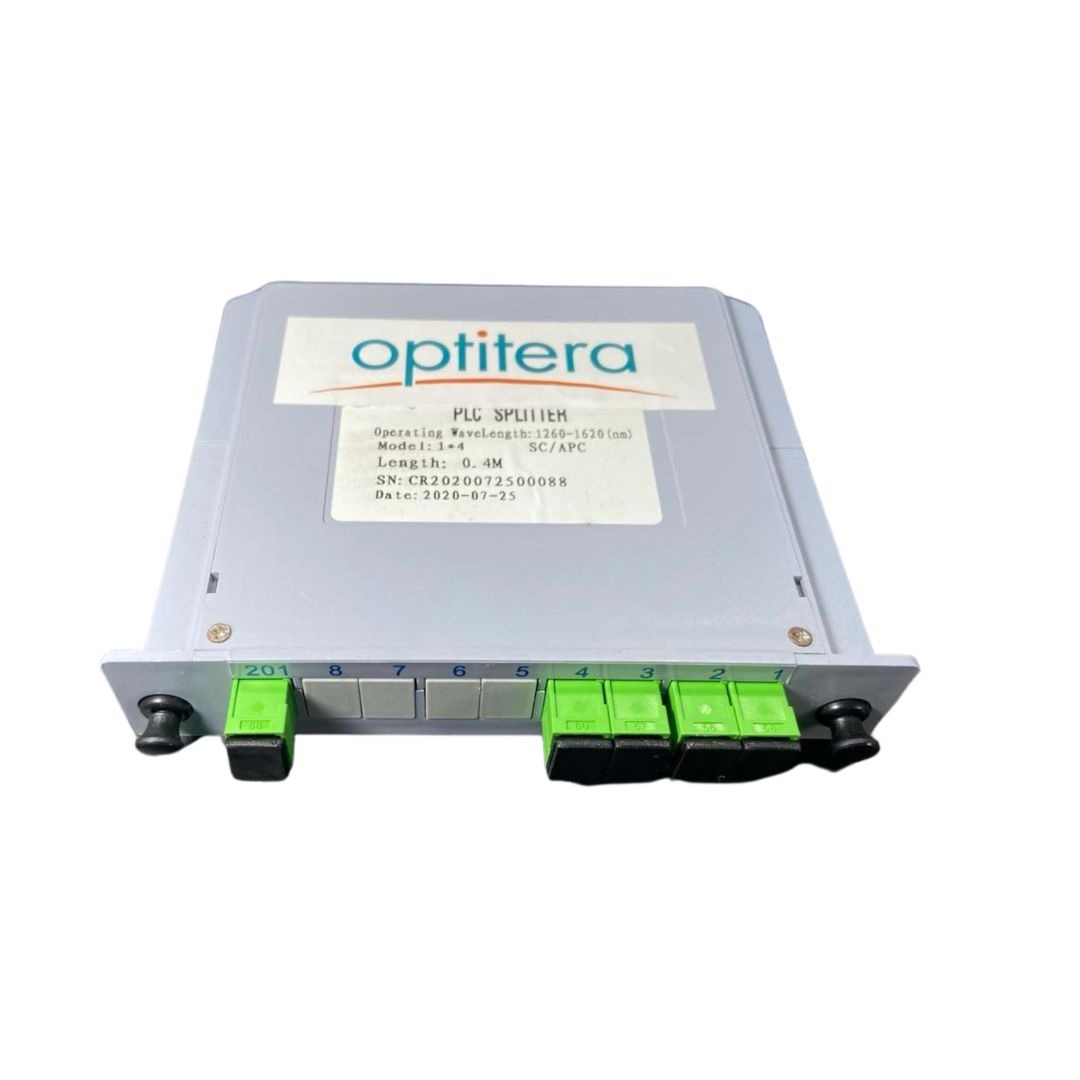

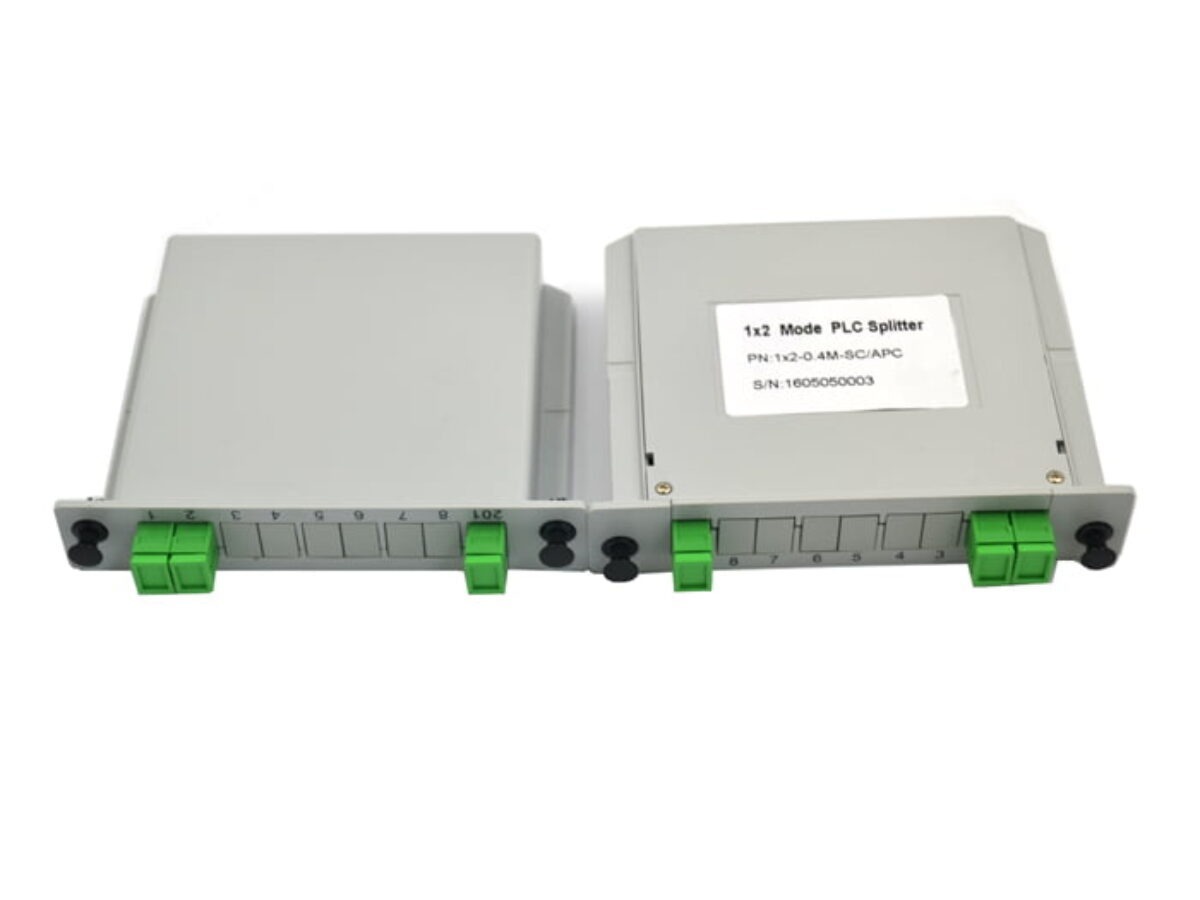

Optitera OPT-SC-18-SCUPC All Optitera PLC Casset
Optitera OPT-SC-18-SCUPC All Optitera PLC Casset
🔒 100% Secure & Encrypted Payments
⚡ Instant Service Activation
🚚 Fast & Reliable Delivery
💬 24/7 Expert Technical Support
✅ Trusted by Businesses Worldwide
🔄 Easy Returns
Technical Specifications – PLC Cassette (All Types)
- Technology Type: Planar Lightwave Circuit (PLC)
- Fiber Type: Single Mode (SM), G.657A1 / G.657A2
- Wavelength Range: 1260–1650 nm
- Operating Band: 1310 & 1550 nm
- Split Ratios Available: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
- Insertion Loss:
- 1×2: ? 3.8 dB
- 1×4: ? 7.5 dB
- 1×8: ? 10.8 dB
- 1×16: ? 13.5 dB
- 1×32: ? 17.5 dB
- 1×64: ? 21.0 dB
- Return Loss: ? 50 dB (UPC), ? 55 dB (APC)
- Uniformity: ? 1.5 dB (typical)
- PDL (Polarization Dependent Loss): ? 0.3 dB
- Wavelength Dependent Loss: ? 0.8 dB
- Directivity: ? 55 dB
- Input/Output Ports: Standard 2, 4, 8, 16, 32, 64 output ports
- Connector Types: SC/APC, SC/UPC, LC/APC, LC/UPC
- Cable Diameter: 0.9 mm / 2.0 mm / 3.0 mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non-condensing)
- Housing Type: ABS Box / LGX Cassette / Mini Module
- Compliance: ITU-T G.657A, GR-1209, GR-1221
- Applications: FTTX, PON, CATV, Data Centers, Telecom Networks
- Mounting: Fits standard ODF, 1U/2U rack mounts, wall-mount boxes
