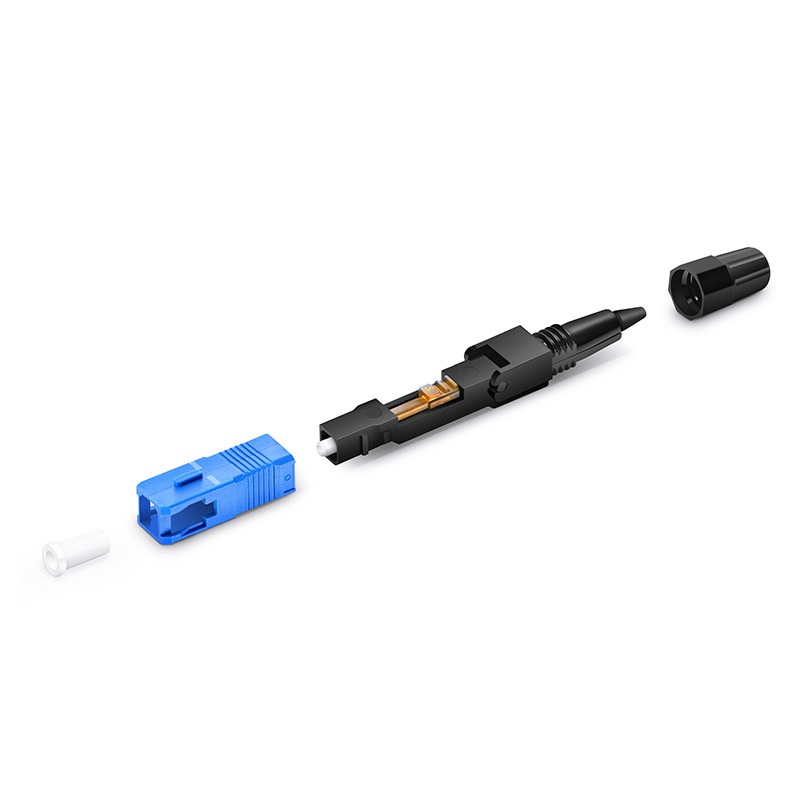

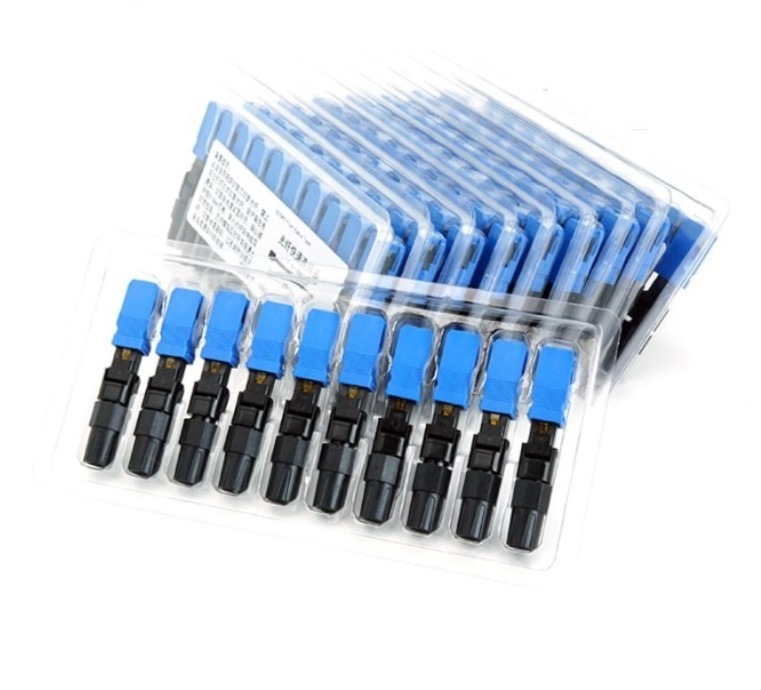

Pre-polished Ferrule Fast Connector

The SC/UPC fast connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field.

Proven mechanical splice technology ensures precision fiber alignment. A factory pre-cleaved fiber stub and proprietary index-matching gel combine to offer immediate low-loss termination for both single-mode and multimode optical fibers.

The Field Assembly Connector series is widely used for optical wiring inside buildings and floors for LAN and CCTV applications. With the expansion of FTTH, it has become the connector of choice for incumbents, municipalities, utilities, and alternative carriers.

Our Field Assembly Optical Connector series is available in SC, LC, and FC variants, supporting 250 µm to 900 µm, as well as 2.0 mm and 3.0 mm diameter single-mode and multimode fiber types, including multimode 62.5/125 µm and 50/125 µm. Single-mode versions are available with SPC or APC ferrules.

Specifications

• Connector Type: SC
• Polishing: UPC
• Fiber Mode: 9/125 µm Single Mode
• Cable Diameters: 0.9 / 2.0 / 3.0 mm
• Dimension: 50 mm
