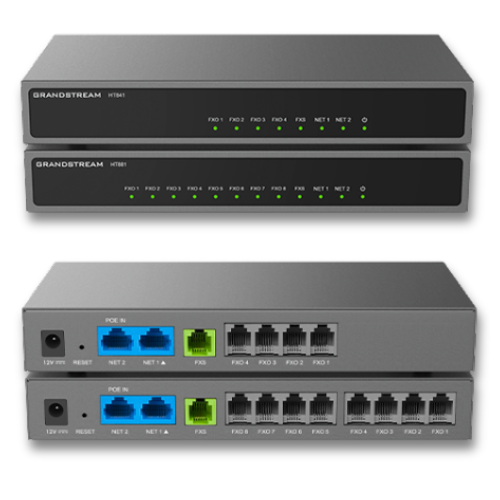

Analog FXO Gateway The HT841/881 FXO gateway series enables businesses of all sizes to create an easy-to-deploy VoIP solution. These FXO gateways offer the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible.
Supports 3 SIP profiles through 1 FXS port and 4/8 FXO ports
High-performance NAT router
Lifeline support (FXS port will be hard-relayed to FXO port) in case of a power outage
3-way voice conferencing per port
Automated & secure provisioning options using TR069
Supports T.38 Fax for reliable Fax-over-IP
Failover SIP server automatically switches to secondary server if the main server loses connection
Strong AES encryption with security certificate per unit
LINES:-
3 lines
AUDIO CONFERENCING:-
3-Way Voice Conferencing Per Port
TELEPHONE INTERFACES:-
HT841: 4 RJ11 FXO ports/1 RJ11 FXS HT881: 8 RJ11 FXO ports/1 RJ11 FXS
NETWORK INTERFACES:-
Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support Note: Up to 1000Mbps in Bridge mode, up to 100Mbps in NAT mode
LED INDICATORS:-
POWER, NET1, NET2, FXS, FXO
TELEPHONY FEATURES:-
Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference
FAX OVER IP:-
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
