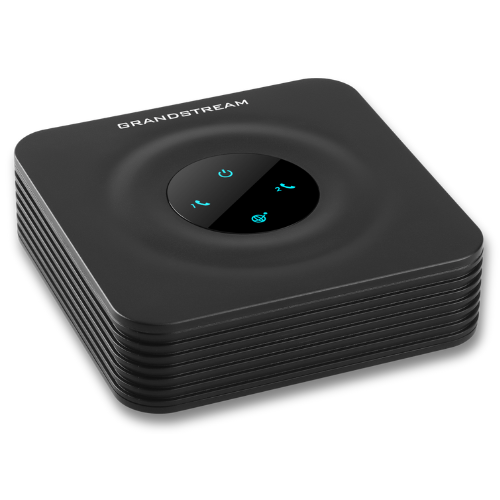

2-Port ATA The HT802 is a compact 2-port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution.
Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
Supports 3-way voice conferencing
Failover SIP server automatically switches to secondary server if main server loses connection
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
LINES:-
2 lines
AUDIO CONFERENCING:-
3-Way Voice Conferencing
TELEPHONE INTERFACES:-

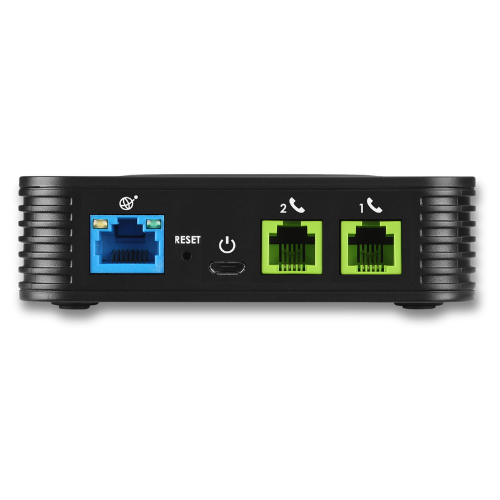

Two (2) RJ11 FXS ports
NETWORK INTERFACES:-
One (1) 10/100Mbps auto-sensing ethernet ports (RJ45)
LED INDICATORS:-
POWER, INTERNET, PHONE1, PHONE2
TELEPHONY FEATURES:-
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
FAX OVER IP:-
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
