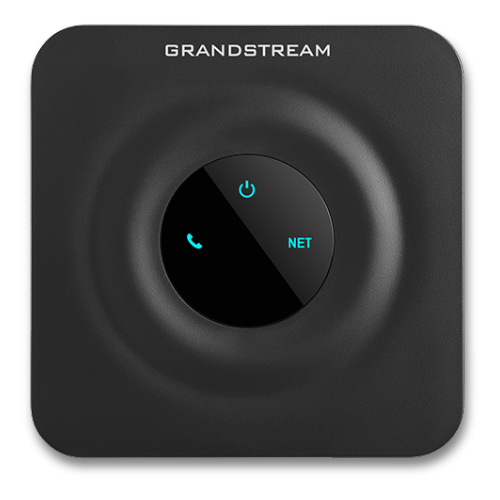

Easy-to-Use 1-Port ATA The HT801 v2 is a compact single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution.
Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
LED Indicators - POWER, NET, PHONE
Supports 3-way voice conferencing
Failover SIP server automatically switches to secondary server if main server loses connection
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
LINES:-
1 line
AUDIO CONFERENCING:-
3-Way Voice Conferencing
TELEPHONE INTERFACES:-
One (1) FXS port
NETWORK INTERFACES:-
One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
LED INDICATORS:-
POWER, NET, PHONE
TELEPHONY FEATURES:-
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
FAX OVER IP:-
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
