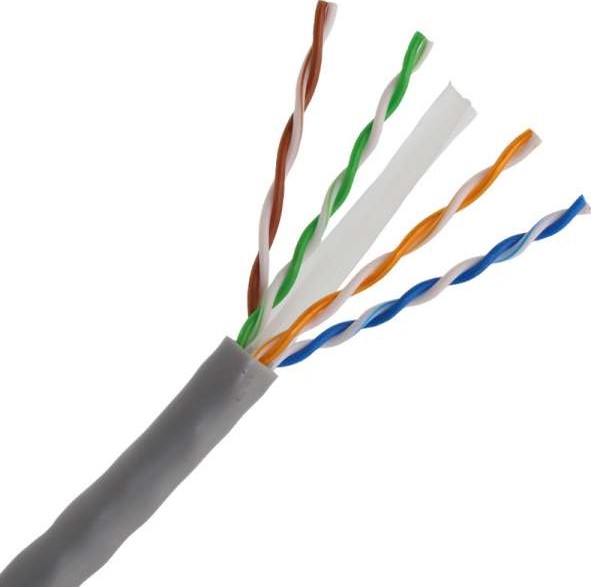

AIRMAX Cat6 UTP Cable – 305mtr 23AWG Blue Category 6 solution is guaranteed to exceed specifications as set down in International standards.Our AIRMAX CAT6 solution comprises Category 6 component compliant patch panels, keystones and patch cords. When combined with AirPro’s Category 6 UTP cable, an end-to-end channel exists that maximises data throughput and provides headroom for all future technologies operating beyond one Gigabit.
| Frequency (MHz) | Insertion Loss (dB / 100m) | NEXT (dB) | Return Loss (dB) |
|---|---|---|---|
| 1 | 1.8 | 78.0 | 37.8 |
| 4 | 3.0 | 76.0 | 36.5 |
| 10 | 5.2 | 70.0 | 31.0 |
| 16 | 6.8 | 68.0 | 31.0 |
| 20 | 7.6 | 64.0 | 31.0 |
| 31.25 | 9.3 | 62.5 | 30.0 |
| 62.5 | 13.2 | 60.0 | 30.0 |
| 100 | 18.1 | 57.0 | 29.0 |
| 200 | 26.1 | 52.5 | 27.0 |
| 250 | 28.9 | 50.0 | 25.1 |
| 300 | 31.8 | 46.0 | 23.4 |
| 400 | 36.5 | 43.0 | 21.9 |
| 500 | 41.8 | 42.0 | 20.6 |
